Description
Hightlights
- Fine Microstepping Resolution
- Improved Positioning Accuracy
- Minimized Resonance Effects
- Smooth Torque Generation
- Reduced Noise and Vibration

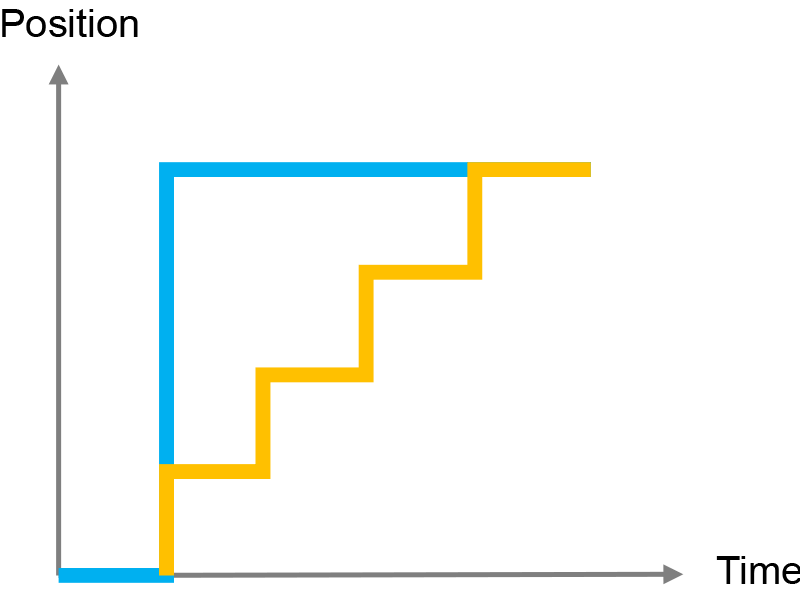

Full Step
Micro step Higher resolution and help to reduce vibration and noise
Mode | Microstep divider | Pulse per revolution |
500 unit | 1 | 500 |
2 | 1,000 | |
5 | 2,500 | |
10 | 5,000 | |
25 | 12,500 | |
50 | 25,000 | |
125 | 62,500 | |
250 | 125,000 |
Mode | Microstep divider | Pulse per revolution |
360 unit | 3 | 1,500 |
4 | 2,000 | |
6 | 3,000 | |
12 | 6,000 | |
18 | 9,000 | |
24 | 12,000 | |
36 | 18,000 | |
72 | 36,000 |
Mode | Microstep divider | Pulse per revolution Step Angle: 0.72° per step |
2’s unit | 8 | 4,000 |
16 | 8,000 | |
20 | 10,000 | |
40 | 20,000 | |
80 | 40,000 | |
100 | 50,000 | |
160 | 80,000 | |
200 | 100,000 | |
400 | 200,000 | |
800 | 400,000 |

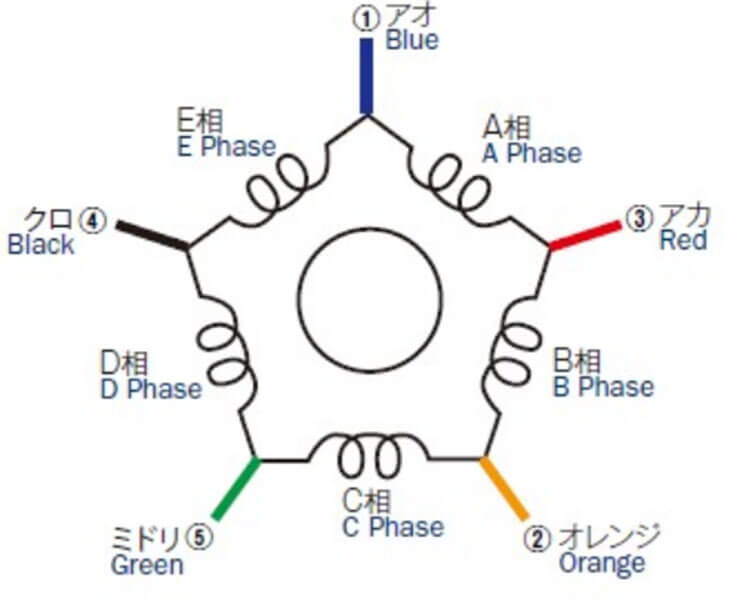

5-Phase
Rotary Stage
Pitch of ball screw
Specification:

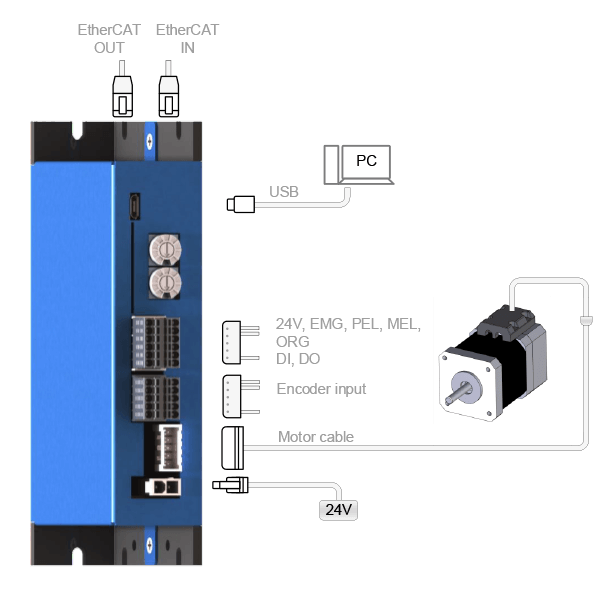

EtherCAT | |
Data transfer medium | Ethernet 100BASE-TX,CAT5 Shielded Ethernet cable |
Communication type | DC |
Distributed Clock | 0.5/1/2/4 ms |
ID switch | 8 bits |
CiA402 device profile | CSP,PP,Home |
5 Phase Driver | |
Drive model | 5-phase Constant-current |
Motor Type | 5-phase 0.36° and 0.72° step angle |
Micro step | 1,2~800 dividers Configured by SDO |
Resolution | 500 1,000~400,000 pulse/revolution Configured by SDO |
Current setting | STP-K510A-Max. 0.75A |
Encoder input | EA/EB/EZ, Max. 6.5MHz 4xAB |
I/O input signal | PEL,MEL,ORG, and EMG,2xDI,1xDO(for brakes,250mA) |
Position control | Incremental/Absolute mode,Data range 32bits |
Homing mode | EL, ORG and EZ |
LED indicator | PWR,RUN,ERR,PEL,MEL,ORG,INP,SVON,ALM,EMG |
General | |
Power input | 24 VDC±10% for main power 24 VDC±10% for I/O isolated interface |
Power consumption | 3.1W typical(130mA/ 24VDC) no load |
Working temperature | 0°C~50°C(32°F~122°F) ambient temperature with air flow |
Storage temperature | -20°C~80°C(-4°F~176°F) |
Humidity | 85%(non-condensing @60°C) |
Size | L-75 x W-140 x H-30 mm |

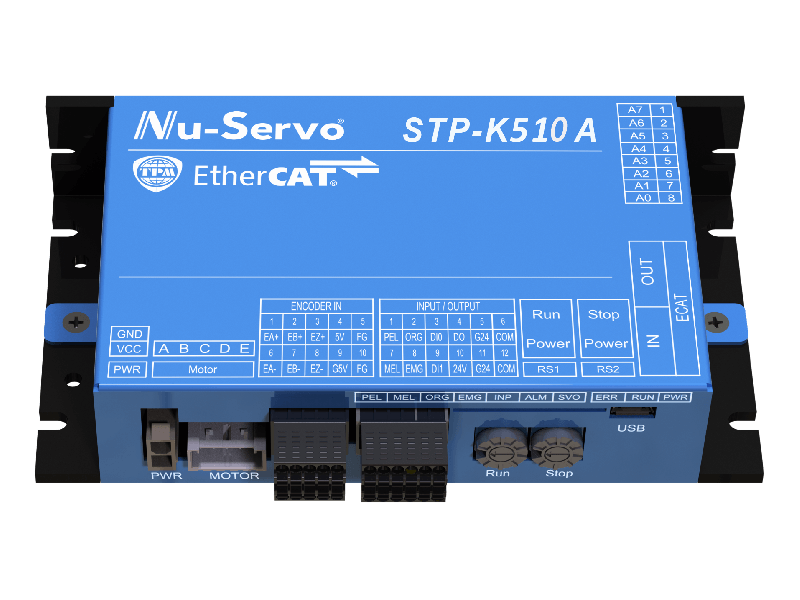

Introducing our EtherCAT 5-phase micro-step drives, engineered to redefine precision and efficiency in motion control applications. Designed for seamless integration into advanced automation systems, these drives deliver unparalleled accuracy and smooth operation. Ideal for robotics, semiconductor manufacturing, optical active alignment, and more, they ensure precise positioning and enhanced performance. With robust EtherCAT connectivity, our drives enable real-time communication and synchronization, optimizing productivity and reliability in diverse industrial environments. Experience superior motion control solutions with EtherCAT 5-phase micro-step drives, setting new standards in precision engineering.
