Motionnet®

Motionnet®Features

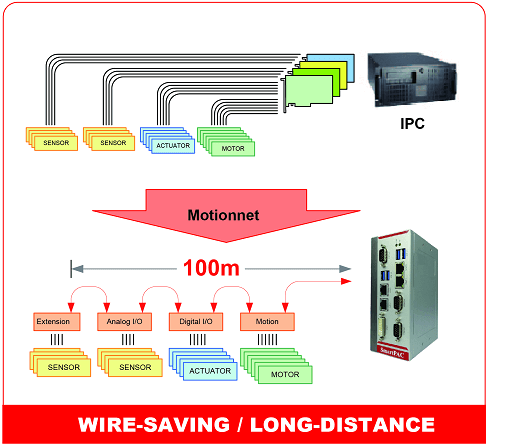

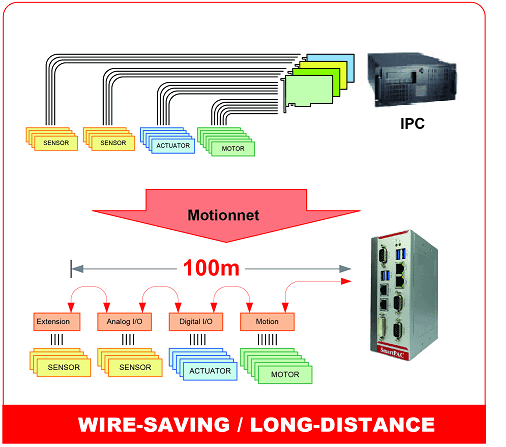

Wire-Saving

One Master chip supports 64 slave devices including digital input/output, analog input/output, pulse counter, temperature and motion control modules. Through Ethernet cables, slave devices are connected in a linear topology. It reduces a lot of wiring complexity and cable cost.

Long-distance

The maxium distance of is 100M with remote controlling.

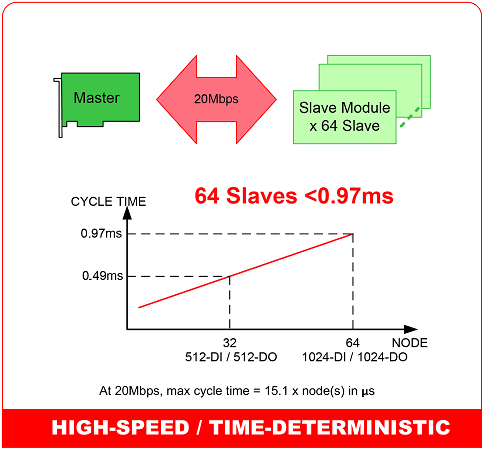

High-speed

is a high speed serial communication system with data transfer rate at up to 20 Mbps.

Time-deterministic

The data change time of the specified module of the two commands can be predicted by a simple formula. Due to its time determinism, this is a very important real-time application requirement problem, providing a perfect framework for factory and machine automation systems.

feature1
feature2

System Configurations

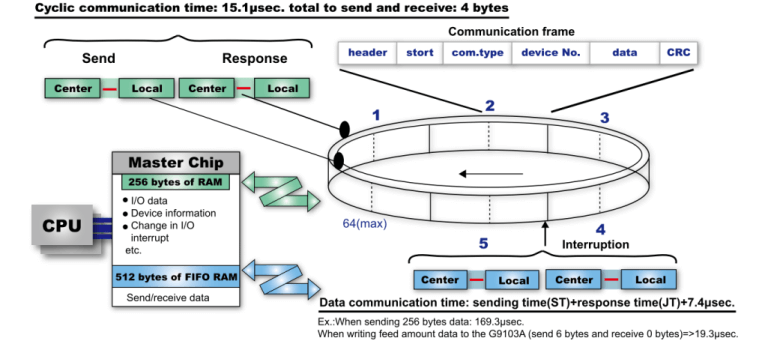

Motionnet-System

transfers 4 bytes of data in 15.1μsec for cyclic communication. The cyclic communication command is executed every clock cycle processing 4 bytes of the reserved memory spaces for specific commands. Others are transmitted in a communication frame.
