Configuration of ETH-L132-D1 with Host PC

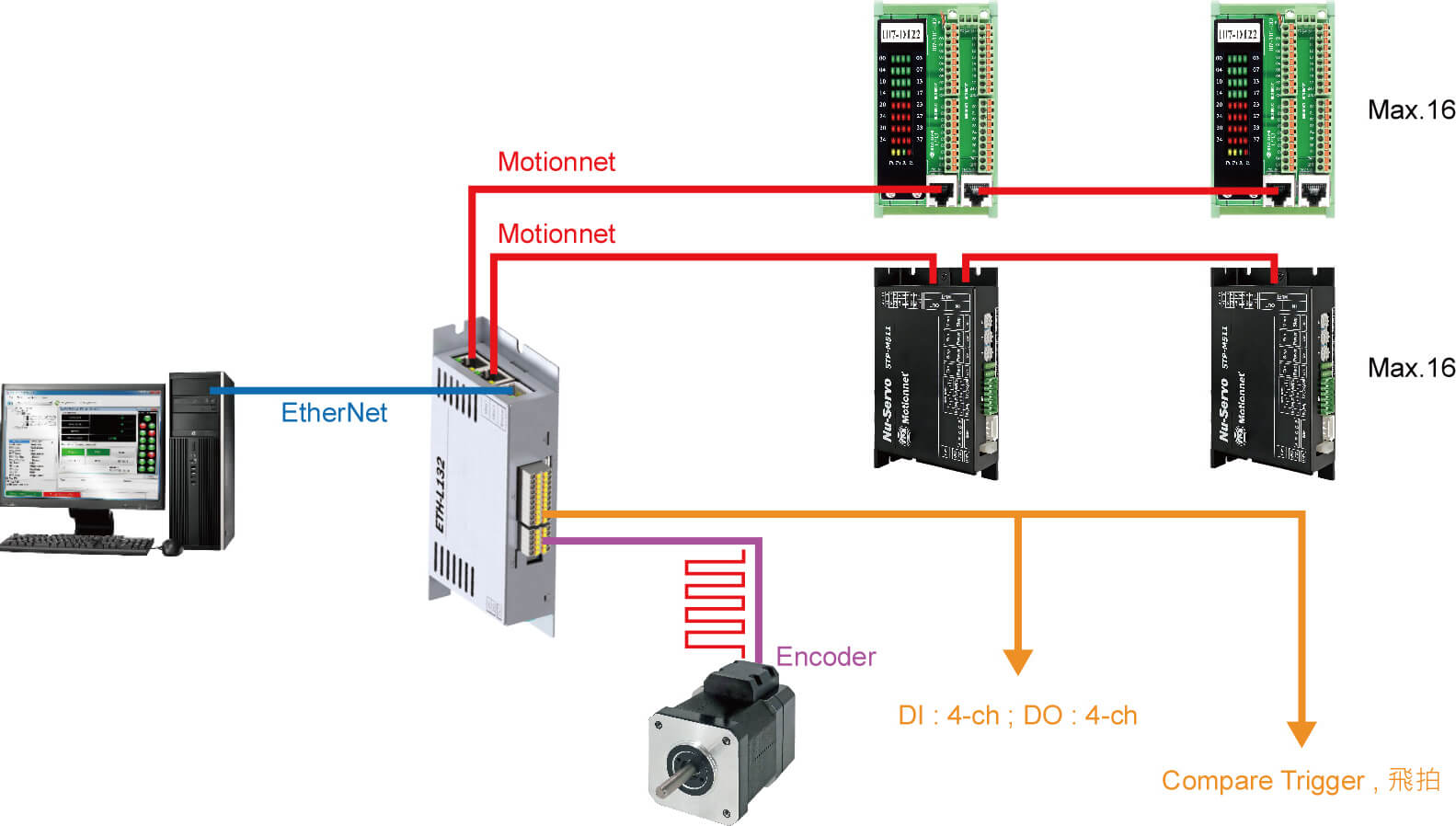

Explanation of ETH-L132-D1 Features:

• Ethernet-Based Motionnet Controller
• No software installation required; simply assign an IP address
• Offers timed I/O and motion control applications
   – I/O slave stations; Max 16
   – 1-Axis slave stations; Max 16
• High scalability
• Ideal for use with small industrial PCs in space-constrained environments

Domain Configuration:

• ETH-L132-D1
       – Default IP: 192.168.0.10

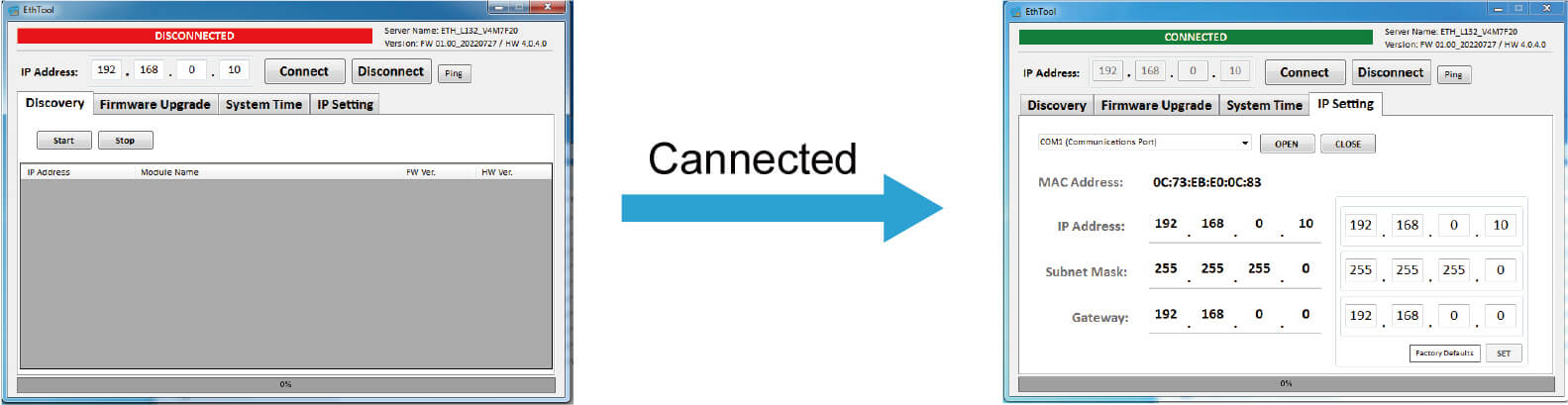

       – Configuration and IP Modification Using Ethtool
              – After installing the tool, locate it in the root directory: C:\TPM\Bin
             – After the connection, access the “IP Setting” option

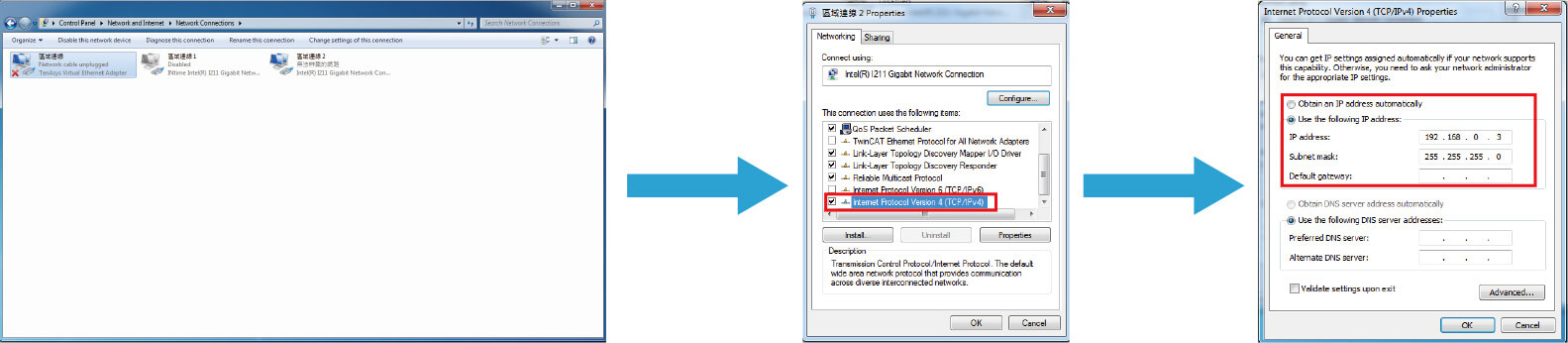

• HostPC
       – Open Ethernet Network Settings
              – Internet Protocol Version 4 (TCP/IPv4)
                      – Set IP Address: 192.168.0.xxx (Ensure it’s different from ETH-L132D1’s IP)
                      – Subnet Mask: 255.255.255.0

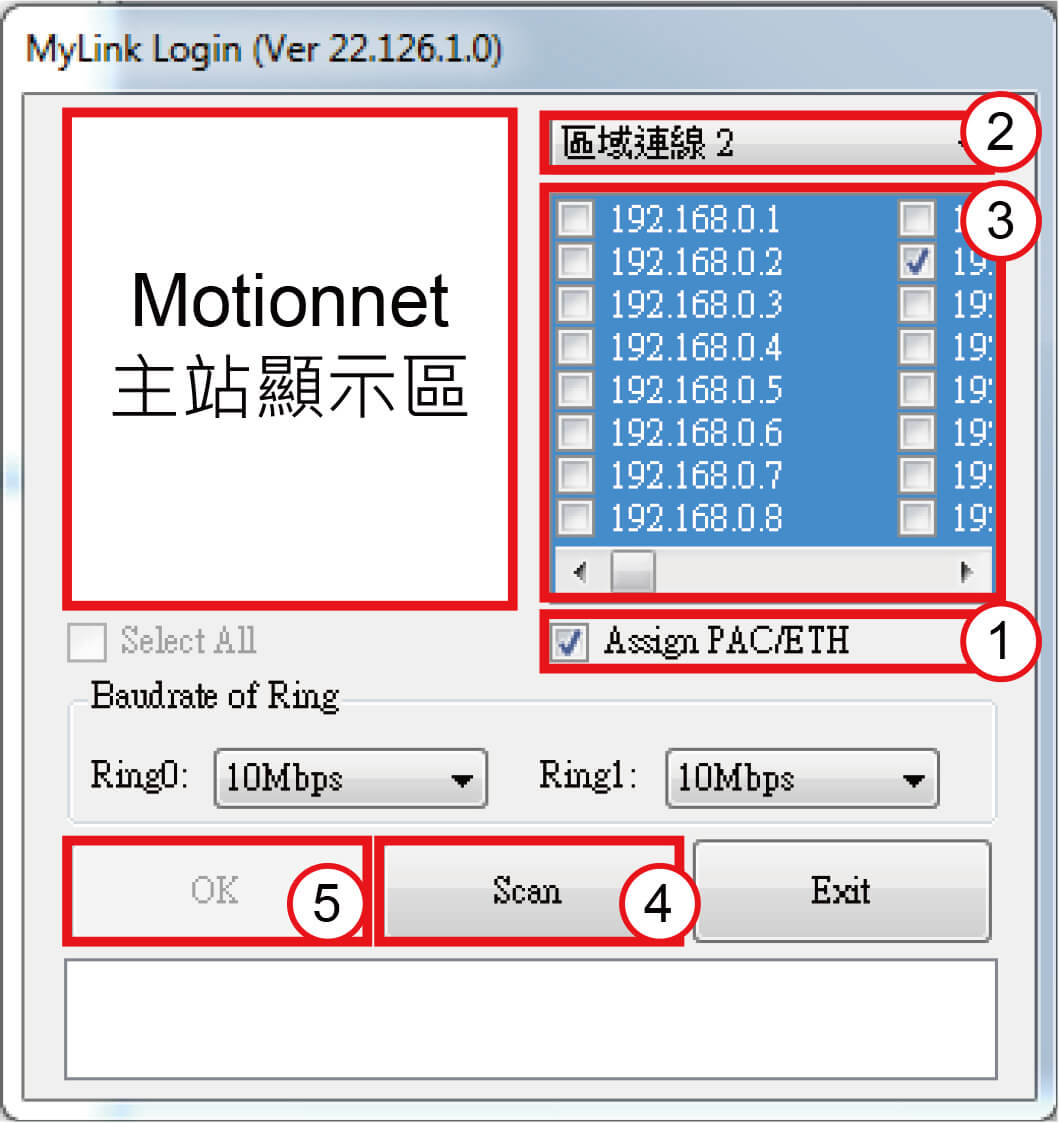

MyLink Verification:

• To start MyLink
       – Check “Assign PAC/ETH”
       – Choose the regional connection
       – Check “Connect to IP Address” (192.168.0.10)
       – Click “Scan”
                      – If the settings are correct, ETH-L132D1 will appear in the master station area
       – Check the main station ETH-L132D1
       – Click “OK” to access the MyLink operation page
