Function Description of 104-TR216

Primary Functions:

• The hardware wiring method provides 1 channel to split into 8 channel signal outputs
• Mainly split and distribute signals
     – Trigger out
          – Single-end 5V
          – Differential 5V
     – Encoder
          – Single-end 5V
          – Differential 5V
• Interfaces after splitting
     – Supported Output Interfaces
          – Single-end 5V, Model: 104-TR216-DSE_5V
          – Single-end 24VModel: 104-TR216-DSE_24V
          – Differential 5VModel: 104-TR216-DSE_DIFF

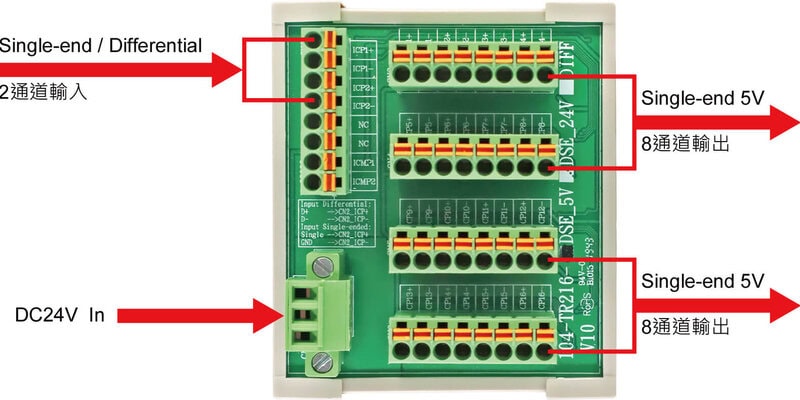

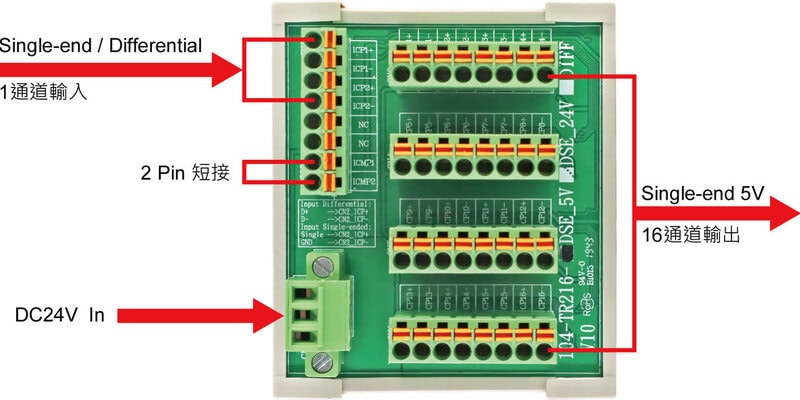

104-TR216-DSE_5V

• Suitable for trigger splitting and differential signal to single-ended conversion
• 2 channels of single-ended/differential signal input
• 2 x 8 channels of 5V single-ended output

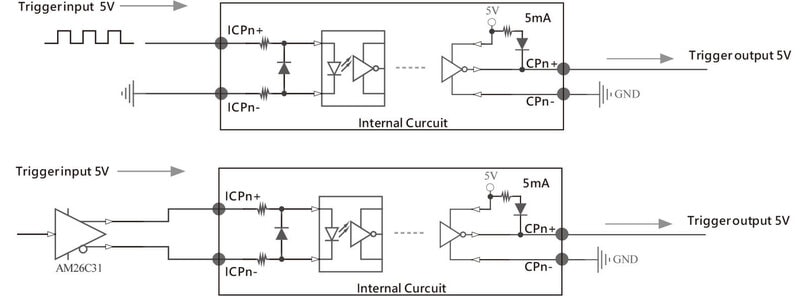

• The circuit diagram is as follows

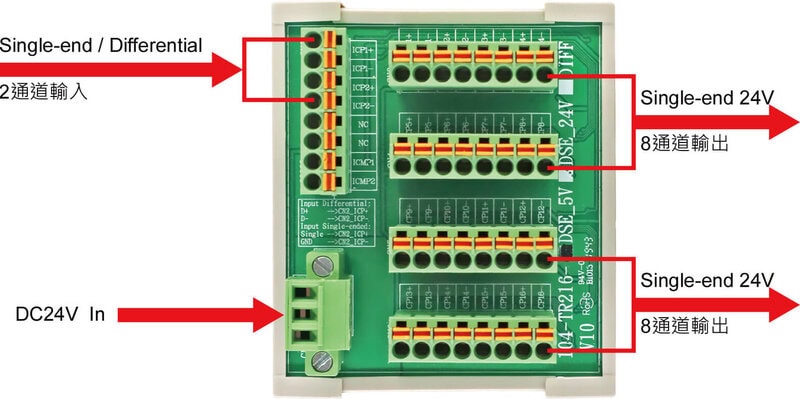

104-TR216-DSE_24V

• Suitable for Trigger splitting and converting differential signals to single-ended
• Increases the output voltage to 24V
• 2 channels of single-ended/differential input
• 2 x 8 channels of single-ended 24V output

• The circuit diagram is as follows

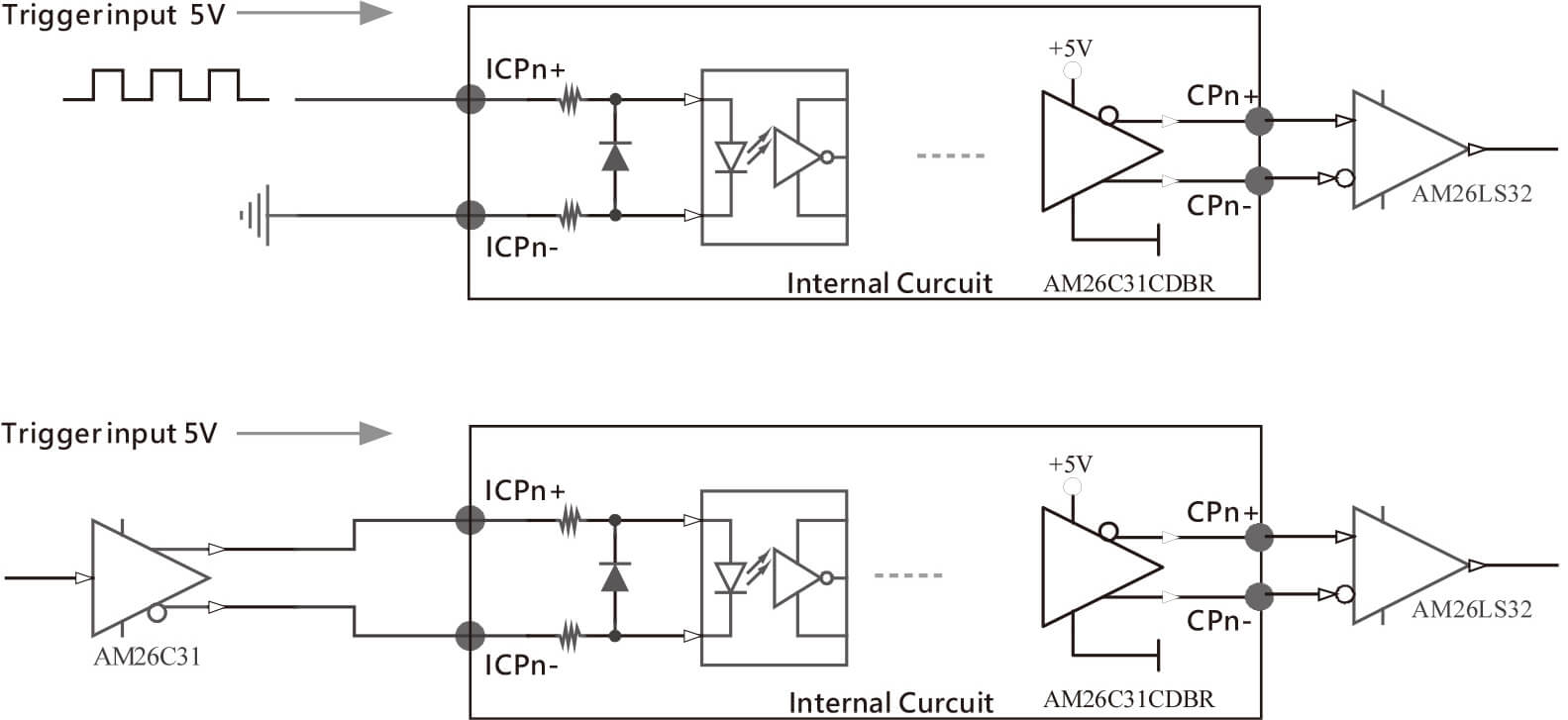

104-TR216-DSE_DIFF

• Designed for Encoder splitting and converting single-ended signals to differential
• 2 channels of single-ended/differential input
• 2 x 8 channels of differential output

• The circuit diagram is as follows
