MyLink Tool - Axis Parameter Storage and Retrieval Function 4-Axis Model

MyLink Tool - 4-Axis Parameter Storage and Retrieval Function

Main Functions:

  • Store and backup configuration parameters for 4-axis modules
  • Parameters that can be backed up include

-Homing settings

-IO functions/logic

-Pulse In/Out configurations

  • These parameters can be directly accessed and utilized by software developers in their programs
  • When installing the same machine on-site, personnel can directly reference these settings
IO功能邏輯_MyLink工具-4軸參數儲存及讀取功能
Pulse In Out設定_MyLink工具-4軸參數儲存及讀取功能

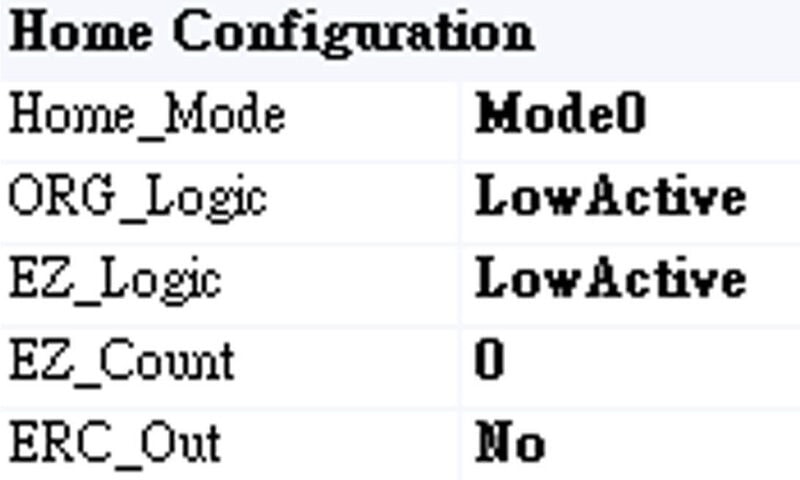

原點復歸設定_MyLink工具-4軸參數儲存及讀取功能

Main Targets:

  • For 4-axis series: Backup is available on the PC side

-106-M304T

MyLink Tool - 4-Axis Parameter Backup Procedure

  1. Launch MyLink to enter the main operating screen
  2. Select the axes you wish to work with

-Configure axis parameters, including:MIO logic settings: ALM, +/-EL, INP, SD, and more

-Homing settings

-Choose the homing mode

-Configure ORG/EZ/ERC settings

-Pulse In/Out settings

-Select the pulse output interface

-Specify the encoder input source and interface

-Determine whether values should be in the negative direction

-Once you’ve completed the parameter settings for all four axes, save your configurations

*Note: The above settings should align with the real-time setup of each axis

MyLink工具-4軸參數儲存功能步驟

3.After completing the parameter configuration, click on the “File” in the toolbar, and select “Backup Config to…

MyLink工具- 4軸參數儲存功能步驟-1

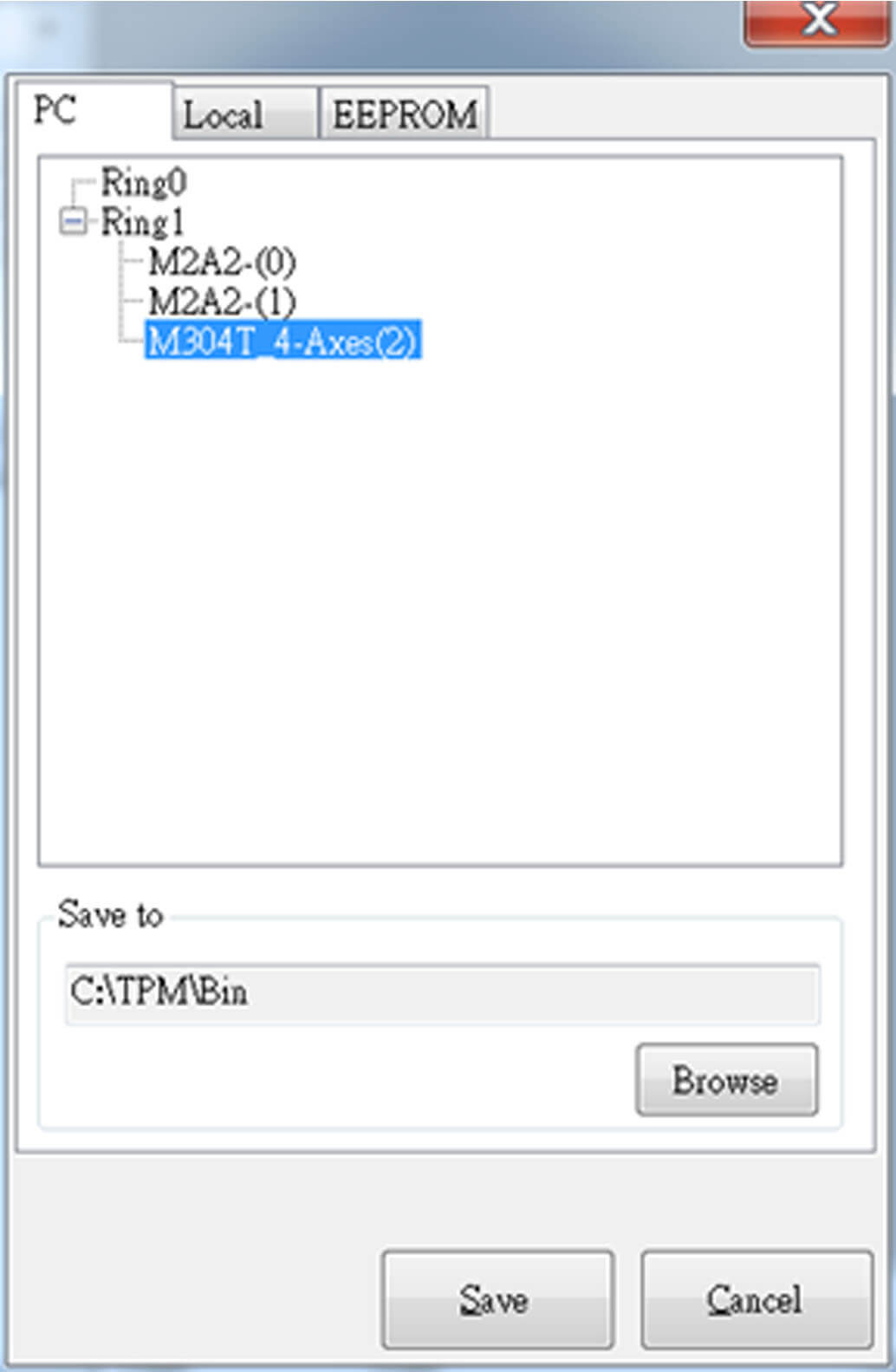

4.Select the pre-saved backup location

Step 1 – Click the path

Step2 – Save

The parameter files (ini, pccfg) will be saved in the specified folder at C:\TPM\Bin

MyLink工具- 4軸參數儲存功能步驟-2

Steps for MyLink Tool - 4-axis Parameter Reading Function

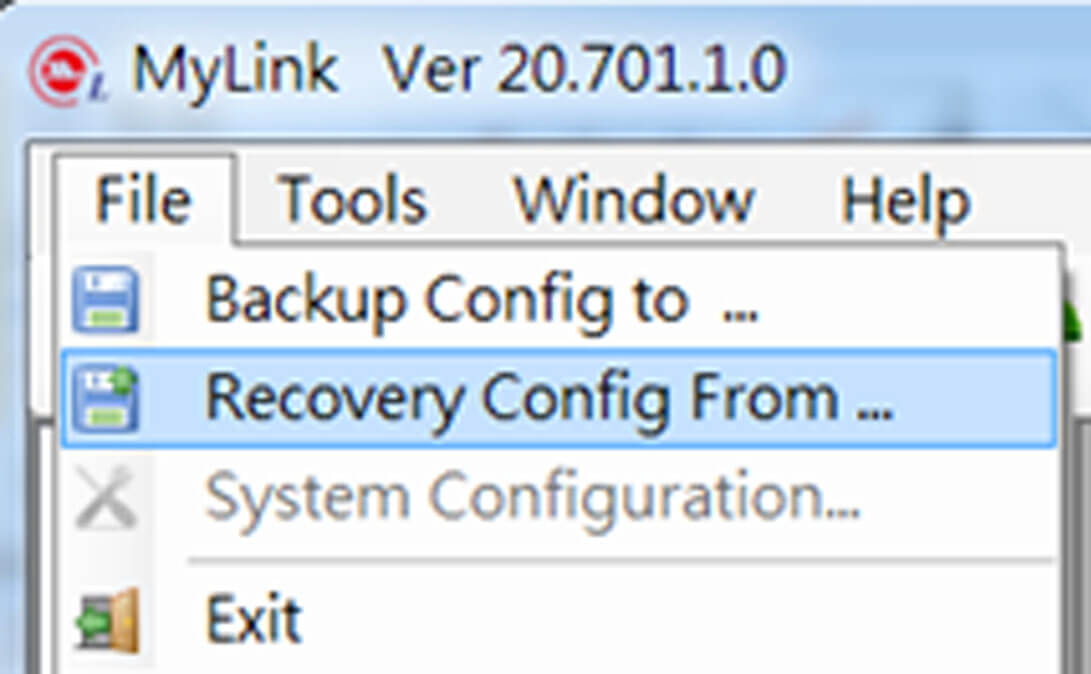

1.On the MyLink main operating screen, click “File” in the toolbar, and select “Recover Config From…”

MyLink工具-4軸參數讀取功能步驟-1

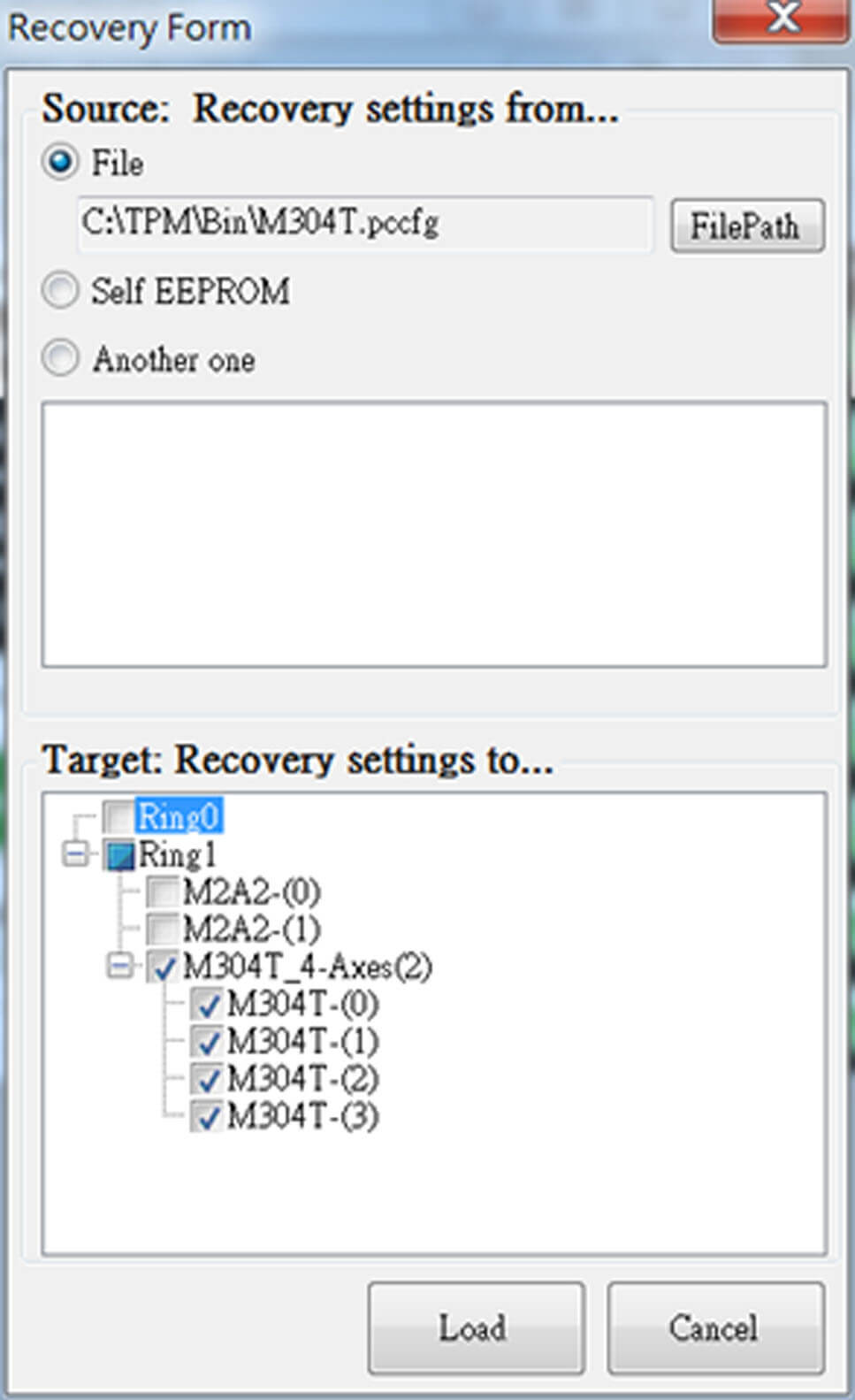

2.Select the source for reading

MyLink工具-4軸參數讀取功能步驟-2

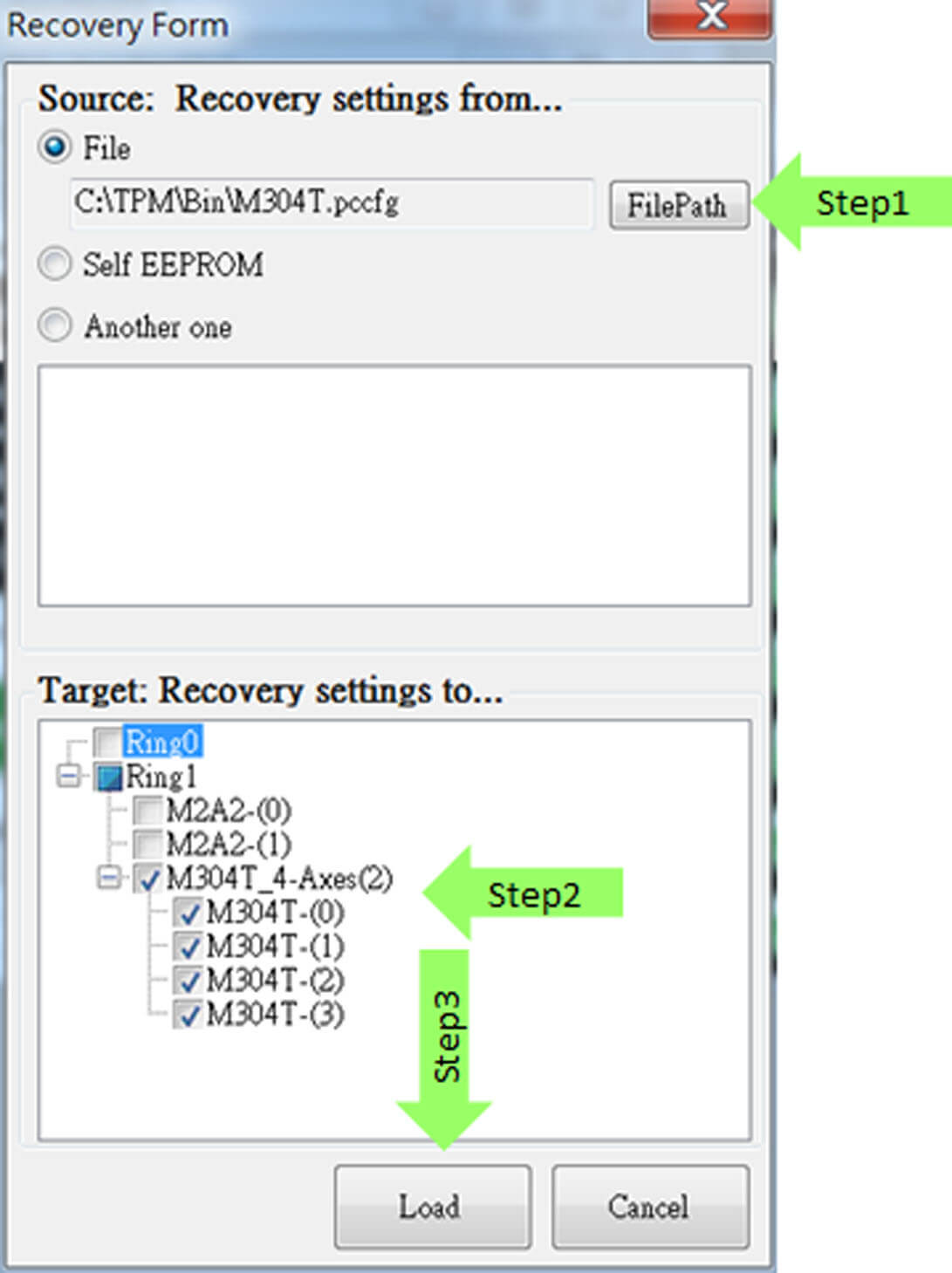

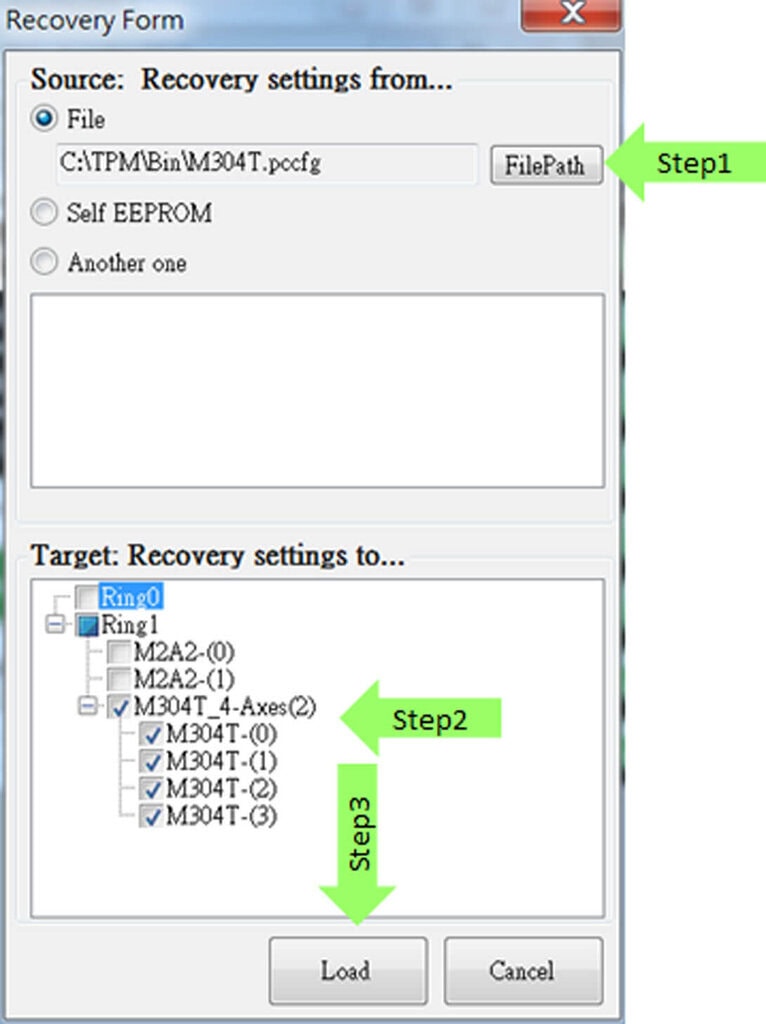

3.From cfg file

Step1 – Read the parameter file

Step2 – Choose the file you want to load

Step3 – Load

MyLink工具-4軸參數讀取功能步驟-3
