207-C344F(4-CH)

Feature

4-channel Encoder input: 4-ch EA and EB ( 2-ch include EZ)
Encoder input frequency: Max. 6.5 MHz for 4xAB mode
Encoder mode: 4xAB ; CW/CCW ; Pulse/DIR
CMP Trigger out: Line drive output

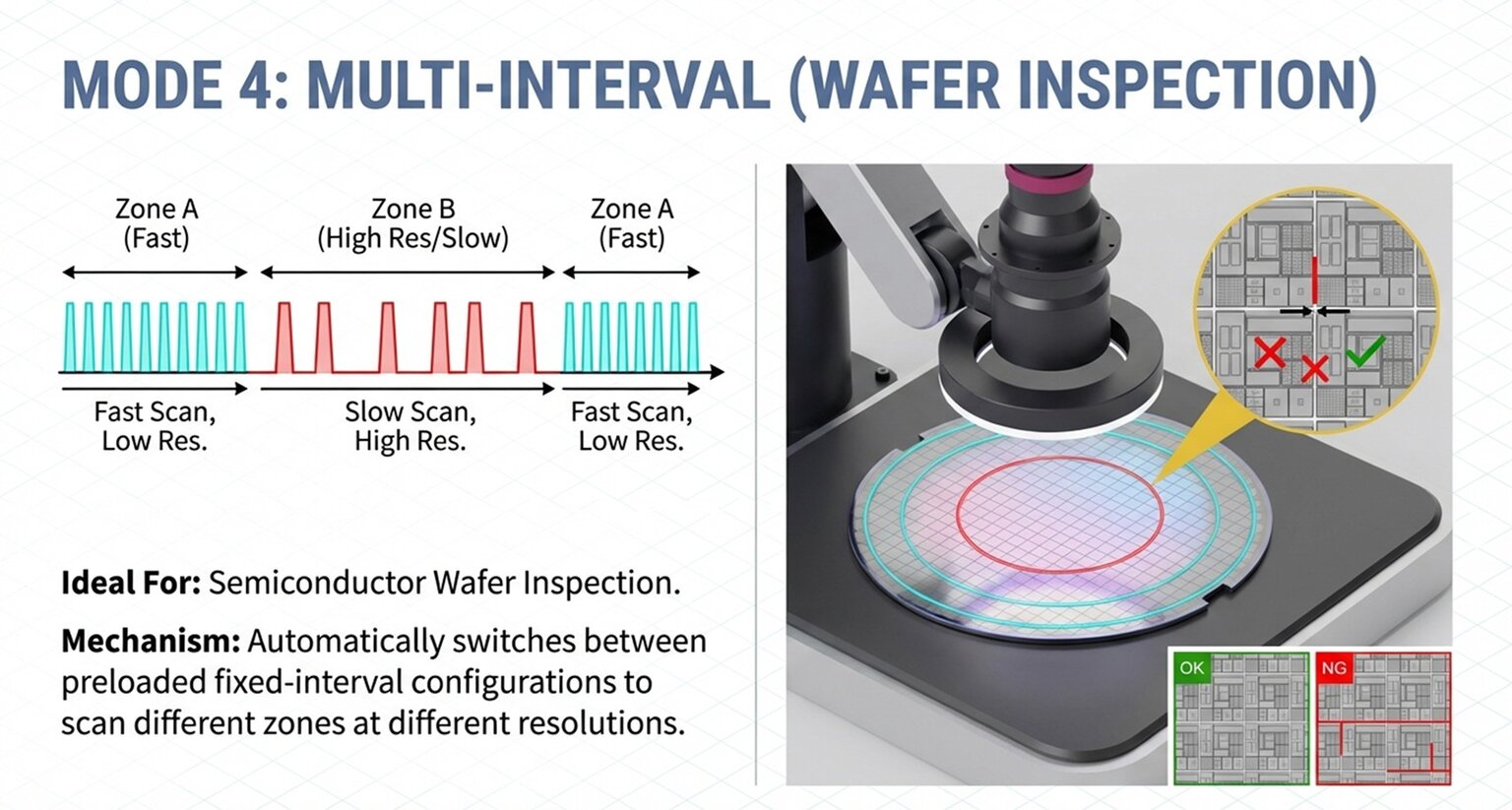

Trigger mode: Interval, Table and Toggle

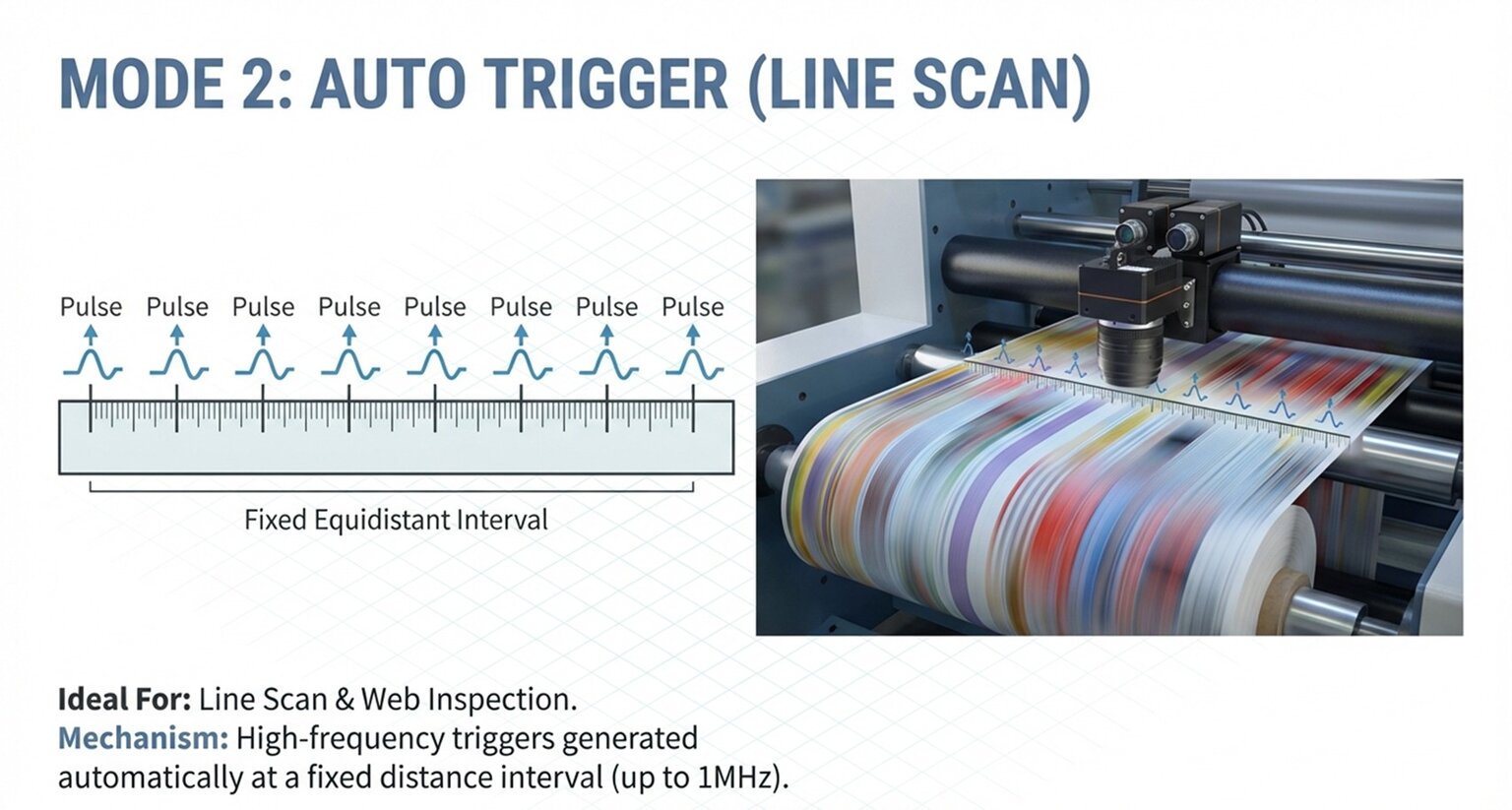

- Auto Trigger Max. 1MHz

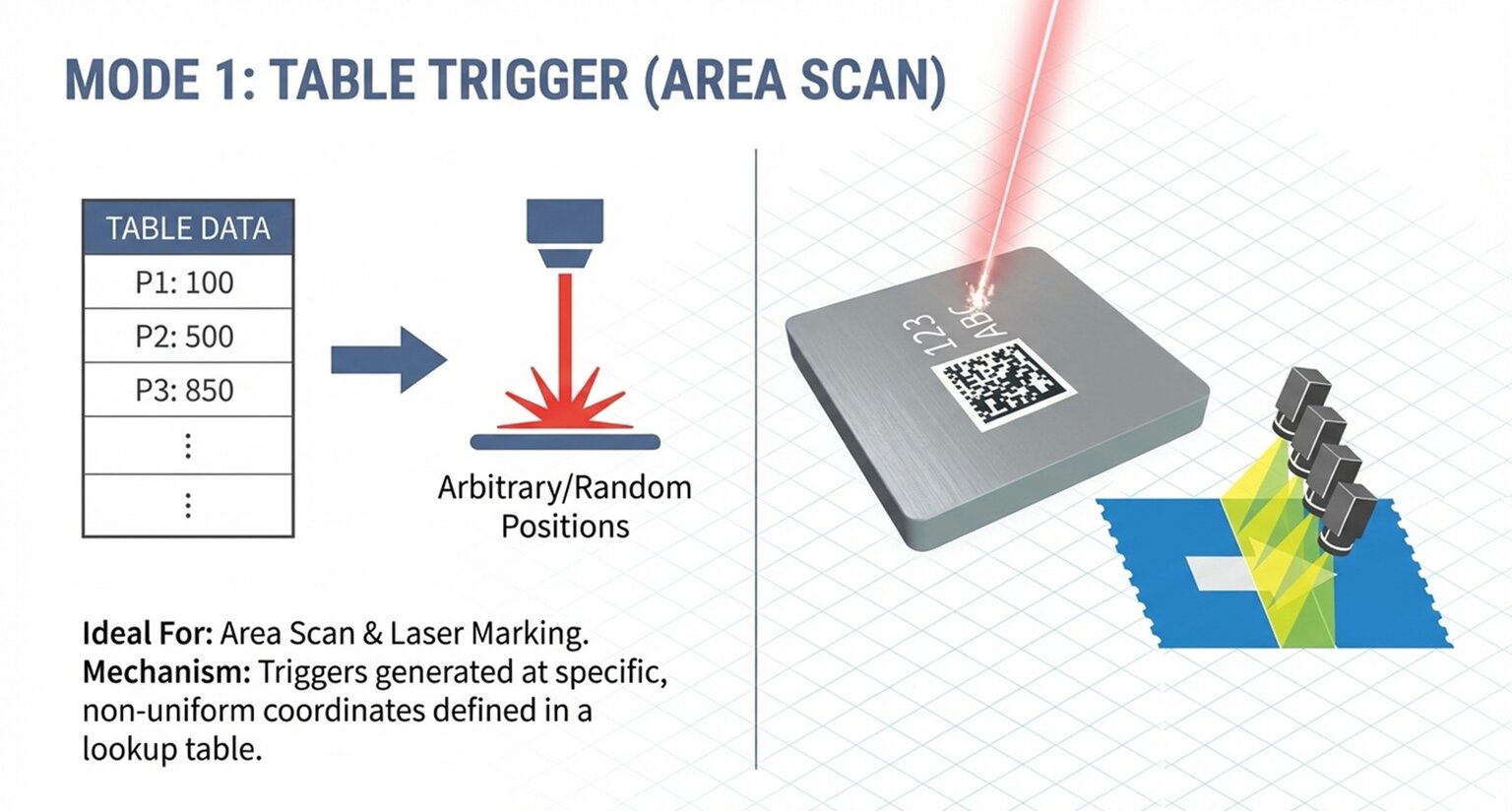

- Table Trigger, 4096pts allocatable for all channels

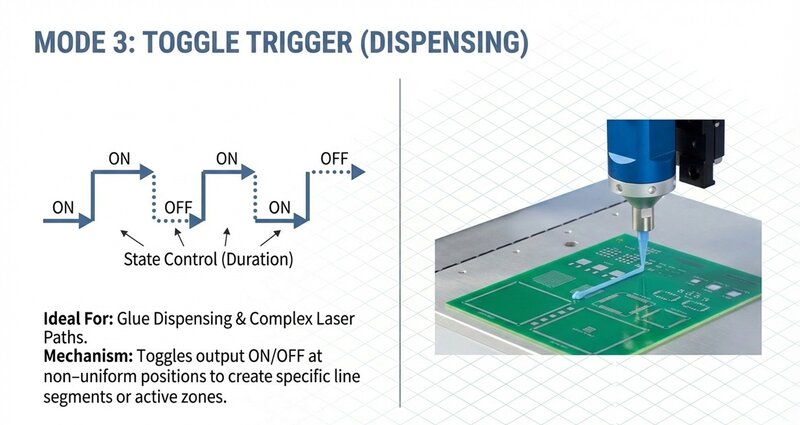

- Toggle Trigger, 4096pts allocatable for all channels
4-channel Latch function , Max. 10 KHz( 256 pt/ch)
Rotary switch for address setting
Programmable Trigger Out Pulse Width
DIN rail mounting

説明

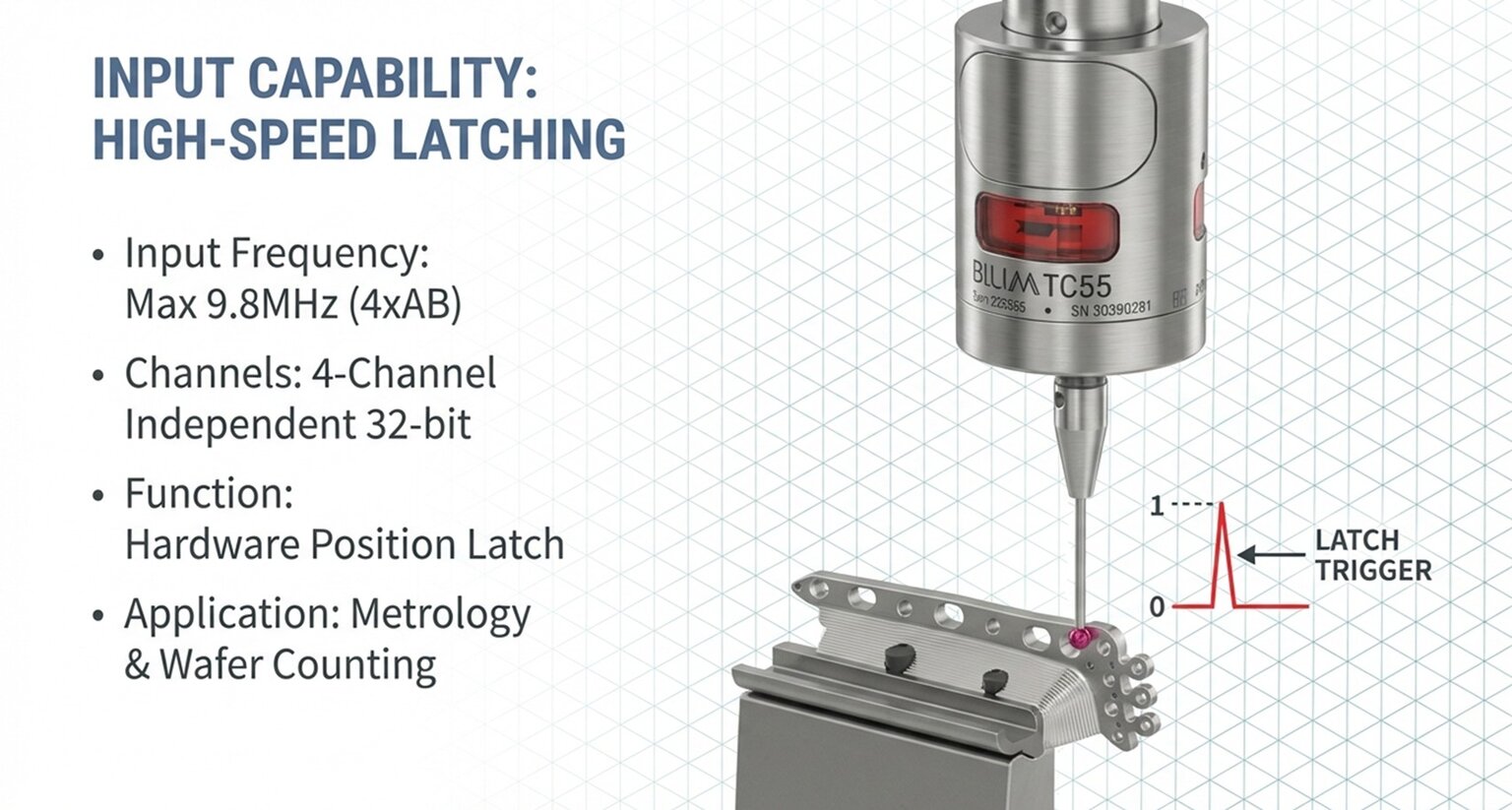

Latch Function

Trigger Function

仕様:

EtherCAT
Data transfer medium	Ethernet 100BASE-TX, CAT5 Shielded Ethernet cable
通信タイプ	DC
ディストリビュートクロック	0.5/1/2/4 ms
ID switch	8 bits

Encoder input
エンコーダチャンネル	2-Ch. EA/EB/EZ independent 32-bit counter 2-Ch. EA/EB independent 32-bit counter
エンコーダ入力周波数	Max. 4MHz, for CW/CCW and PULSE/DIR Max. 6.5MHz for 4xAB phase mode
Encoder mode	1xAB, 2xAB, 4xAB, CW/CCW, PULSE/DIR

Digital I/O
フォトカプラ絶縁デジタル入力	IN x 8, NPN type
	IN 0~3 as Latch function Max. 10KHz, 256pts for each channel
	IN 0~3 as Encoder reset function
	Digital filter 1~65,535us

コンパレーター出力
Trigger Output	CMP x 4
	Auto Trigger, Max. trigger frequency 1MHz
	Table Trigger, 4096pts allocatable for all channels
	Toggle Trigger, 4096pts allocatable for all channels
	Programmable Pulse Width, 0.1 ~ 6553.5 or 1 ~ 65535 micro-second

一般
Power Input	24VDC±10%
消費電流	3W typical
使用温度範囲	0°C~60°C (32°F~140°F) ambient temperature with air flow
保管温度	-20°C~80°C (-4°F~176°F)
湿度	85% (non-condensing @60°C)
Size	L122 x W83 x H104 mm
