8軸モーションネットマスターカードコンボ(端子台/ドーターボード)

PCE-M118-GL

これらの専用I / O信号は、ハードウェアを介した機能を保証するため、ソフトウェアの負担が少なくて済みます。

ALM、INP、ERCなどのサーボドライブ/モーター専用デジタルI / Oインターフェースと

ORG、PEL、EMGなどの機械専用デジタルI / Oインターフェースを提供します。

説明

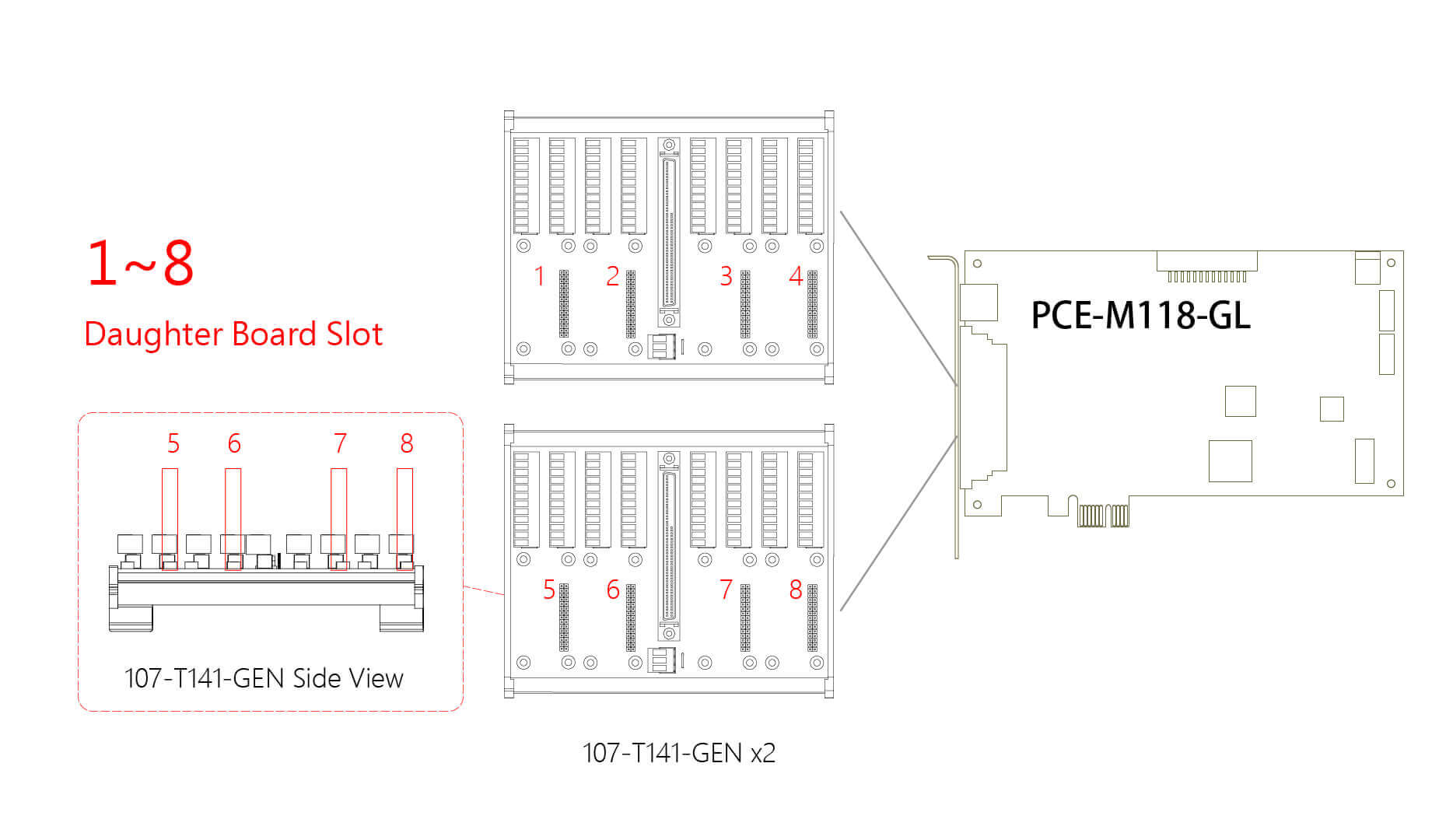

8-axis-combo-illu

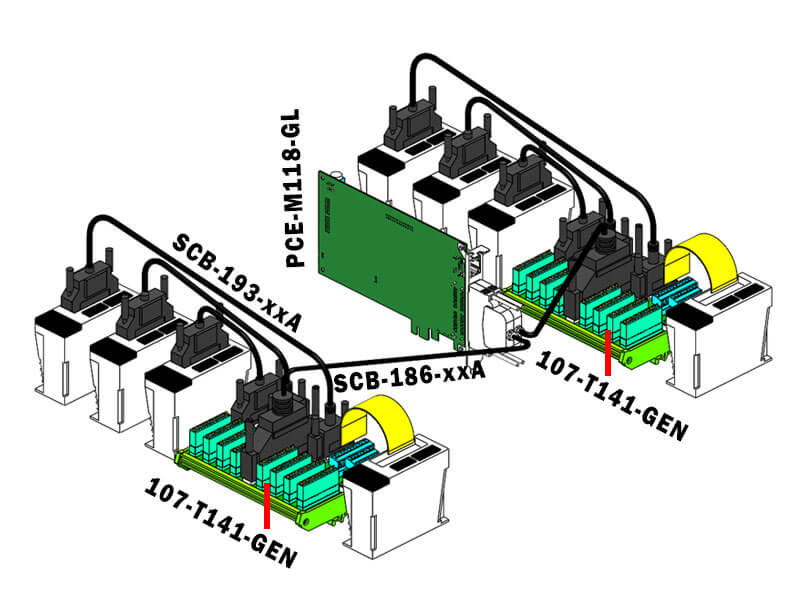

107 T141 GEN DBPCE M118 GLAC Servo 2 產品組合圖
The PCE-M118-GL is an advanced motion controller consisting of 2 main parts, 8-axis motion controller, and high-speed real-time network extension, Motionnet. The 8-axis motion control provides 2 to 4 axes linear interpolation, 2-axis circular interpolation and also continuous interpolation with velocity continuity. It provides 13 homing modes for different machine designs. It also provides position compare and trigger output functions to apply to other applications, like on-the-fly image acquisition. The position latch and interrupt functions let users widely utilize with other applications like machine tool length measurement. The PCE-M118-GL provides servo drive/motor dedicated digital I/O interfaces, for example, ALM, INP, and ERC and also machine dedicated digital I/O interfaces, for example, ORG, PEL, and EMG. These dedicated I/O signals guarantee the functionality via hardware and therefore reduces the loading of software.
モーション制御
パルス出力レート OUT / DIR, CW / CCW, A/B
パルス出力レート 最大6.5Mpps
位置決め管理範囲 32ビット
原点復帰動作 13種
加減速特性 T/Sカーブ加減速
補間動作 直線補間、円弧補間、連続動作
エンコーダーカウンター 32ビット
位置ラッチ入力 LTC x 8
コンパレーター出力 CMP x 4・ 1,024点/ CMP x 4
インクリメンタル型エンコーダ入力 ±EA x 8, ±EB x 8
エンコーダーZ相入力 ±EZ x 8
マシンインターフェイス PEL x 8, MEL x 8, ORG x 8, SLD x 8
ドライバー系インターフェイス ALM x 8, RDY x 8, SVON x 8, INP x 8, ERC x 8, ALMRST x 4
非常停止入力 EMG x 2
I / Oピンタイプ ミニSCSI-タイプ 68 ピンコネクターx2 絶縁耐圧:3750Vrms

モーションネット®
シリアル通信ライン 1
インターフェイス 絶縁型半二重 RS-485 トランシーバ
ケーブルタイプ CAT5 UTP / STPイーサネットケーブル
サージ保護 10 KV
通信速度 最大100 m (20 Mbps; 32 スレーブモジュール)
フロー制御 自動
通信距離 100m (Max.) ( 32 スレーブモジュール、伝送速度20Mbps)

一般
仕様 1レーン2.5Gb/s PCI Express
電源 3.3VDC at 430mA, 12VDC at 55mA typical
使用温度範囲 0 to 60℃
