説明
RPX-L132D1-CDS offers an implemented SoftPLC runtime system with IEC 61131-3 development interface for automation specialists.
Hardware Specifications:
- Raspberry Pi4 (Model B)
- SoC: Broadcom BCM2711 Quad coreCortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- GPU: Broadcom VideoCore VI
- RAM: 4 GB LPDDR4 SDRAM
- Display & audio port: 2 × micro-HDMI 2.0, 3.5 mm analogue audio-video jack
- USB: 2x USB 3.0 + 2x USB 2.0
- Network: Native Gigabit Ethernet
- Expansion: 40-pin GPIO header
- Storage: 32G microSD card
HAT-L132D1
- Motionnet: 2-Ring
- Ring0: for DIO slave, Max:16 pcs
- Ring1: for Motion slave, Max: 16 pcs
- Encoder interface: EA/EB; 2 channels
- CMP: 8 channel (Fixed interval or Table(max. 1024 pt.))
- DI: 4 (also available for latch function)
- DO: 4 ( 200mA output)
- Hardware IC: unique ID
- Power supply: DC24V at 220mA
Software:

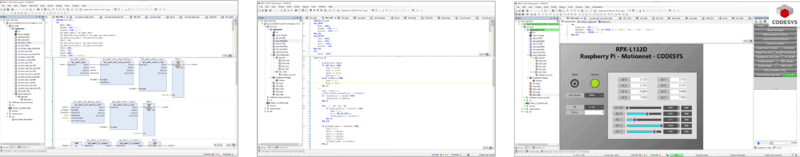

- Offers a CODESYS IEC 61131-3 programming tool
- Free CODESYS Editor Tool: CODESYS Development System V3 | CODESYS Store International
- Free RUNTime-License of CODESYS Control runs for two hours without functional limitations before shut down.
- Sample code: for HAT-L132D1 and Motionnet slave
- Function Block
- Structured text
仕様:
Raspberry Pi 4 Model B | |
SoC | Broadcom BCM2711 Quad coreCortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
GPU | Broadcom VideoCore VI |
RAM | 4 GB LPDDR4 SDRAM |
ディスプレイとオーディオポートt | 2×マイクロHDMI2.0、3.5mmアナログオーディオビデオジャック |
USB | 2x USB 3.0 + 2x USB 2.0 |
通信 | Native Gigabit Ethernet |
拡張 | 40ピンGPIOヘッダー |
ストレージ | 32G microSDカード |
電源 | Raspberry Pi 15W USB-C Power Supply (96-264Vac operating input range) |
HAT-L132 Motionnet | |
シリアル通信ライン | 2 |
スレーブモジュール接続数 | DIOをリンク0、最大１６軸 モーション関係をリング1にして、最大１６軸 |
HAT-L132 Advanced I/O | |
絶縁デジタルDIO | 4 DI、ラッチ機能にも使用できます 4 DO 200mA output |
エンコーダー入力 | EA/EB, 2 点 |
コンパレーター出力 | 8 channels, Fixed interval or variable interval (max. 1024 pt.) |
HAT-L132 Power | |
電源 | DC24V at 220mA |
Power Connector | 2-pin Terminal Block |
HAT-L132 Environment | |
寸法 | L113 x W48 x H93 mm (RPX-L132 with chassis) |
Operation Temperature | 0°C~50°C (32°F~122°F) ambient temperature with air flow |
保管温度 | -20°C~80°C (-4°F~176°F) |
湿度 | 85% (non-condensing @50°C) |
