Features

● 8-Ch. AI slave module with pluggable terminal

● Max. 100Mbps transfer rate

● Rotary switch for address setting

● Easy installation with RJ45 phone jack and LED diagnostic

● Pluggable terminal block with spring plug connectors

● DIN rail mounting (L-122 x W-66 x H-104 mm)

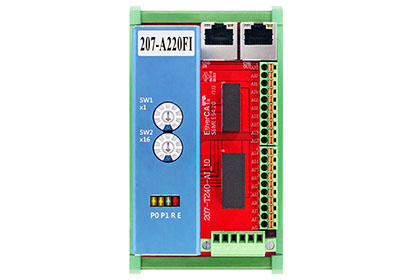

The 207-A220FI Series is an 8-channel Analog Input (AI) slave module with the pluggable terminal block. There are two series of 207-A220FI. With EtherCAT® control, it will lead to fast ethernet and full-duplex serial interface.I/O Module The transmission speed is up to 100 Mbps. Remote IO The digital slave can connect different slaves serially with cable CAT5 UTP/STP ethernet cable.EtherCAT IO

  • EtherCAT IO 207-A220FI: an 8-channel Analog Input slave module with ±10V input range.
EtherCAT®
Serial interface Fast Ethernet, Full-Duplex
Distributed clock 1ms
Cable type CAT5 UTP / STP Ethernet cable
Surge protection 10KV
Transmission speed 100 Mbps
I/O isolation voltage 3750Vrms

AD Converter
Effective resolution 16 bits
Accuracy ±0.5% (FI, FID)
Conversion time ~ 125µs
Input range Single End: 4~20mA

General
Power input 24VDC±5%
Power consumption 3W typical
Working temperature 0°C~60°C (32°F~140°F) ambient
temperature with air flow
Storage temperature -20°C~80°C (-4°F~176°F)
Humidity 85% (non-condensing @60°C)
Size L122 x W66 x H104 mm

207-A220FI:https://www.tpm-pac.com/product/207-a220fi/
