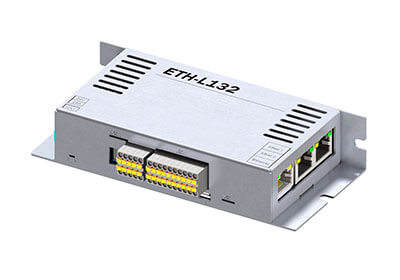

ETH-L132-D1:https://www.tpm-pac.com/product/eth-l132d/
Features:
- Ethernet to Motionnet Converter
- Support C++/C# programming language
- Support Windows 7/10
- Compact Size: 135 x 60 x 28 mm
Specification:
| Ethernet | |
| Speed | 10 / 100M |
| Communication | TCP/IP, LAN only |
| Topology Level | Star topology through switch or hub |
| Motionnet | |
| Max. Rings | 2 |
| Max. Slaves | Ring 0 for DIO, Max. 16 slaves
Ring 1 for Motion, Max. 16 axes |
| Advanced I/O | |
| Isolated DIO | 4 DI, also available for latch function.
4 DO |
| Encoder Input | EA/EB, 2 channels |
| Compare Trigger | 8 channels
Fixed interval or variable interval (max. 1024 pt.) |
| Power | |
| Power Supply | DC24V at 220mA |
| Power Connector | 2-pin Terminal Block |
