MyLink Axis Module Screen Explanation - Module Settings Area

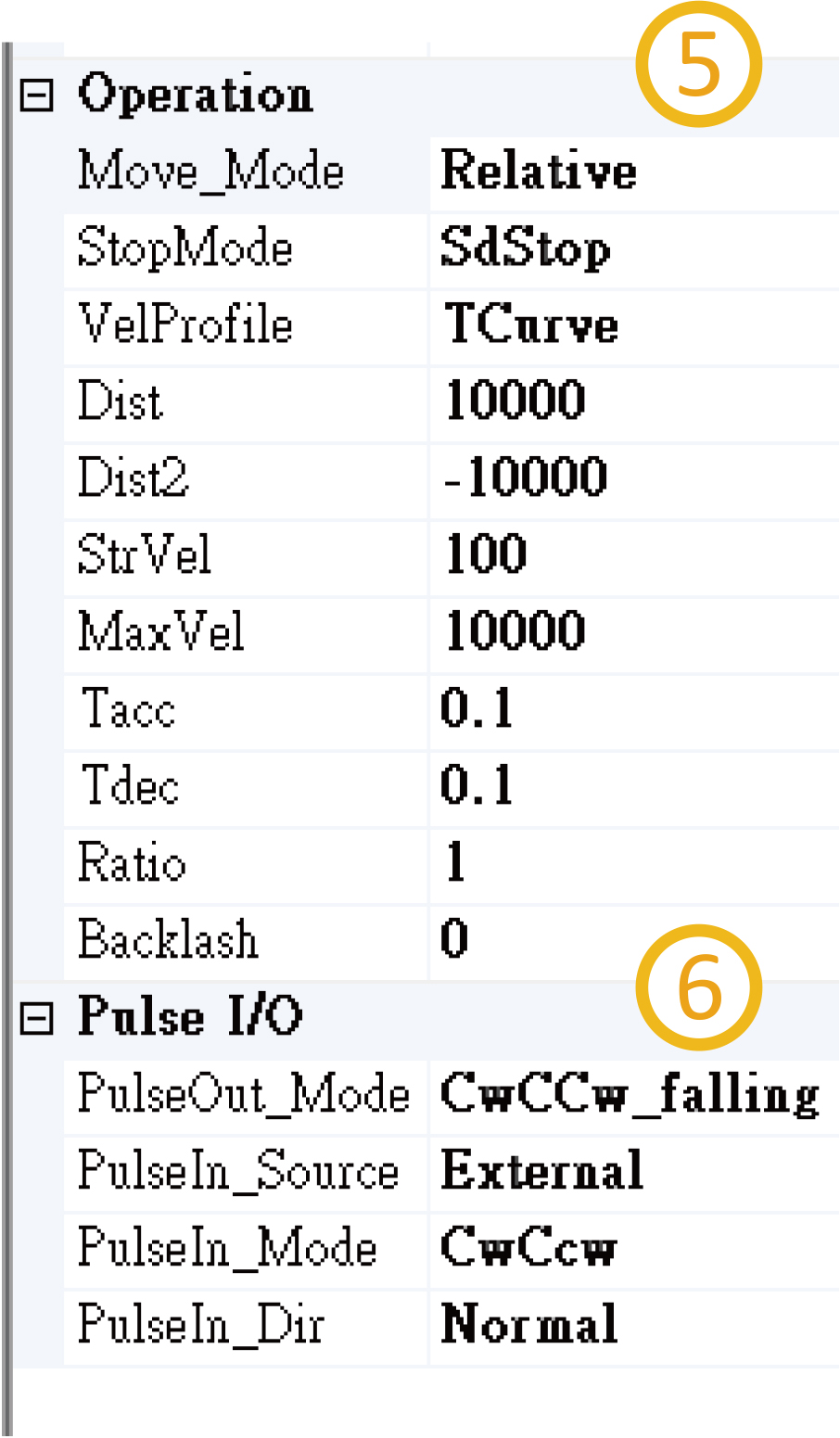

6.Pulse I/O

  • PulseOut_Mode:Configure the pulse output mode

               – There are 8 modes to choose from
                      – OUT/DIR: 4modes
                      – CW/CCW: 2modes
                      – A/B phas:2modes
               – Depending on the receiving interface mode of the servo or stepper drive

  • PulseIn_Source:Configure the Feedback counting source

               – There are three options
                      – External : External Feedback
                      – Internal : Internal value
                      – Command : Output pulse command value

  • PulseIn_Mode:Set the mode for Feedback

               – There are 4 modes: A/B phase 3 types; CW/CCW 1 type                       – 1AB; 2AB; 4AB
                      – 1AB; 2AB; 4AB
               – Selected according to the Feedback interface mode

  • PulseIn_Dir:Set the Feedback counting direction

               – Normal : Position follows the original counting values, no changes
               – Reverse : Reverse the Position counting values

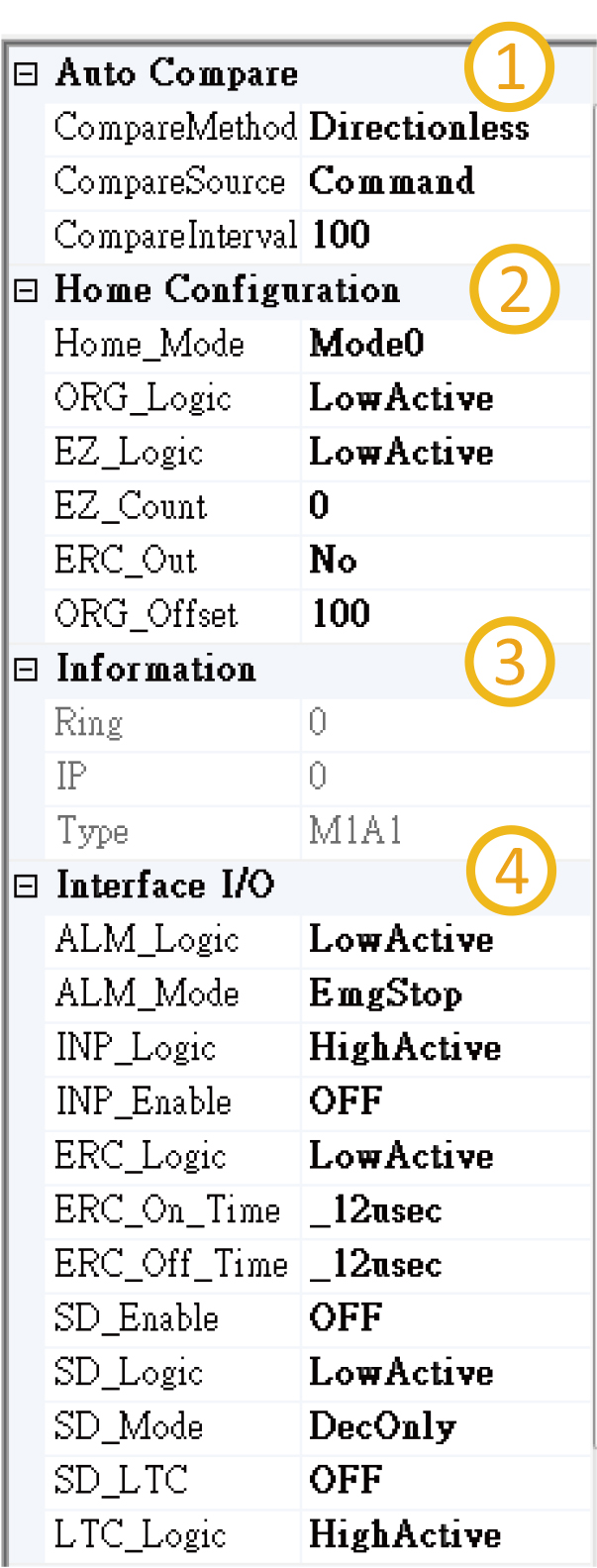

FAQ_motionnet_tool_MyLink工具-軸模組畫面說明_模組設定區-20-1
FAQ_motionnet_tool_MyLink工具-軸模組畫面說明_模組設定區-20-2

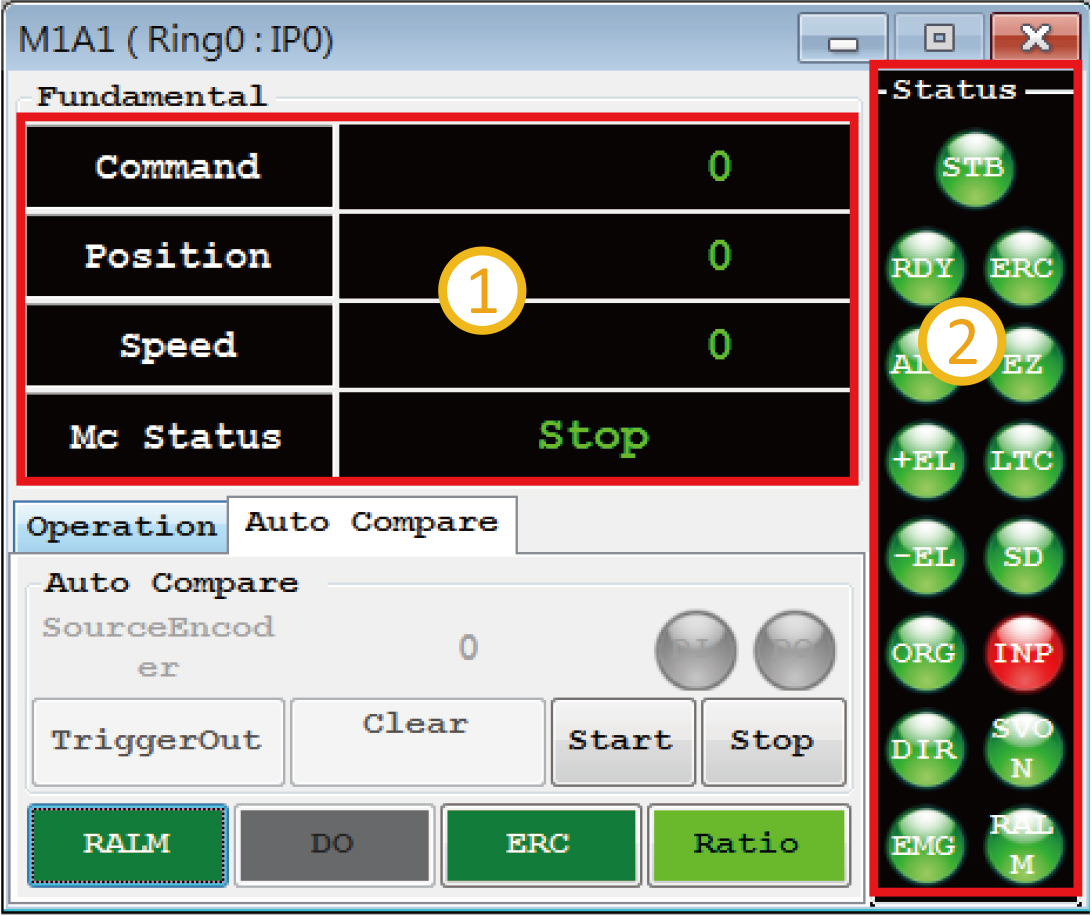

MyLink Axis Module Screen Explanation - Display Area

  • Operation and Status Display Area

    1.Main display of axis information during operation

    • Command:Command value issued during operation
    • Position: Feedback return value during operation
    • Speed:Current speed value of the axis

    2.Indicator Light Display Area

    • Servo (or Step) Status Indicators: RDY/ALM/ERC/INP/EZ/SVON/RALM
    • If the ALM light is on, the motor cannot be controlled. Please correct the settings or resolve the ALM
    • MIO Status Indicators: EL+/EL-/SD/EMG/ROG
    • EL+ and EL- should not be lit simultaneously. If they are, it indicates a logic configuration error. Please correct
    • Other Indicators: LTC/DIR/STB

    When there is an error, STB changes to RUN!! Please troubleshoot the error and click RUN!! again to resume operation

FAQ_motionnet_tool_MyLink工具-軸模組畫面說明_模組設定區-21

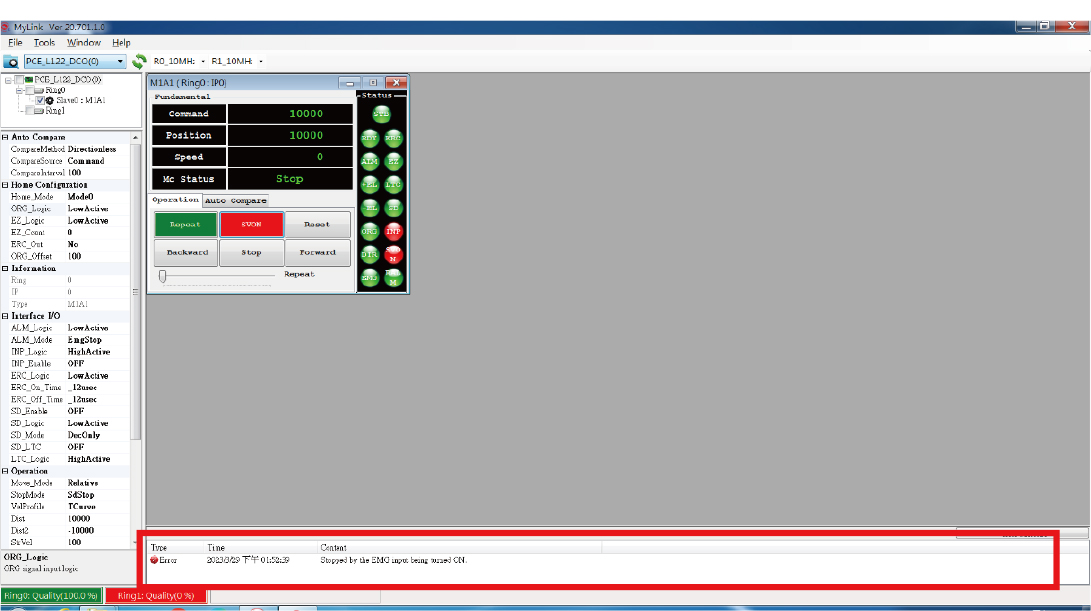

MyLink Axis Module Screen Overview - Display Area

  • Error Message Display Area: Main Functions

               – Displays various error messages during different operational states
                      – Communication Error: Displayed Directly
                      – Error Generated During Operation: Message Displayed as Described in the Following Example
               – Example Explanation:
During operation, when the EMG light is on → Press Forward (or Backward) → The RUN light is on with an exclamation mark → Press Run once to clear the status → The error message display area shows the error message

FAQ_motionnet_tool_MyLink工具-軸模組畫面說明_模組設定區-22-1
FAQ_motionnet_tool_MyLink工具-軸模組畫面說明_模組設定區-22-2
