EtherCAT I/O Solutions-Taiwan Pulse Motion

Showing all 4 results

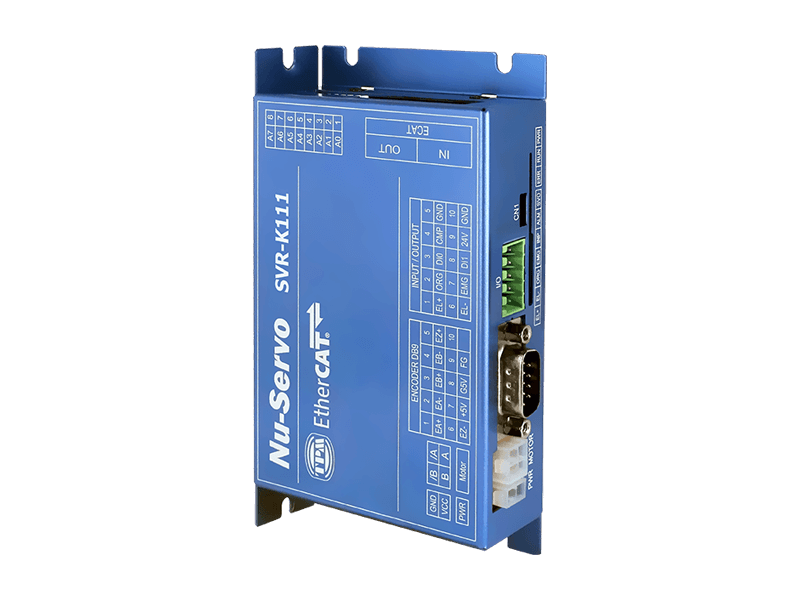

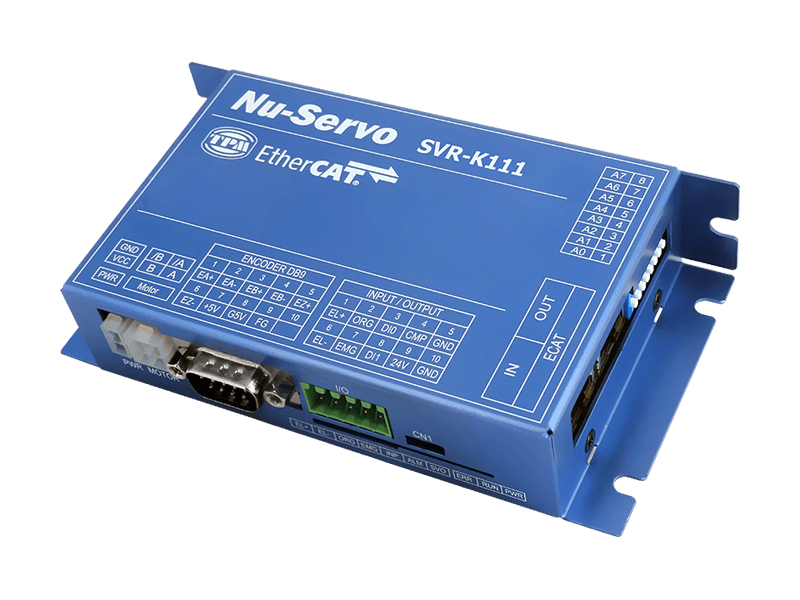

  • svr-k111 EtherCAT IO stepper motor drive EtherCAT Robot
    svr-k111 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K111(1 axis/2-phase)

    Features

    Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis closed-loop stepper drive

    ● K111 : Current 2.8A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • SVR-K112 EtherCAT IO stepper motor drive EtherCAT Robot
    SVR-K112 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K112(1 axis/2-phase)

    Features

    Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis closed-loop stepper drive

    ● K112 : Current 4.2A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution



    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

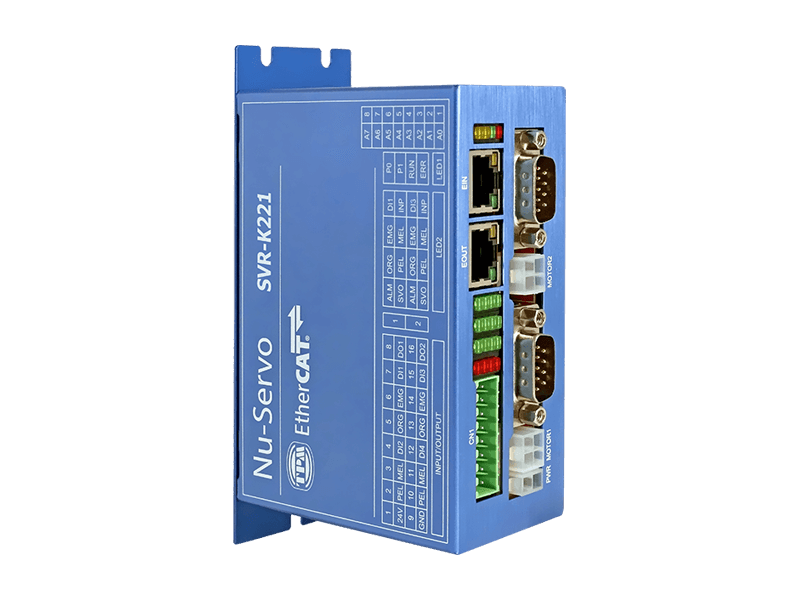

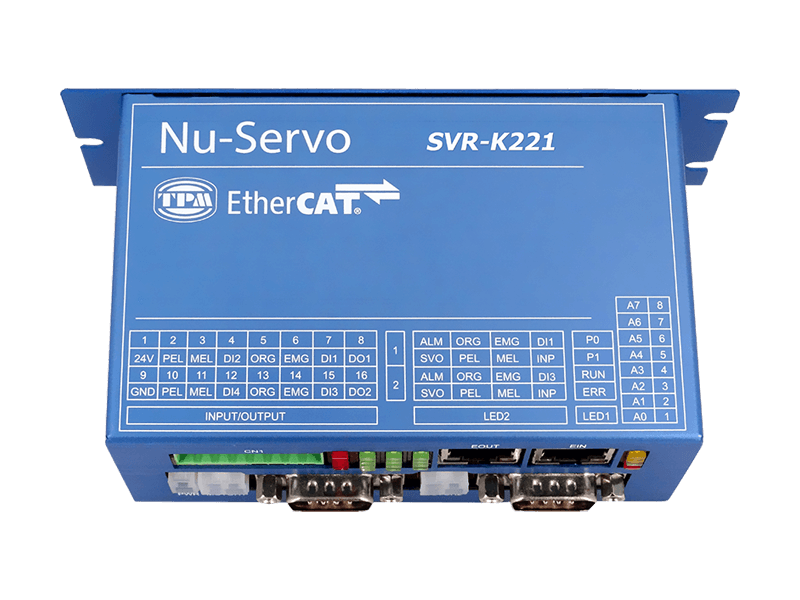

  • SVR-K221 EtherCAT IO stepper motor drive EtherCAT Robot
    SVR-K221 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K221(2 axis/2-phase)

    Features

    Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.

    ● EtherCAT Max. 100Mbps transfer rate

    ● 2-axis closed-loop stepper drive

    ● K221 : Current 1.8A / axis

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-75 x W-140 x H-47 mm

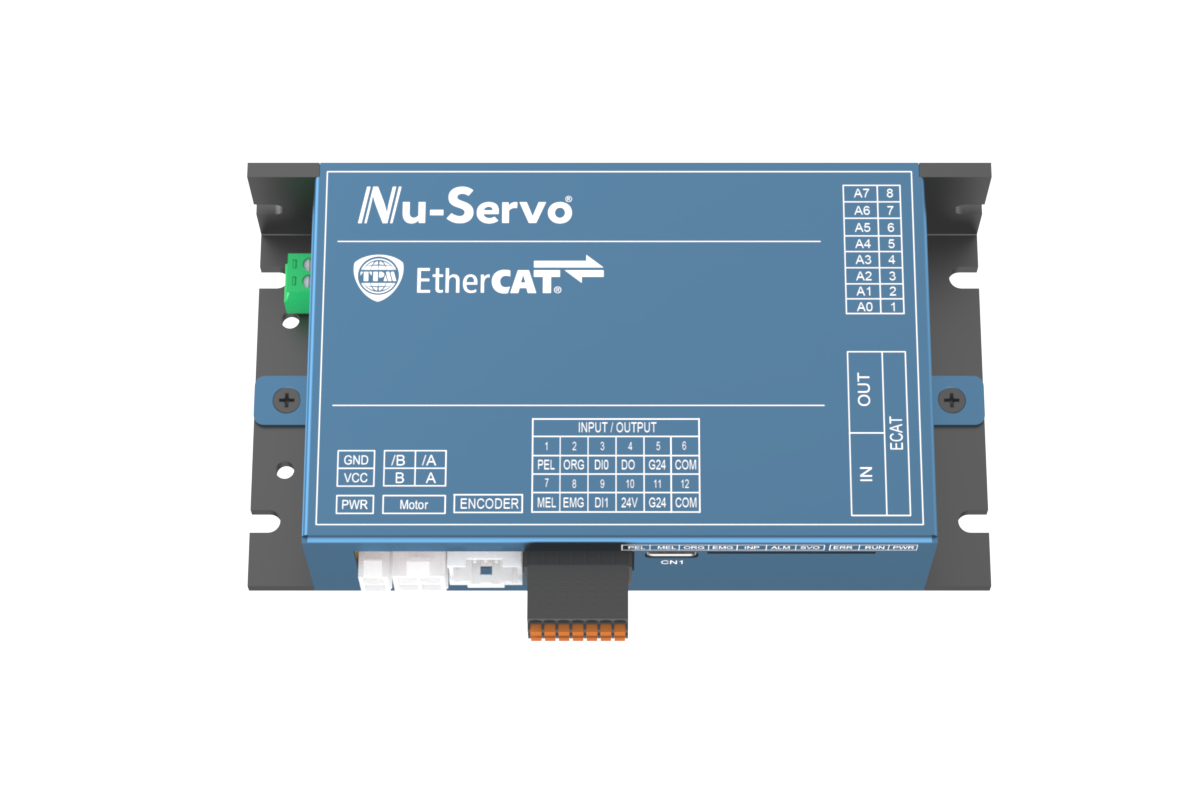

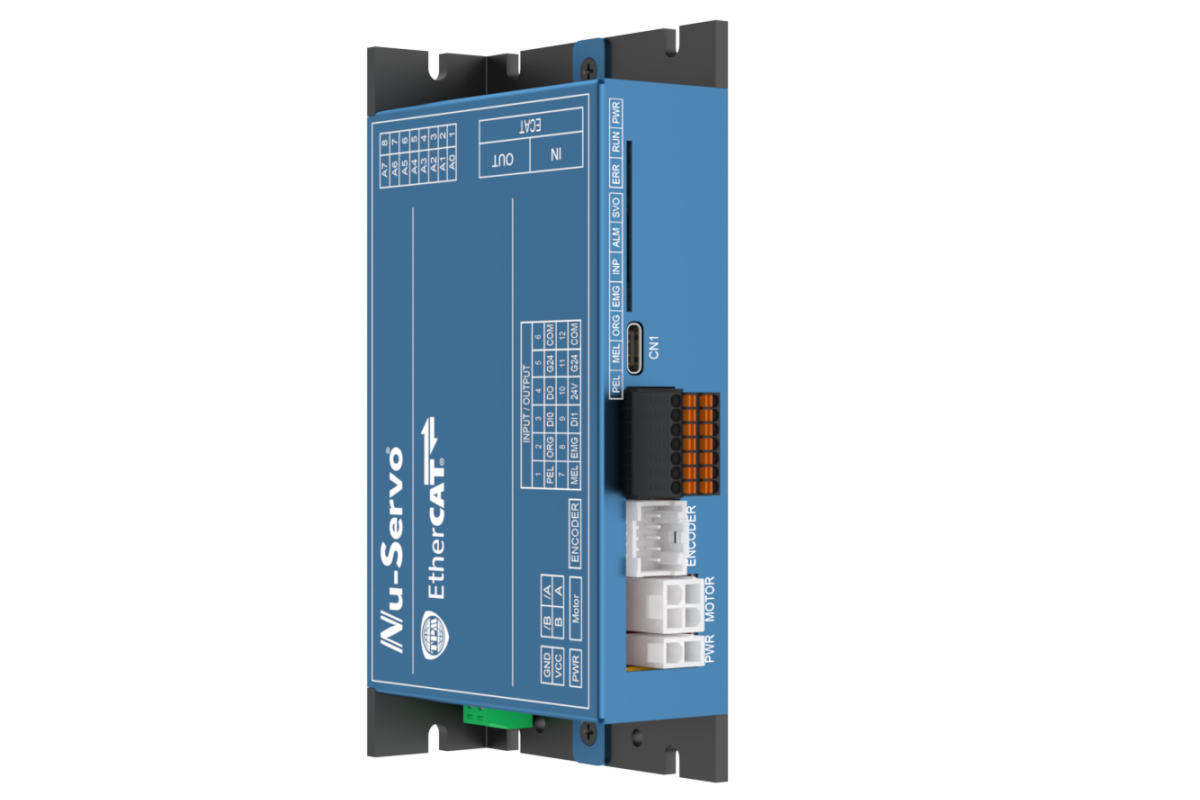

  • tpm商品圖_EtherCAT_Nu-Servo Drive_Closed loop_SVR-K2312_800x600

    SVR-K2312

    Features

    ● EtherCAT Closed-loop Drive

    ● User-selectable Motor

    ● Adjusting driving current automatically

    ● High positioning accuracy and no hunting

    ● Low vibration and noise
