Showing 100–108 of 252 results
ECPW
Features:
- EtherCAT master powered by INtime® RTOS.
- Support CoE (CANOpen over EtherCAT)
- EtherCAT Distributed Clocks up to 0.5ms
- Control up to 60 axes
- Access up 10,000 digital I/O points.
- Simulation mode for offline test
- Visual Studio C/C++ and C# development
- Compliant Windows 7 32/64 and Window 10
- ECATNavi utility tool for diagnosis
- At least 4-core CPU
- Intel i210/i211 NIC
ECPWG
Features:
- Control up to 10 axes
- Various run modes
-Helix Path
-Circular Path
-Rotary
- Hardware DIO binding
-WAIT statement
- User-defined G/M commends
- Extended
-G120-Spindle widing
– G121-Needle widing
– G122-Flyer fork widing (reserved)
- UI Tool to simulate the G code script
– INTime Supported Versions
- WindowsOS: win 7 and win 10
- Network card (chip) Intel I210 and Intel I211
- At least 4-core CPU

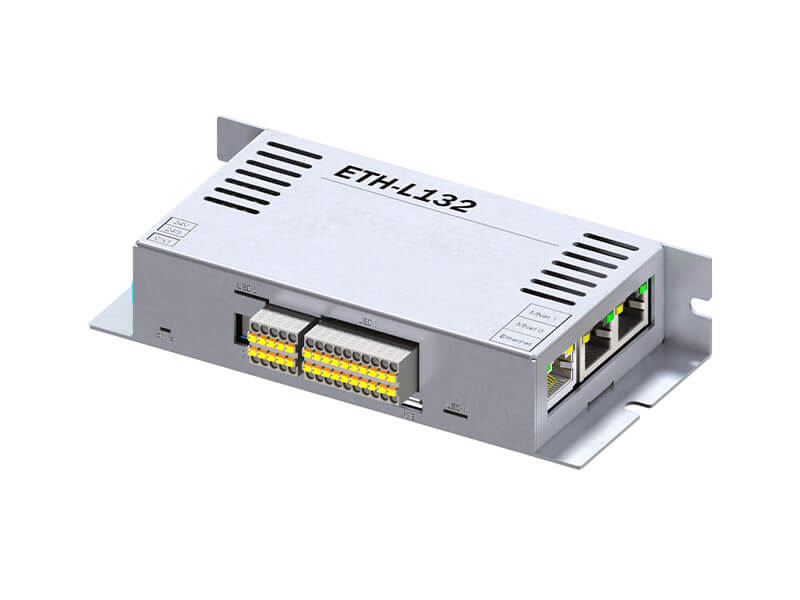

ETH-L132-D1
Features:
- Ethernet to Motionnet Converter
- Support C++/C# programming language
- Support Windows 7/10
- Compact Size: 135 x 60 x 28 mm
EtherCAT 3-Axes 5-Phase STP-K5231A
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
It supports both external encoder feedback signals from an optical linear encoder and signals from an encoder embedded into a stepper motor offering significant flexibility and enhanced performance for precision motion control.
- EtherCAT 5-Phase Bipolar Constant-current Drive
- 3-Axes Microstepping Drive
- Resolution 500 ~ 40,000 PPR
- Driving Current Max 1.4A per Axis
- CiA402 device profile: CSP, PP, Home
- DIP switch for address setting
- Support Encoder feedback: EA, EB, and EZ
- DIN rail mounting

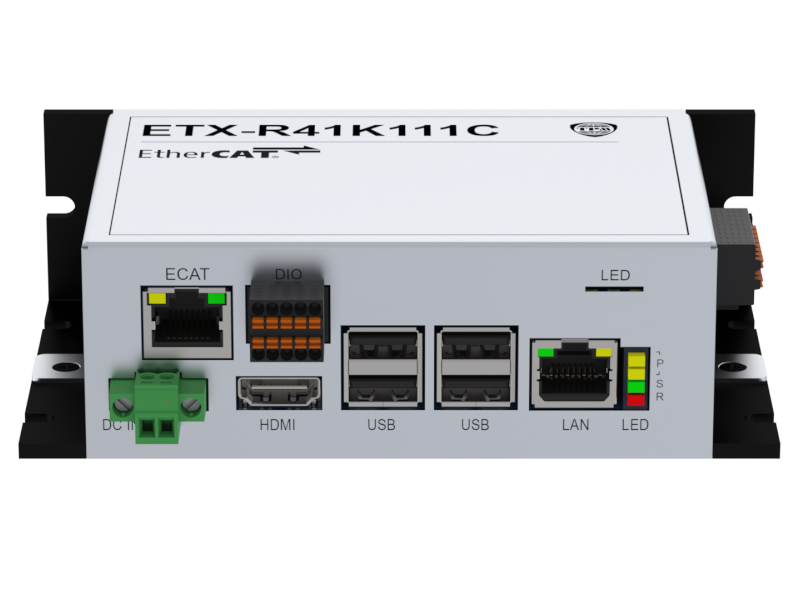

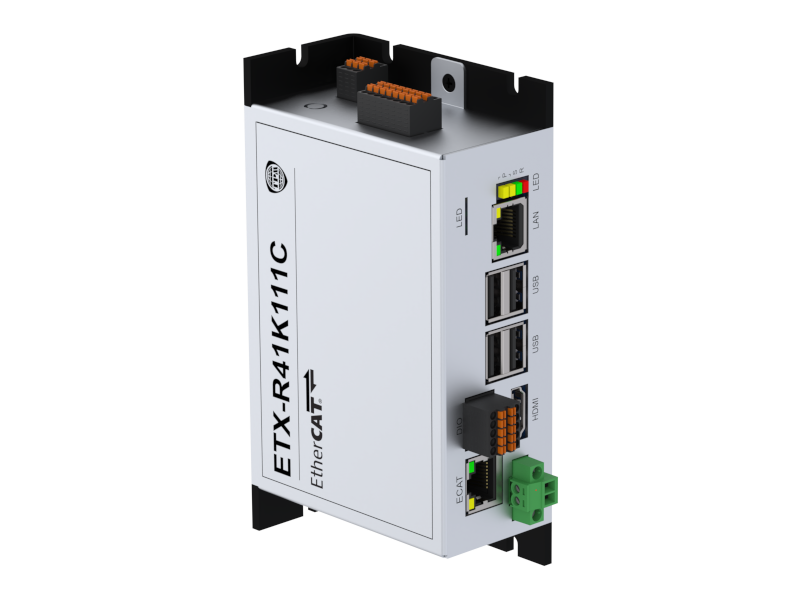

ETX-R4K111
EtherCAT ARM-Based Motion Controller
Introducing our compact and easy-to-use EtherCAT ARM-based Motion Controller, designed for seamless multi-axis motion control with up to 30 axes. This versatile controller is compatible with both Windows and Linux platforms and supports development in C, C++, and C#. With its user-friendly design, it simplifies integration by converting standard Ethernet TCP/IP into the EtherCAT communication protocol. This allows for easy setup and connectivity while maintaining high performance and precision. Ideal for space-constrained environments, it delivers powerful motion control capabilities in a small footprint, making it perfect for a wide range of industrial automation applications.

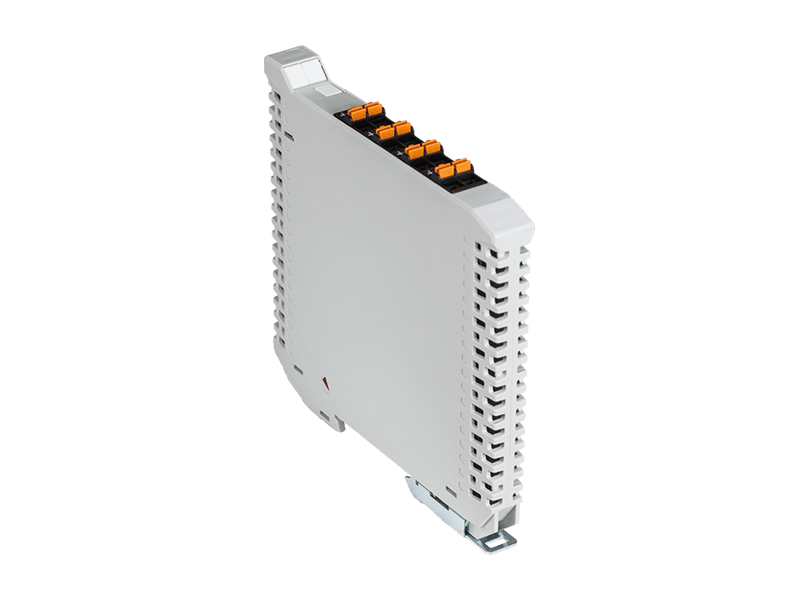

EZC-A102F(Available Soon)(4-CH.AO)
Features
● TPM EtherCAT® add-on module
● Local bus support with CAN
● Spring plug connectors
● DIN rail mounting (L-97 x W-100 x H-12 mm)

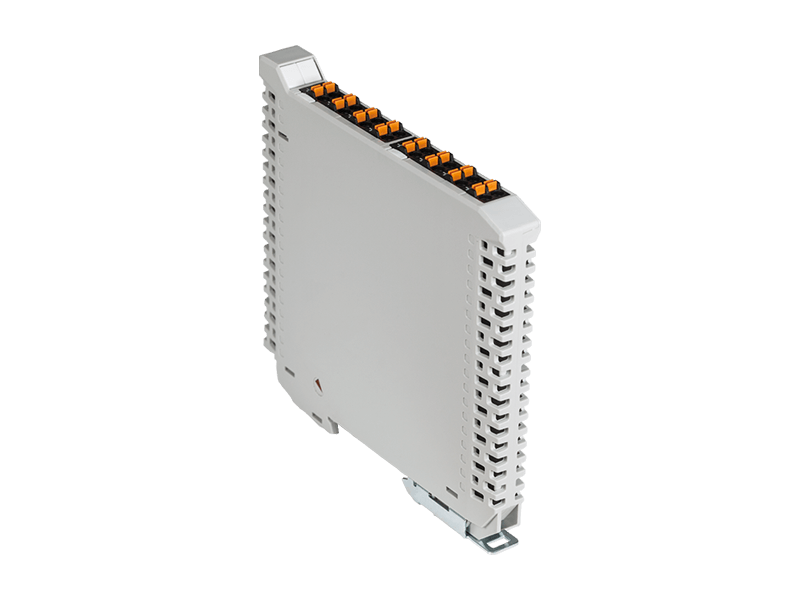

EZC-A110 Series(Available Soon)(4-CH.AI)
Features
● TPM EtherCAT® add-on module
● Local bus support with CAN
● Spring plug connectors
● DIN rail mounting (L-97 x W-100 x H-12 mm)
