Showing 217–240 of 243 results

  • SCB-2544

    SCB-2544-20A(2M)

    VHDCI 68-2*miniSCSI 68 pin

    Pin to pin

    Length: 2 M

  • c4_spc

    SmartPAC Combo

  • SPC-3204D Motionnet PCIe PC-Based

    SPC-3204D

    Features

    ● Robust and Flexible Fanless Embedded System

    ● Support Intel® Pentium® N3710 Processor

    ● Support Dual channel DDR3L SO-DIMM, Max. 8GB

    ● Support Storage with mSATA SSD

    ● Support external C-Fast x 1

    ● Support DVI-I Dual display

    ● Intel® I211-AT Gigabit Ethernet port x 2

    ● 5 x RS-232, 1 x RS-232 / 422 / 485 and 2 x RS485

    ● Isolated digital with 8 DI and 8 DO

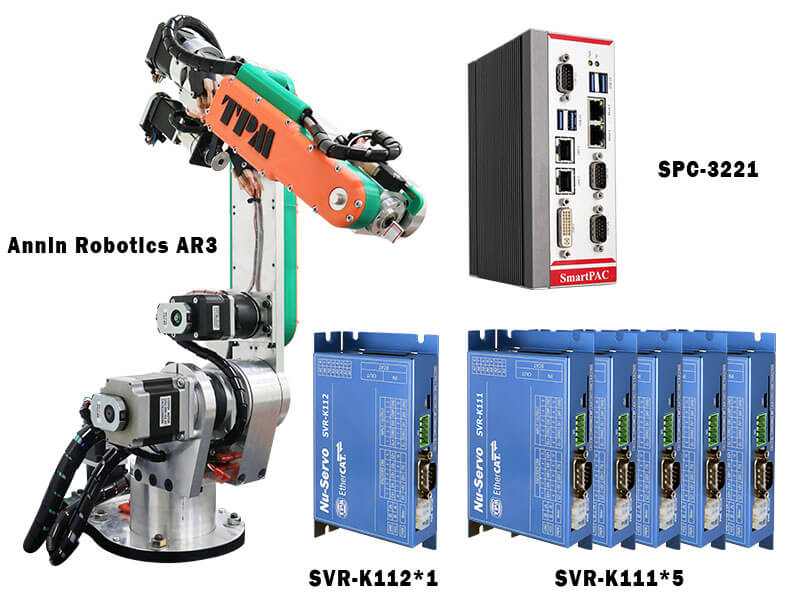

  • SPC-3221 EtherCAT IO Motionnet PCIe PC-Based

    SPC-3221

    Features

    ● Robust and Flexible Fanless Embedded System

    ● Support Intel® Pentium® N3710 Processor

    ● Support Real-time Operating System

    ● Support Dual channel DDR3L SO-DIMM, Max. 8GB

    ● Support Storage with HDD / SSD and mSATA SSD

    ● Support DVI-I Dual display

    ● 2 Rings of Motionnet®Master, Max. 128 slaves

    ● Intel® I211-AT Gigabit Ethernet port x 2

    ● 5 x RS-232 and 1 x RS-232 / 422 / 485

    ● GPIO with 8 DI and 8 DO

    ● Hardware IC with unique ID

  • SPC-6204D EtherCAT IO Motionnet PCIe PC-Based

    SPC-6204D

    ● Robust and Flexible Fanless Embedded System
    ● Support Intel® CoreTM i5-6300U Processor
    ● Support Dual channel DDR4 SO-DIMM, Max. 16GB
    ● Support Storage with mSATA SSD
    ● Support external C-Fast x 1
    ● Support DVI-I Dual display
    ● Intel® I211-AT Gigabit Ethernet port x 2
    ● 5 x RS-232, 1 x RS-232 / 422 / 485 and 2 x RS485
    ● Isolated digital with 8 DI and 8 DO

  • SPC-6221 EtherCAT IO Motionnet PCIe PC-Based

    SPC-6221

    Features

    ● Robust and Flexible Fanless Embedded System

    ● Support Intel® CoreTM i5-6300U Processor

    ● Support Real-time Operating System

    ● Support Dual channel DDR4 SO-DIMM, Max. 16GB

    ● Support Storage with HDD / SSD and mSATA SSD

    ● Support DVI-I Dual display

    ● 2 Rings of Motionnet®Master, Max. 128 slaves

    ● Intel® I211-AT Gigabit Ethernet port x 2

    ● 5 x RS-232 and 1 x RS-232 / 422 / 485

    ● GPIO with 8 DI and 8 DO

    ● Hardware IC with unique ID

  • STP-K111 IO Module EtherCAT EtherCAT IO
    STP-K111 IO Module EtherCAT EtherCAT IO

    STP-K111(1 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis micro-stepper drive

    ● K111 : Current 2.8A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • STP-K112 EtherCAT Robot stepper motor drive Motionnet PCIe PC-Based
    STP-K112 EtherCAT Robot stepper motor drive Motionnet PCIe PC-Based

    STP-K112(1 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis closed-loop stepper drive

    ● K112 : Current 4.2A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • STP-K221 EtherCAT IO stepper motor drive EtherCAT Robot
    STP-K221 EtherCAT IO stepper motor drive EtherCAT Robot

    STP-K221(2 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 2-axis micro-stepper drive

    ● K221: Current 1.8A / axis

    ● Bi-polar current driving system

    ● Resolution: 500~50,000 pulse / revolution

    ● DIP switch for address setting

    ● Dimensions: L-75 x W-140 x H-47 mm

  • EtherCAT 5-phase stepper drive-STP-K510A

    STP-K510A(1 axis/5-phase)

    Features:

    • EtherCAT CiA402 device profile
    • 1-Axis 5-phase micro stepper drive
    • STP-K510A : Current 0.75A
    • Constant-current Driving System
    • Support Micro stepping (1 ~ 400,000)
    • Support 0.36° and 0.72°step angle
    • Support Encoder feedback
    • Low Vibration and Noise
    • DIP switch for address setting
    • Dimensions : L-75 x W-140 x H-30 mm
  • EtherCAT 5-phase stepper drive-STP-K511A

    STP-K511A(1 axis/5-phase)

    Features:

    • EtherCAT CiA402 device profile
    • 1-Axis 5-phase micro stepper drive
    • STP-K510A : Current 1.4A
    • Constant-current Driving System
    • Support Micro stepping (1 ~ 400,000)
    • Support 0.36° and 0.72°step angle
    • Support Encoder feedback
    • Low Vibration and Noise
    • DIP switch for address setting
    • Dimensions : L-75 x W-140 x H-30 mm
  • EtherCAT_Nu-Servo Drive_Micro-Step_STP-K512A

    STP-K512A(1 axis/5-phase)

    Features:

    • EtherCAT CiA402 device profile
    • 1-Axis 5-phase micro stepper drive
    • STP-K512A : Current 2.8A
    • Constant-current Driving System
    • Support Micro stepping (1 ~ 400,000)
    • Support 0.36° and 0.72°step angle
    • Support Encoder feedback
    • Low Vibration and Noise
    • DIP switch for address setting
    • Dimensions : L-75 x W-140 x H-30 mm
  • STP-M111A Motionnet PCIe PC-Based
    STP-M111A Motionnet PCIe PC-Based

    STP-M111A(1 axis/2-phase)

    Features

    ● Max. 20Mbps transfer rate

    ● 1-axis micro-step control

    ● M111A : Current 2.0A

    ● Bi-polar current driving system

    ● 1/32 Micro-Step

    ● Encoder feedback

    ● Dimension : L-68 x W-125 x H-29mm

  • STP-M112A EtherCAT IO Motionnet PCIe PC-Based
    SVR-M112 Motionnet PCIe PC-Based

    STP-M112A(1 axis/2-phase)

    Features

    ● Max. 20Mbps transfer rate

    ● 1-axis micro-step control

    ● M112A : Current 4.2A

    ● Bi-polar current driving system

    ● 1/256 Micro-Step

    ● Encoder feedback

    ● Dimension : L-74 x W-140 x H-29mm

  • STP-M116 Motionnet PCIe PC-Based
    STP-M116 Motionnet PCIe PC-Based

    STP-M116 Series(1 axis/3-phase)

    Features

    ● 1-axis Motion Controller Motionnet® slave modules

    ● Max. 20Mbps transfer rate

    ● Ultra compact, a driver integrated controller

    ● 3-phase current driving system

    ● Current: Peak 8.24A / RMS 5.83A

    ● 1/256 micro step

    ● Encoder feedback

    ● Easy installation with RJ45 phone jack and LED diagnosis

    ● Dimensions: L-74 x W-140 x H-29mm

  • STP-M511 EtherCAT IO Motionnet PCIe PC-Based
    STP-M511 EtherCAT IO Motionnet PCIe PC-Based

    STP-M511(1 axis/5-phase)

    Features

    ● 5-phase Motionnet® micro-step drive

    ● Lowest vibration and noise

    ● High positional accuracy

    ● Adjustable running current and stop current

    ● Selectable micro step

    ● Max. 20Mbps transfer rate

    ● Easy installation with RJ45 phone jack and LED diagnostic

    ● Dimension : L-79 x W-140 x H-30mm

  • STP-M512 Motionnet PCIe PC-Based
    STP-M512 Motionnet PCIe PC-Based

    STP-M512(1 axis/5-phase)

    Features

    ● 5-phase Motionnet® micro-step drive

    ● Lowest vibration and noise

    ● High positional accuracy

    ● Adjustable running current and stop current

    ● Selectable micro step

    ● Max. 20Mbps transfer rate

    ● Easy installation with RJ45 phone jack and LED diagnostic

    ● Dimension : L-79 x W-140 x H-30mm

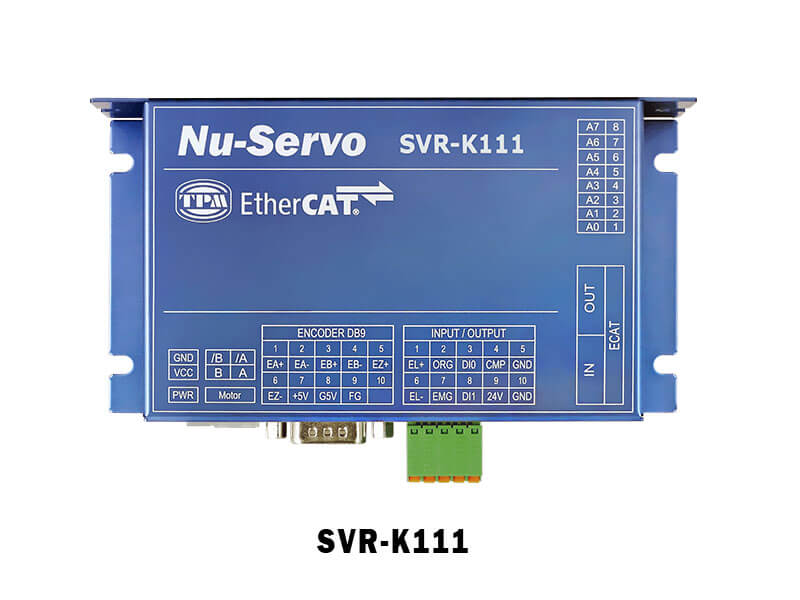

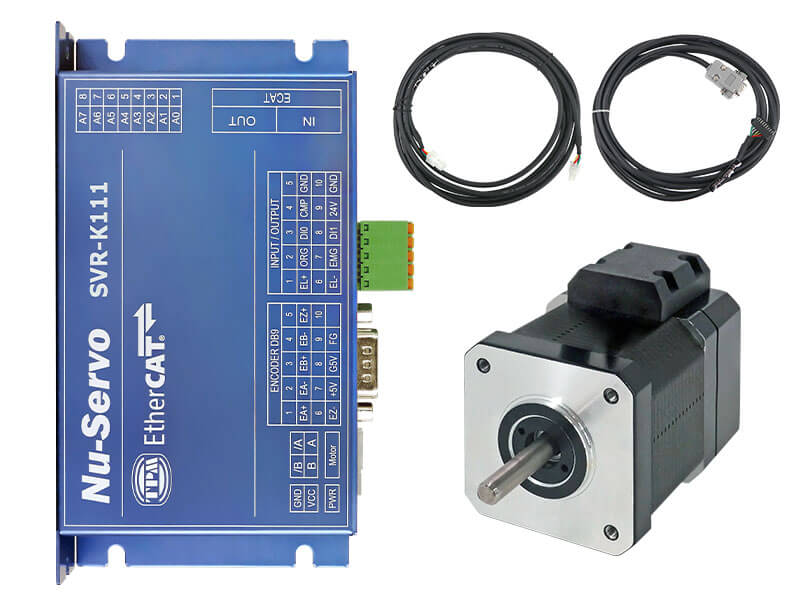

  • svr-k111 EtherCAT IO stepper motor drive EtherCAT Robot
    svr-k111 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K111(1 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis closed-loop stepper drive

    ● K111 : Current 2.8A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • SVR-K112 EtherCAT IO stepper motor drive EtherCAT Robot
    SVR-K112 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K112(1 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 1-axis closed-loop stepper drive

    ● K112 : Current 4.2A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • SVR-K221 EtherCAT IO stepper motor drive EtherCAT Robot
    SVR-K221 EtherCAT IO stepper motor drive EtherCAT Robot

    SVR-K221(2 axis/2-phase)

    Features

    ● EtherCAT Max. 100Mbps transfer rate

    ● 2-axis closed-loop stepper drive

    ● K221 : Current 1.8A / axis

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-75 x W-140 x H-47 mm

  • SVR-M111 Motionnet PCIe PC-Based
    SVR-M111 Motionnet PCIe PC-Based

    SVR-M111(1 axis/2-phase)

    Features

    ● Max. 20Mbps transfer rate

    ● 1-axis closed-loop control

    ● M111 : Current 2.8A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

  • SVR-M112 Motionnet PCIe PC-Based
    SVR-M112 Motionnet PCIe PC-Based

    SVR-M112(1 axis/2-phase)

    Features

    ● Max. 20Mbps transfer rate

    ● 1-axis closed-loop control

    ● M112 : Current 4.2A

    ● Bi-polar current driving system

    ● Resolution : 500~50,000 pulse / revolution

    ● Encoder feedback

    ● DIP switch for address setting

    ● Dimensions : L-74 x W-140 x H-31 mm

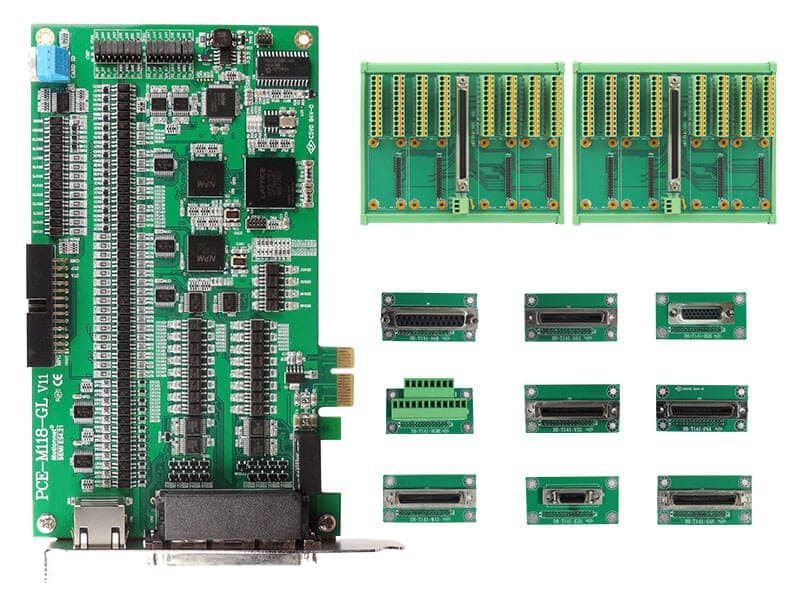

  • c7

    Terminal Board Combo

  • TPC-7000 IO Module EtherCAT Motionnet PCIe PC-Based

    TPC-7000-AC/AM

    TPC-7000-AC/AM

    Features

    ● Robust and Flexible Fanless Embedded System

    ● Support Intel® CoreTM i7 / i5 / i3 Desktop Processor

    ● Support DDR4-2133 SO-DIMM, Max. 32GB

    ● Support storage with SSD/HDD and mSATA

    ● Support RAID 0/1

    ● Support Watchdog, iSmart, and iAMT

    ● Support DVI-I and DisplayPort

    ● Support Mini PCIe, PCI and PCIe x1

    ● Intel® I211-AT and Intel® I219-LM Gigabit Ethernet port

    ● 1 x RS-232 and 1 x RS-232 / 422 / 485

    ● Digital with 4 DI and 4 DO (Option)
