Showing 91–99 of 252 results

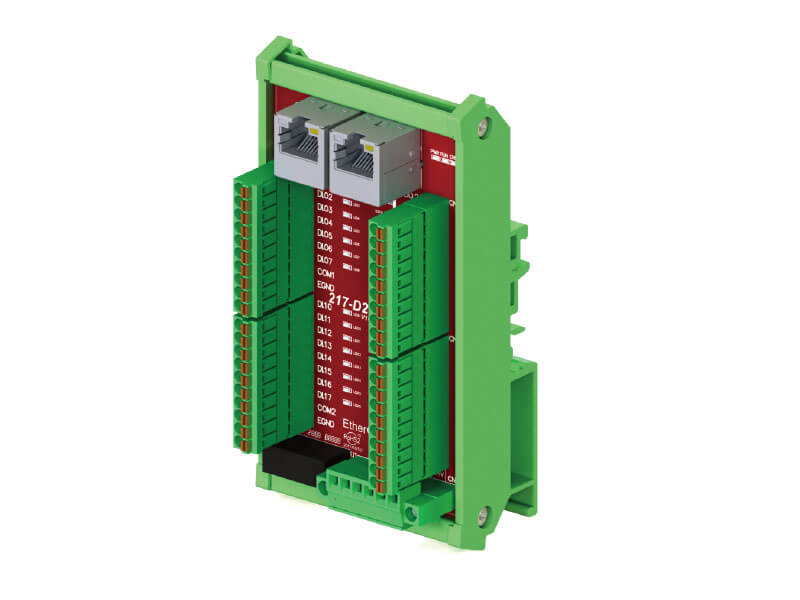

217-D222-SN
Features:
● EtherCAT 16-Ch. DI and 16-Ch. DO slave module
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● Supports EtherCAT Distributed Clock (DC) mode
● DIN rail mounting (L-122 x W-66 x H-52 mm)
4-Axis-Motionnet Master Card Combo(Terminal Board/Daughter Boards)
PCE-M114-GL more information
● PCI Express x1 compliant
● On-board 4-axis motion control with Max. 6.5MHz pulse output rate
● 1 Rings of Motionnet® Master
● Max. 64 Motionnet® slave modules support
● Linear, circular, helical and continuous interpolation
● High speed position latch function
● Compare output FIFO x 2
● Manual pulse generator
● General purpose isolated I/O: 3 DI and 4 DO

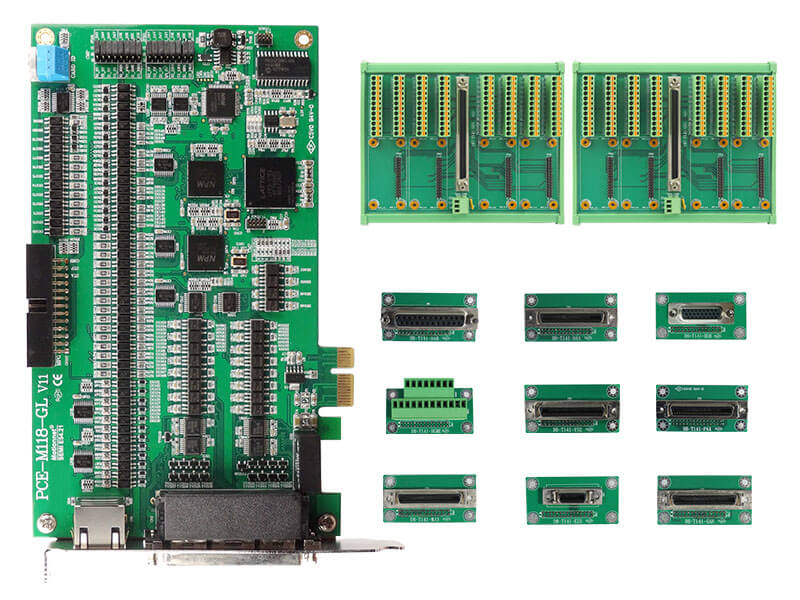

8-Axis-Motion Card Combo(Terminal Board/Daughter Boards)

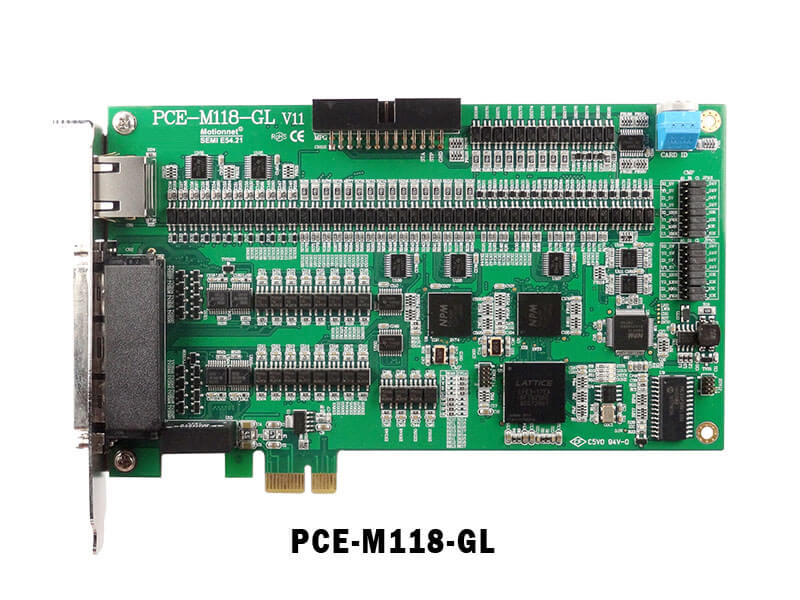

PCE-M118-GL
provides servo drive/motor dedicated digital I/O interfaces,
for example,Motionnet ALM, INP, and ERC and also machine dedicated digital I/O interfaces,
for example, ORG, PEL, and EMG. These dedicated I/O signals guarantee the functionality via hardware and therefore reduces the loading of software.
Advanced Mnet Master + SmartPAC Combo
● PCI Express x1 compliant
● Max. 20Mbps transfer rate
● 2 Rings of Motionnet Master
● Max. 128 Motionnet slave modules supported
● Easy installation with RJ45 phone jack and LED diagnostic
● Compare output FIFO x 2
● High Speed FIFO LATCH x 4
● General purpose isolated I/O: 4 DI and 4 DO

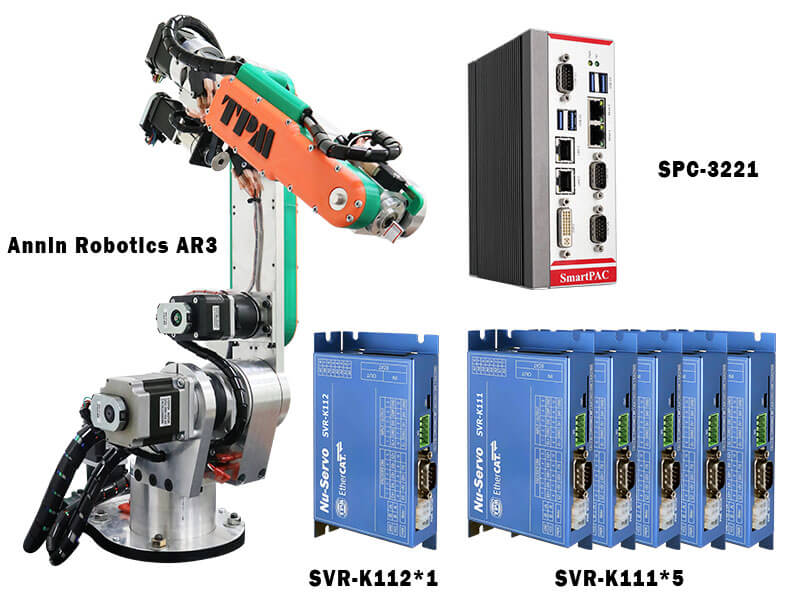

● Hardware IC with unique IDAR3 Robot – EtherCAT Controller
Motor and arm are not included
Specifications
SmartPAC SPC-3221
EtherCAT Closed-Loop Drive SVR-K111*5 units
EtherCAT Closed-Loop Drive SVR-K112*1 unit
