MyLink Tool - Axis Module Screen Explanation
The primary function of MyLink in the Axis Module
The main functions of MyLink in the Axis Module are:
- Confirmation of module IDs and communication testing
- Verification of relevant IO logic in the axis module and servo motor driver (stepper motor driver), including ALM, INP, EZ, ERC, etc
- Confirmation of pulse output and input interfaces in the axis module and servo motor driver (stepper motor driver) – Pulse output/Pulse input (Encoder)
- Verification of relevant IO logic on the mechanical equipment, such as EL+/-, ORG, EMG
- After completing all settings, confirmation of motor operation through single-axis module control
– Move: Relative / Absolute / Continuous / Home / Home search…
– Compare Trigger

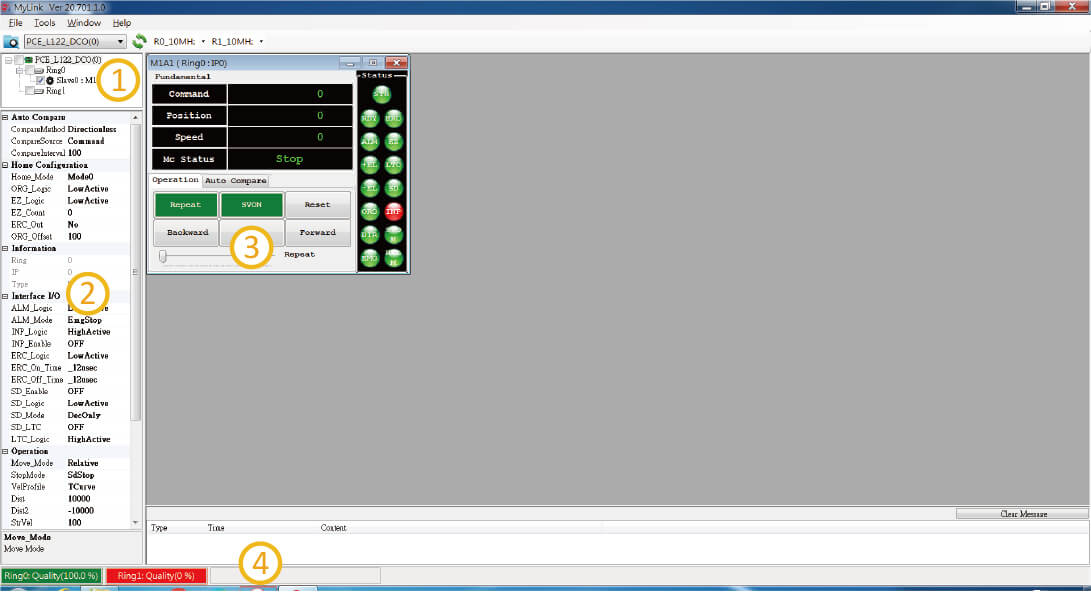

Screen Explanation:
1.Display Area
2.Module Configuration Area
3.Operation and Status Display Area
4.Error Message Display Area

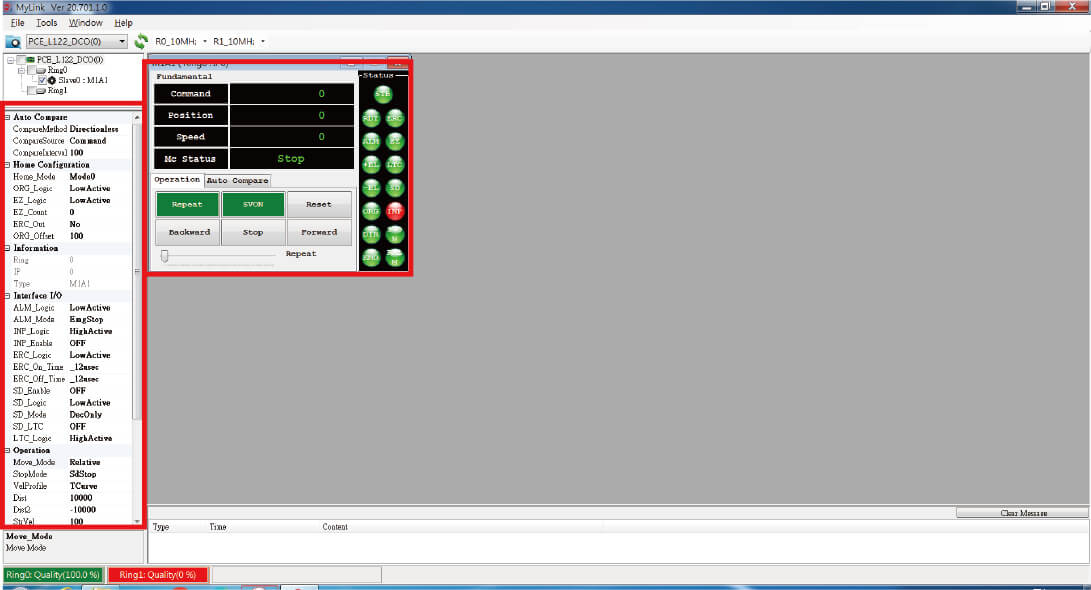

MyLink Axis Module Screen Explanation - Display Area

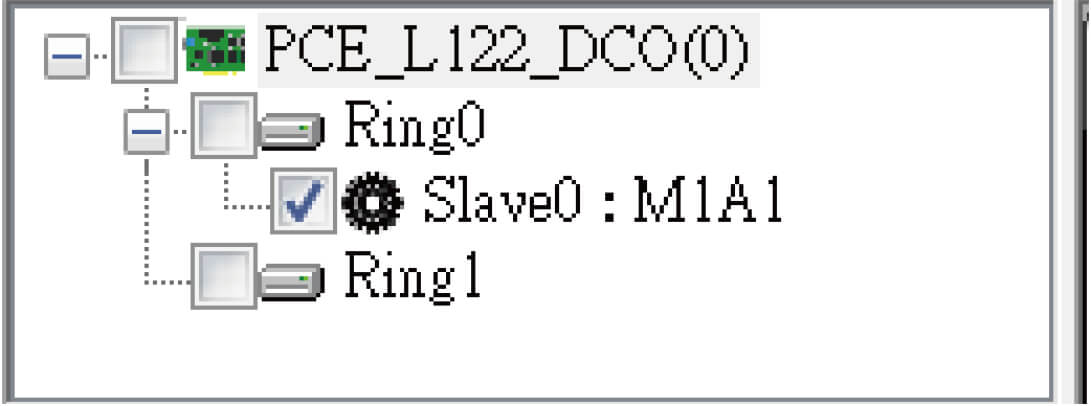

Display Area: Main Screen
- Display card type and functions
- Show the module list under Ring0/Ring1
- Check the module you want to operate
- Configure the single-axis group
Display Area: Main Screen
- Display card type and functions
- Show the module list under Ring0/Ring1
- Check the module you want to operate
– Display axis operation screen
– Axis module settings
- Configure single-axis group
Display Area: Main Screen
- Display card type and functions
- Show the module list under Ring0/Ring1
- Check the module you want to operate

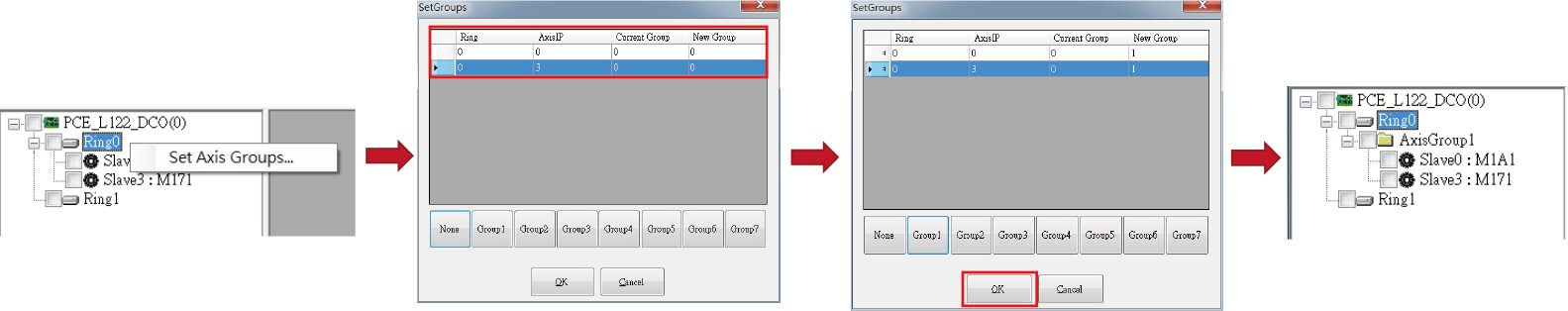

- Setting up Single-Axis Groups: (Axis modules must be in the same Ring)
– Step1 : Click on Ring0 or Ring1 in the display area
– Step2: Right-click, and the option “Set Axis Groups…” will appear. Click to enter the setup screen
– Step3 : Click on the individual axis to select the group
– Step4 : After assigning, click OK

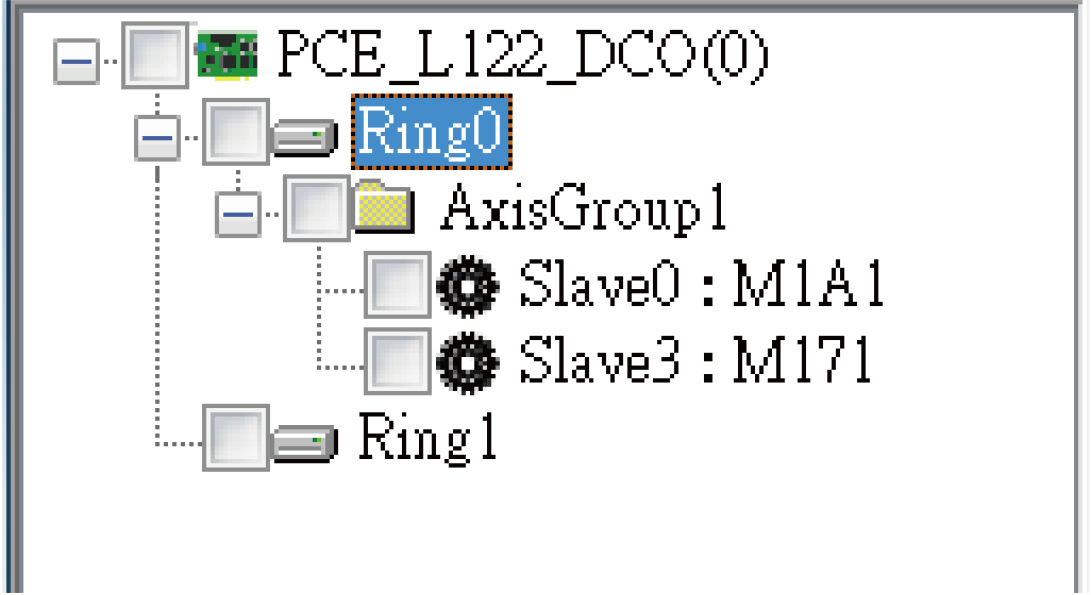

– Step5 : After completing the setup, you will see “AxisGroupx table selected.”
MyLink Axis Module Screen Explanation - Module Configuration Area

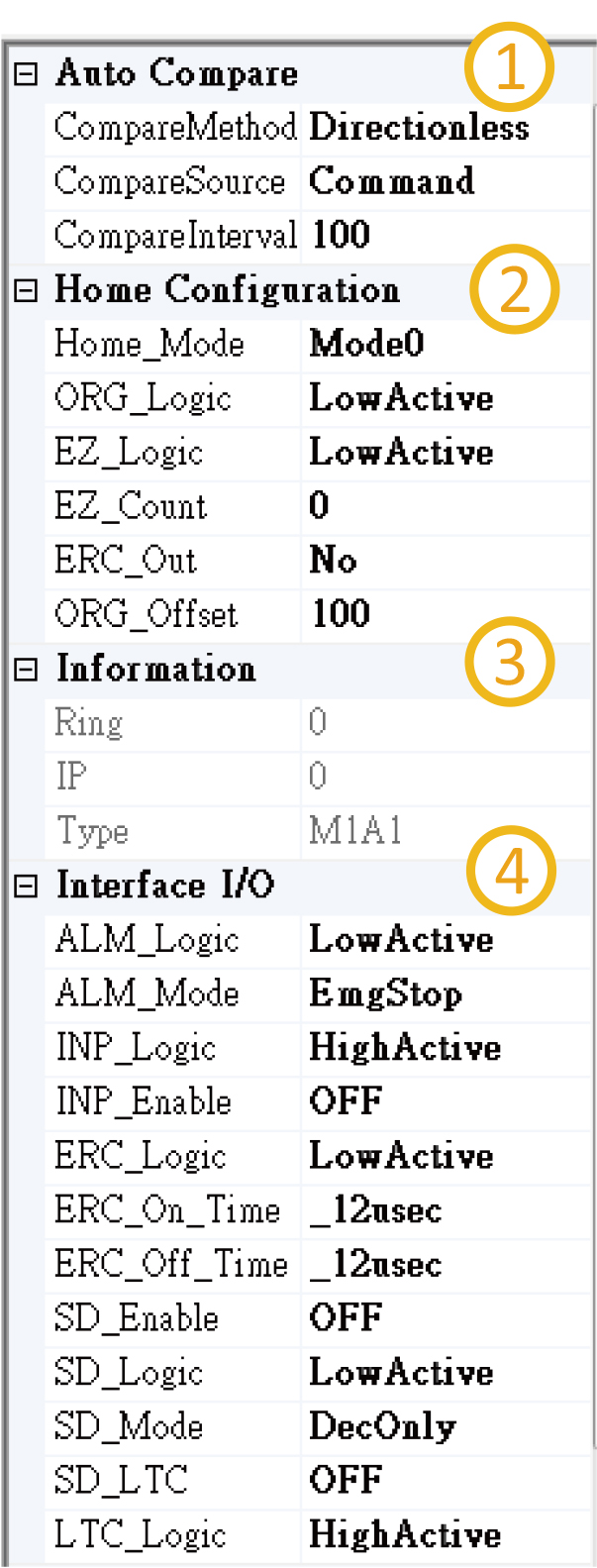

Module Configuration Area: There are a total of 6 groups
1.Auto Compare:
2.Home Configuration:
3.Information
4.Interface I/O

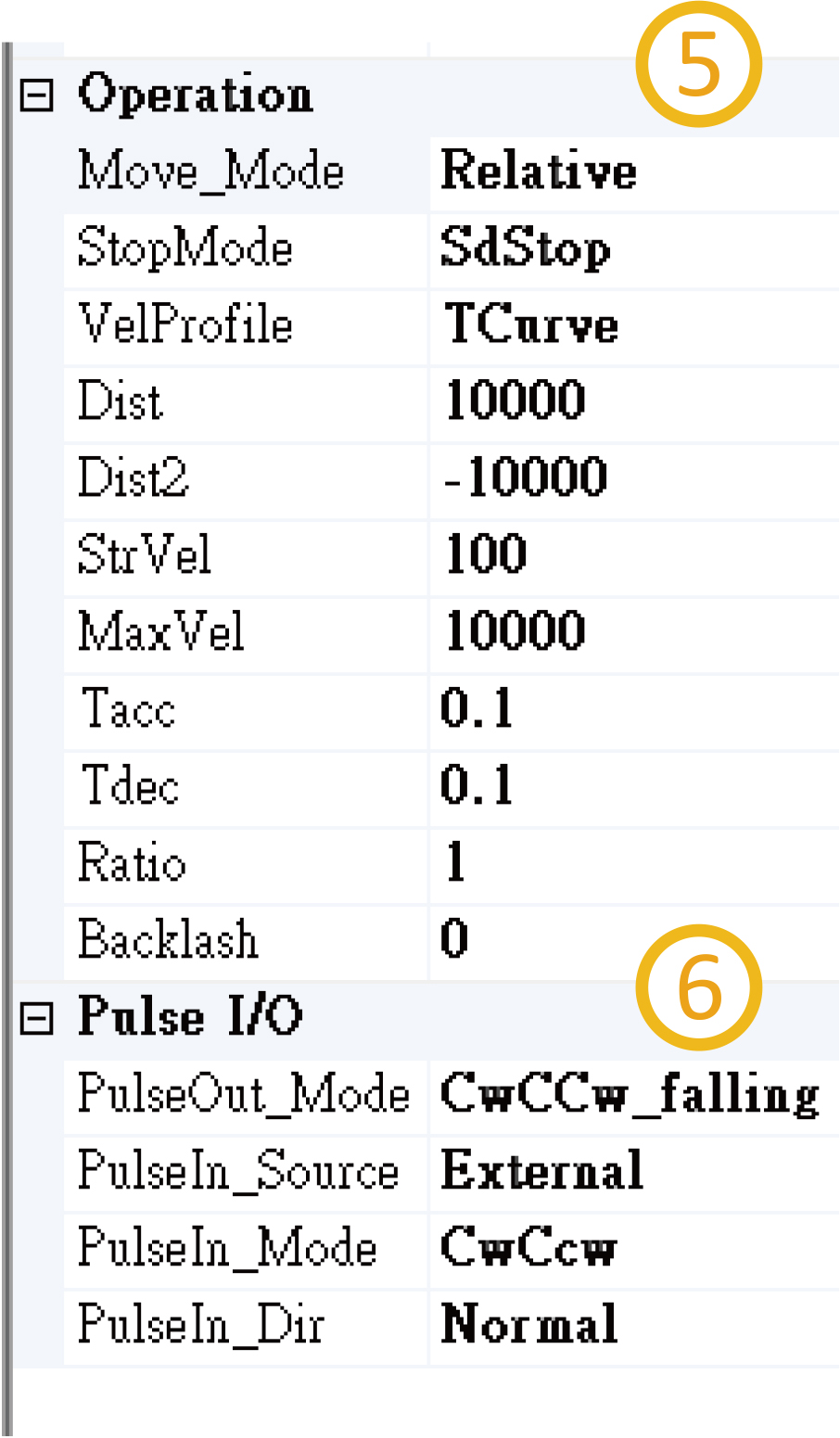

5.Operation
6.Pulse I/O
1.Auto Compare: Mainly sets the corresponding parameters for the Compare trigger

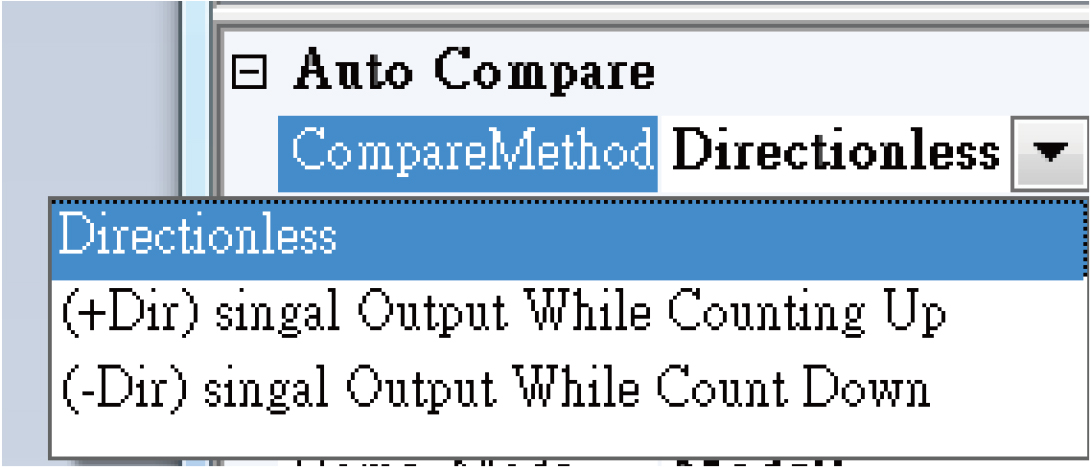

- CompareMethod:
– Comparison Method
– Directionless: No directionality
– (Dir+)Signal Output While Counting Up positive direction
– (Dir-)Signal Output While Counting Down negative direction

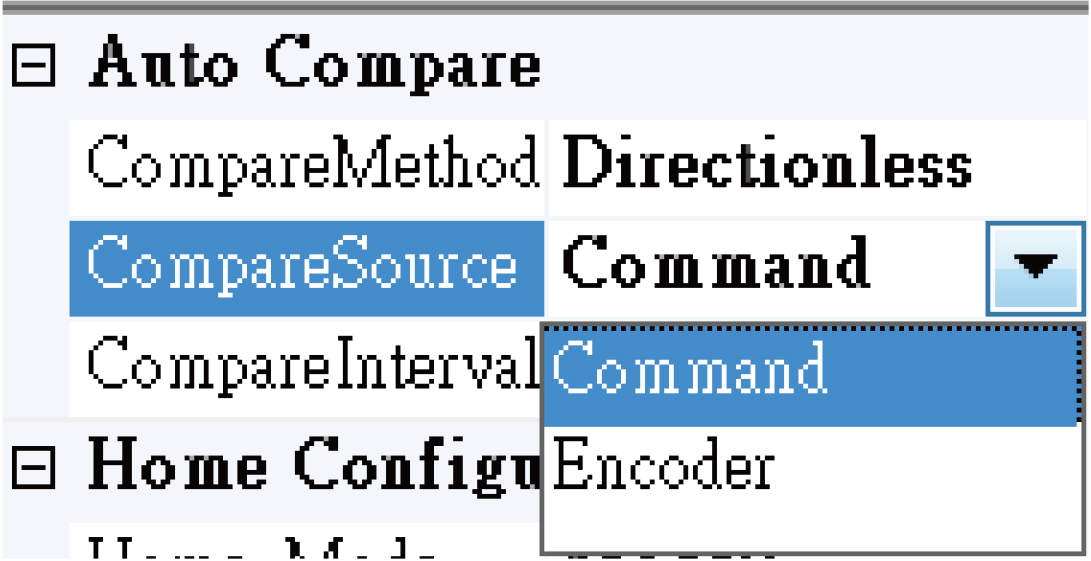

- CompareSource:
– Compare Source Setting
– Command
– Encoder

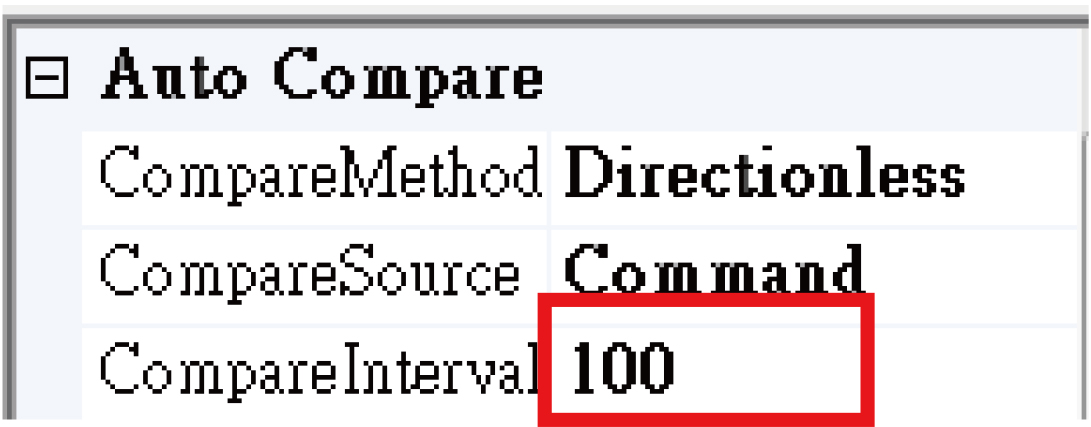

- CompareInterval:
– Equidistant Interval Value
– Setting Range1~32767
2.Home Configuration: Mainly setting the corresponding parameters for executing the Home operation

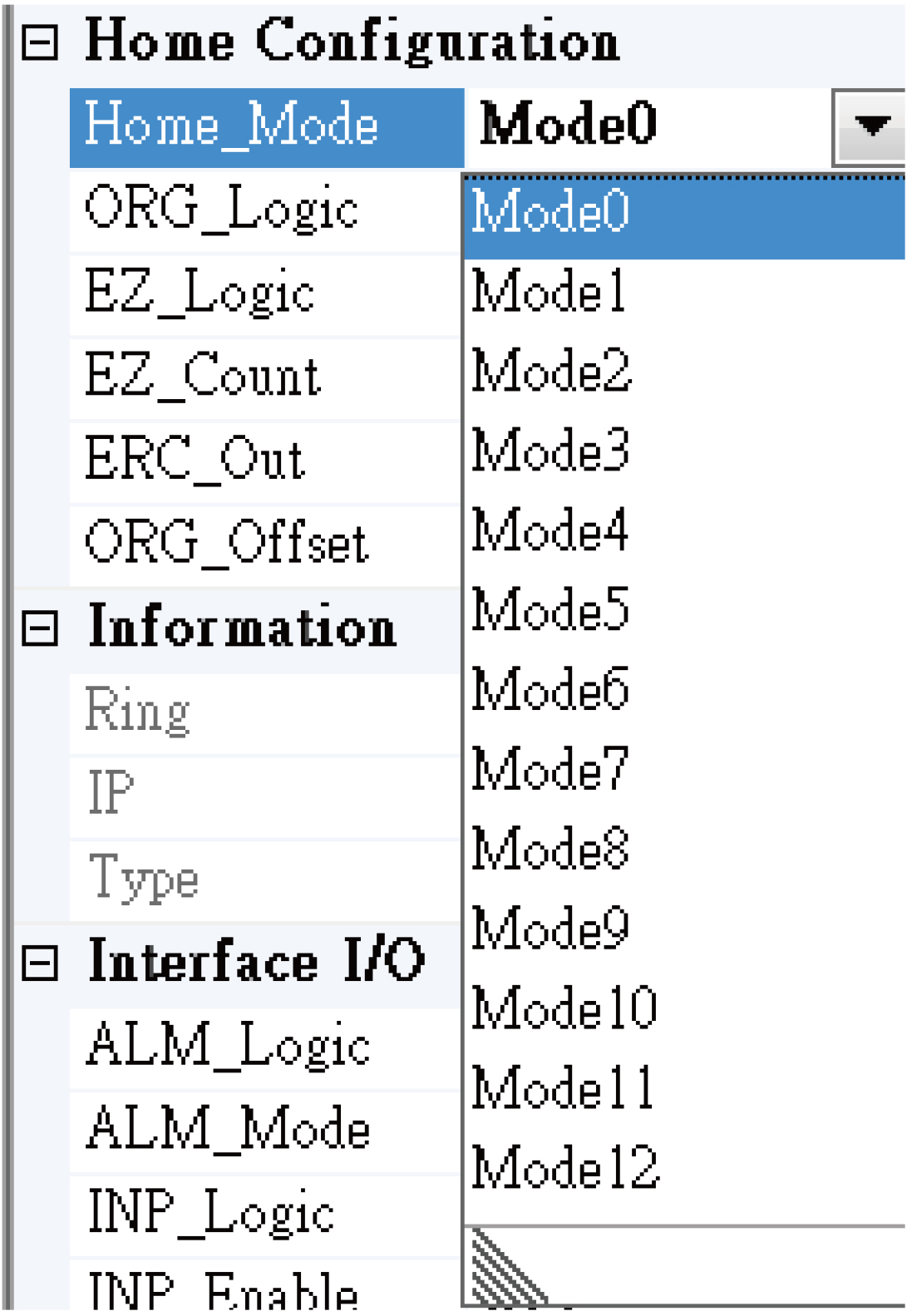

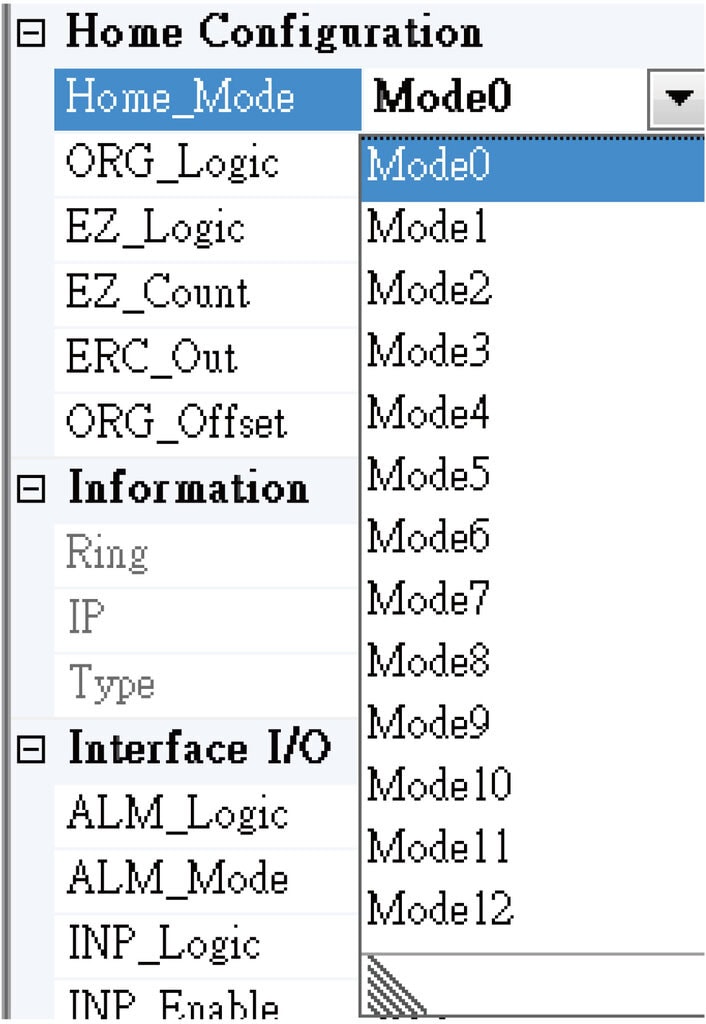

- Home Mode: Choose the method of executing Home
– Supported modes include: Mode 0 to Mode 12, a total of 13, please refer to the illustrated explanation in section 3.7.4.1 of the software manual

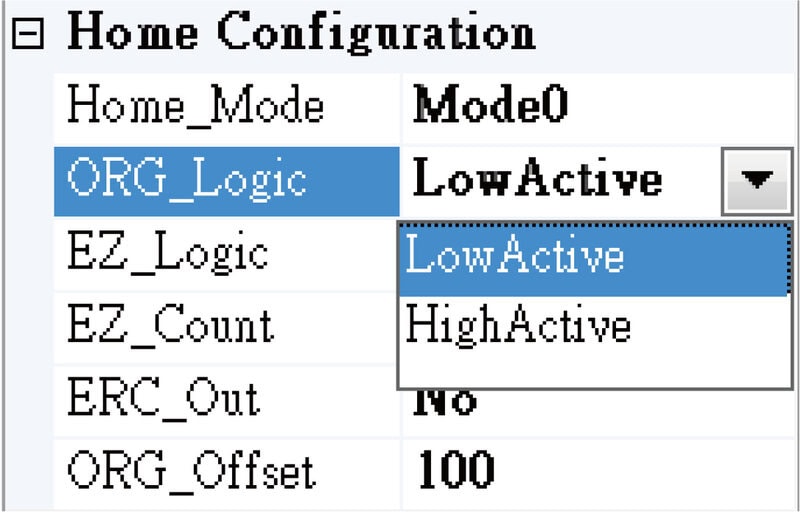

- ORG_Logic: Main Home Signal
– Set ORG logic to be consistent with hardware logic
– LowActive / HighActive

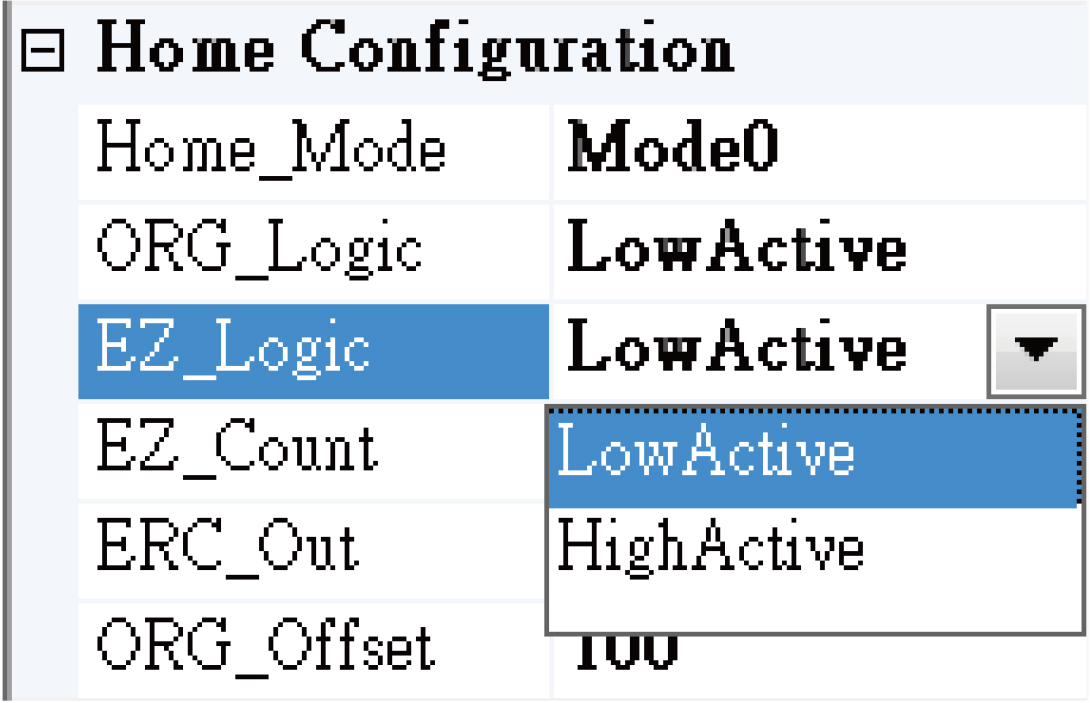

- EZ_Logic:
– Set EZ logic to be consistent with hardware logic
– Home mode: 2~5,7,8,10~12are used for Home

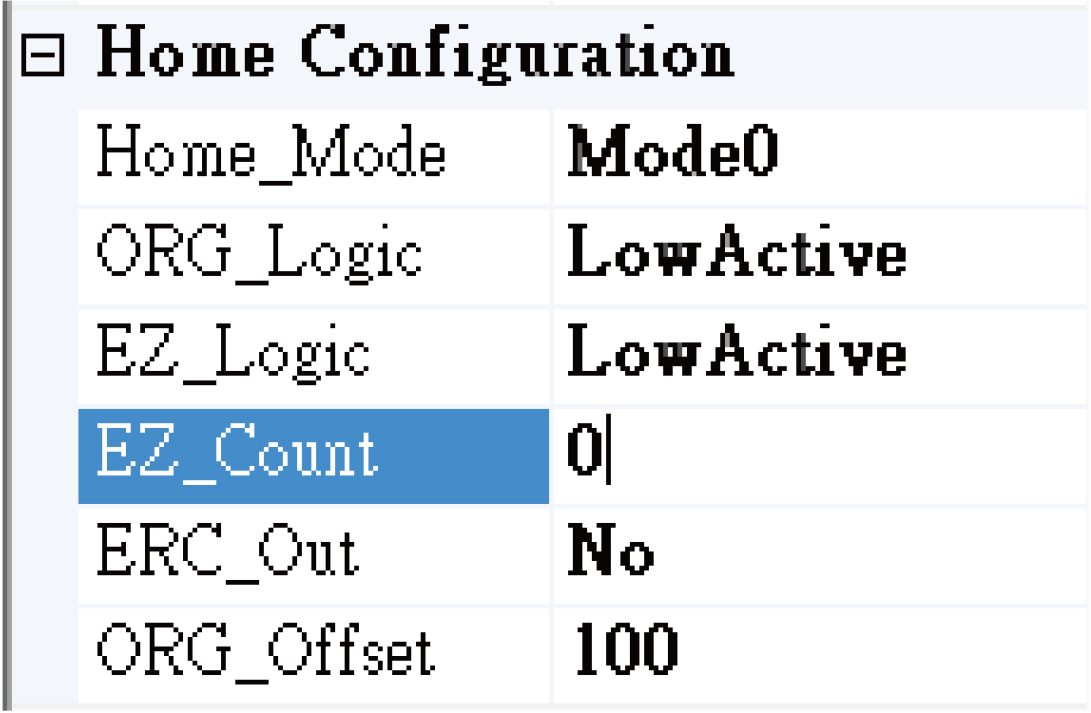

- EZ_Count:
– On a servo motor, there is one EZ signal per revolution, while optical rulers typically have only one
– Home mode: : 2~5,7,8,10~12 ,use this signal for homing accordingly

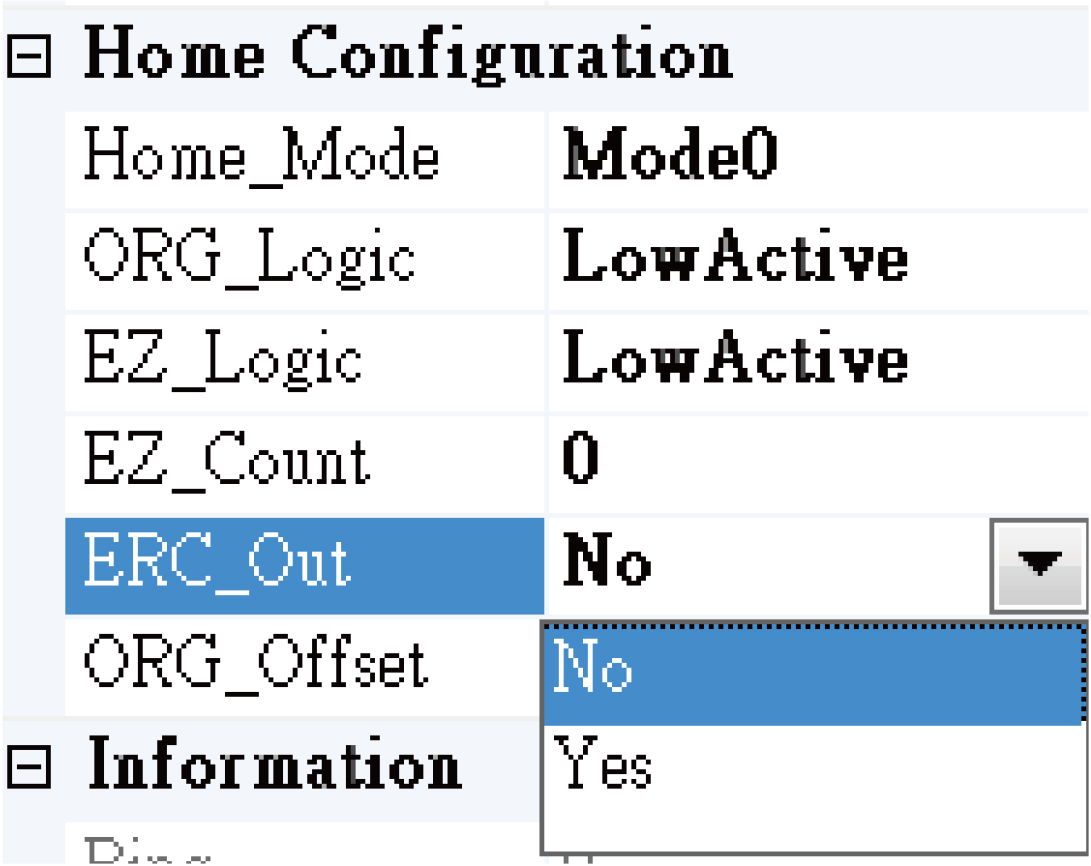

- ERC_Out:
– Mainly used to select whether to output the ERC signal to the servo drive when homing is completed

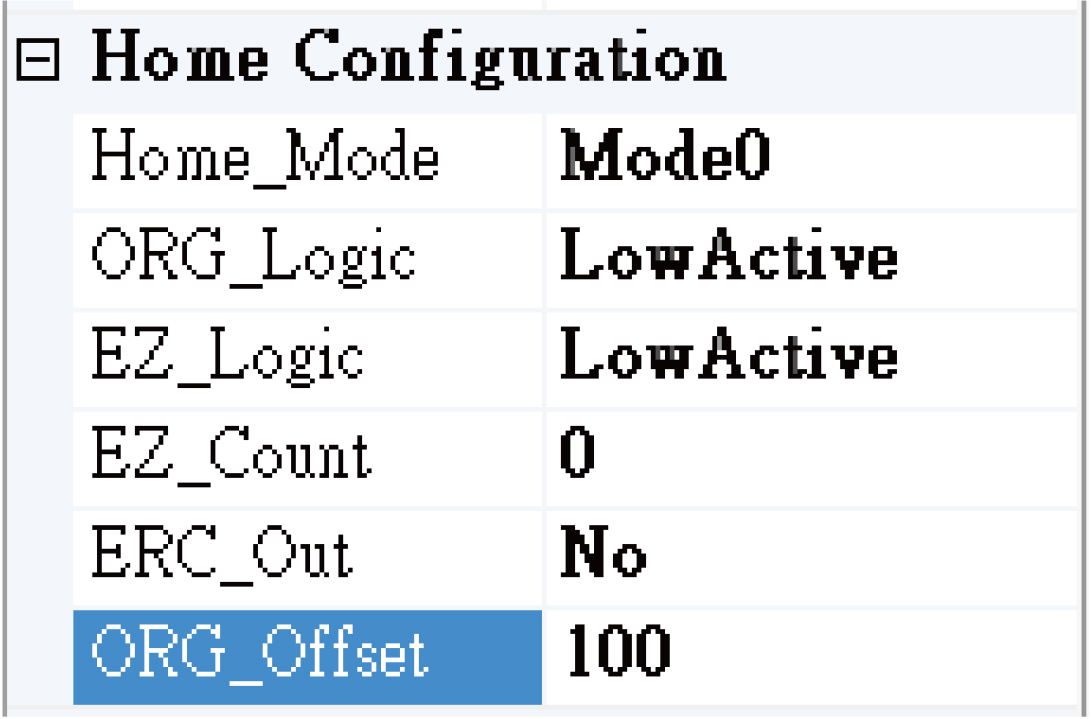

- ORG_Offset:

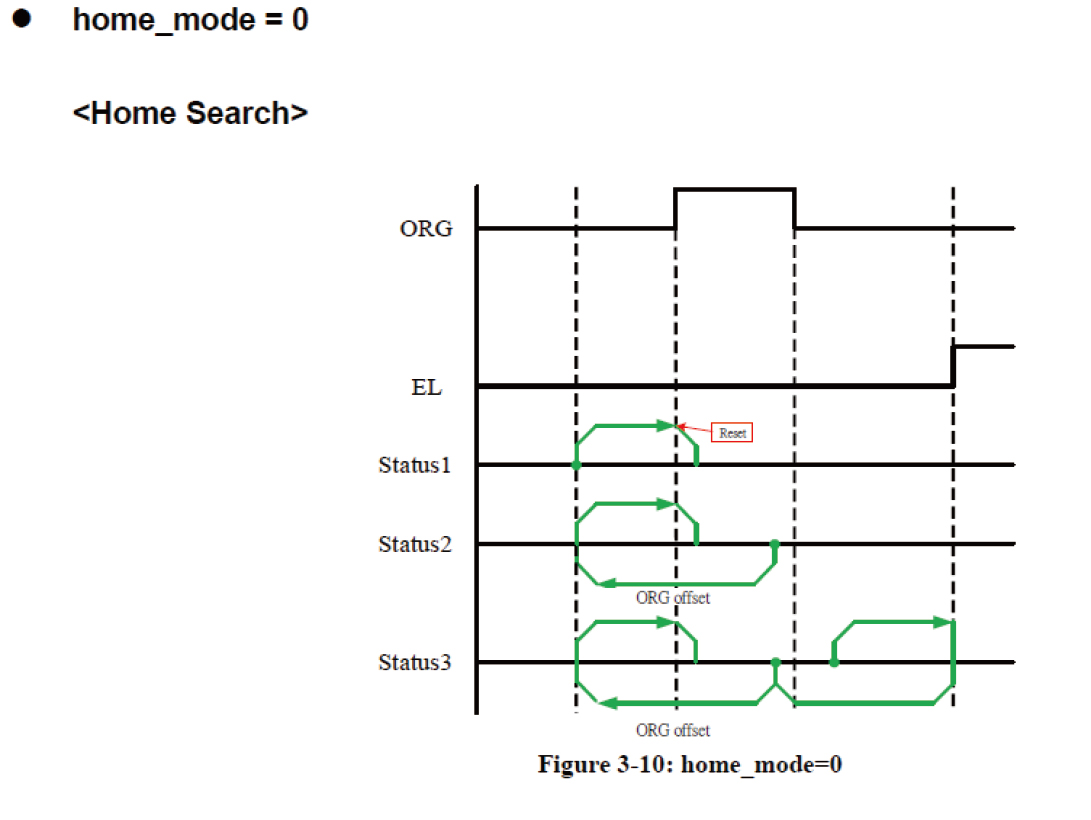

– Home_Mode:Values that need to be set when executing the Home search function for modes 0 to 5, 9 to 12. Please refer to the illustration in Section 3.7.4 of the manual. An example is shown below:

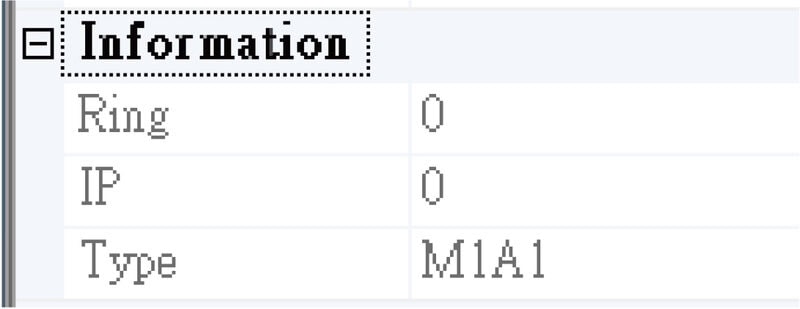

3.Information
- Primarily used to display information about the operating axis
- The content includes Ring, IP, and axis model type
