Showing 31–40 of 82 results
-
207-D540-PX(Available Soon)(64-CH.DI)
Features
● 64-Ch. DI/O slave module with pluggable terminal
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-102 x H-104 mm)
-
207-D542-NNS(64-CH.DI/32-CH.DO)
● 64-Ch. DI and 32-Ch. DO with NPN type
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-123 x H-104 mm) -
207-D542-PPS(64-CH.DI/32-CH.DO)
● 64-Ch. DI and 32-Ch. DO with PNP type
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-123 x H-104 mm) -
207-D560-NX(Available Soon)(96-CH.DI)
Features
● 96-Ch. DI/O slave module with pluggable terminal
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-123 x H-104 mm)
-
207-D560-PX(Available Soon)(96-CH.DI)
Features
● 96-Ch. DI/O slave module with pluggable terminal
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-122 x H-104 mm)
-
207-M3A2-GEN(2 axis)
Features
● EtherCAT 2-axis pulse train output module
● Distributed Clock 0.5 / 1 / 2 / 4 ms
● CiA402 device profile support CSP, PP, Home
● Pulse output mode support OUT/DIR, CW/CCW and 4xA/B Phase
● Pulse output mode frequency Max. 6.5MHz
● Encoder input frequency Max. 6.5MHz
● 2-ch Trigger output frequency Max. 100KHz
-
217-D222-SN
Features:
● EtherCAT 16-Ch. DI and 16-Ch. DO slave module
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● Supports EtherCAT Distributed Clock (DC) mode
● DIN rail mounting (L-122 x W-66 x H-52 mm) -
ECPW
Features:
- EtherCAT master powered by INtime® RTOS.
- Support CoE (CANOpen over EtherCAT)
- EtherCAT Distributed Clocks up to 0.5ms
- Control up to 60 axes
- Access up 10,000 digital I/O points.
- Simulation mode for offline test
- Visual Studio C/C++ and C# development
- Compliant Windows 7 32/64 and Window 10
- ECATNavi utility tool for diagnosis
- At least 4-core CPU
- Intel i210/i211 NIC
-
ECPWG
Features:
- Control up to 10 axes
- Various run modes
-Helix Path
-Circular Path
-Rotary
- Hardware DIO binding
-WAIT statement
- User-defined G/M commends
- Extended
-G120-Spindle widing
– G121-Needle widing
– G122-Flyer fork widing (reserved)
- UI Tool to simulate the G code script
– INTime Supported Versions
- WindowsOS: win 7 and win 10
- Network card (chip) Intel I210 and Intel I211
- At least 4-core CPU
-

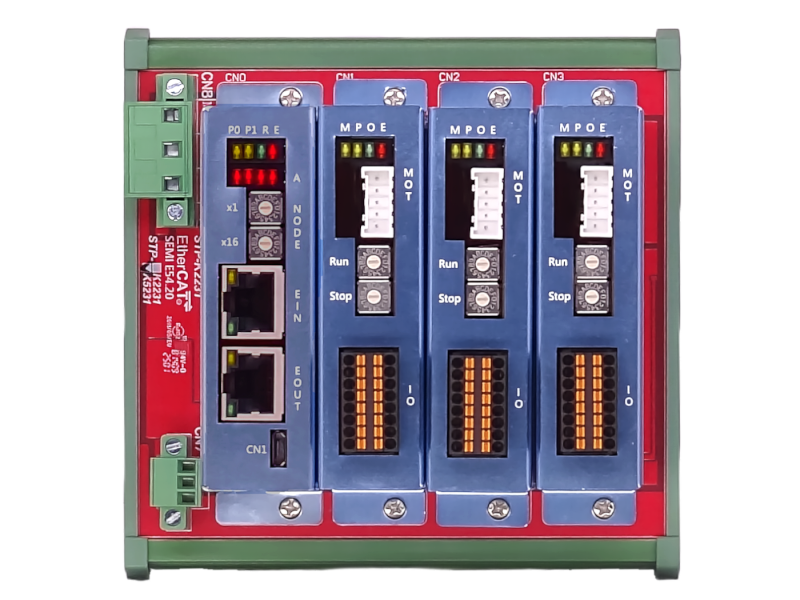

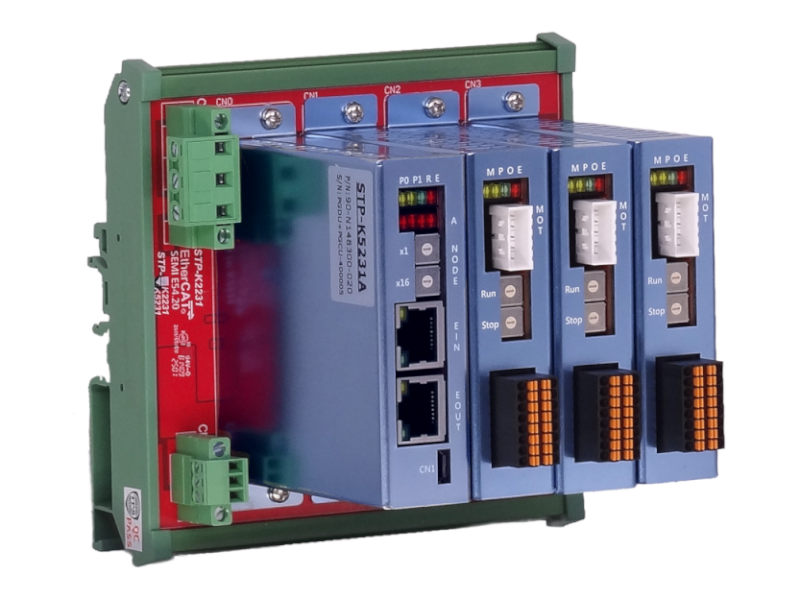

EtherCAT 5-Phase 3-Axis Stepper Drive – Position Compensation
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
It supports both external encoder feedback signals from an optical linear encoder and signals from an encoder embedded into a stepper motor offering significant flexibility and enhanced performance for precision motion control.
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 1.4A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 3-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
