Showing 28–36 of 70 results
107-D604-XN(32-CH.DO)
Features
● 32-Ch. Motionnet® Short Circuit Protection Digital I/O slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● Pluggable terminal block with spring plug connectors
● DIN rail mounting (L-122 x W-66 x H-104 mm)
107-M2A2-GEN(2 axis)
Features
● 2-axis Motion Controller
● Max. 20Mbps transfer rate
● Ultra compact, a 2-axis integrated controller
● Max. 6.5MHz pulse output rate
● 28-bit counter for incremental encoder
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Easy installation with RJ45 phone jack and LED diagnostic
● DIN rail mounting (L-122 x W-66 x H-104 mm)
108-A204(4-CH.AO)
Features
● 4-Ch. Analog Output Motionnet® slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● Connectors with screw terminal block
● DIN rail mounting (L-77 x W-124 x H-34 mm)108-A322(8-CH.AI/4-CH.AO)
Features
● 8-Ch. Analog Input and 4-Ch. Analog Output Motionnet® slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● Connectors with screw terminal block
● DIN rail mounting (L-77 x W-124 x H-32 mm)
108-C142T
Features
● 4-Ch. Encoder Motionnet® slave modules
● 2-Ch. Position compare and trigger output
● Support 3 Trigger modes : Fixed-Interval, Table Array and Toggle Array
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)
108-C144(4-CH)
Features
● 4-Ch. Encoder Motionnet® slave modules
● 4-Ch. Position compare and trigger output
● Support 2 Trigger modes : Fixed-Interval and Table Array
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)
108-C144F
Features
● 4-Ch. Encoder Motionnet® slave modules
● 4-Ch. Position compare and trigger output
● Support Trigger mode : Fixed-Interval
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)
108-G180
● Max. 20Mbps transfer rate
● DCON transfers to Motionnet®
● Easy installation with RJ45 phone jack and LED diagnosis
● DIN rail mounting (L-77 x W-124 x H-38 mm)

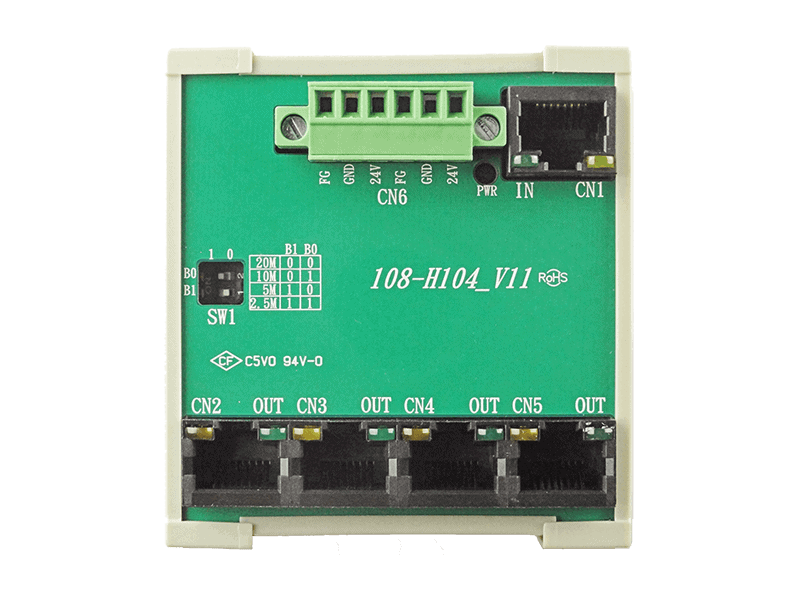

108-H104(4-CH)
Features
● 4-Ch. Hub Motionnet® slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● DIN rail mounting (L-77 x W-69 x H-32 mm)
