Showing 81–90 of 245 results
-
207-D542-PPS
● 64-Ch. DI and 32-Ch. DO with PNP type
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic
● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-123 x H-104 mm)
-
207-D560-NX
Features
● 96-Ch. DI/O slave module with pluggable terminal
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-123 x H-104 mm)
-
207-D560-PX
Features
● 96-Ch. DI/O slave module with pluggable terminal
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic● Pluggable terminal block with spring plug connectors
● DIP switch for address setting
● DIN rail mounting (L-122 x W-122 x H-104 mm)
-

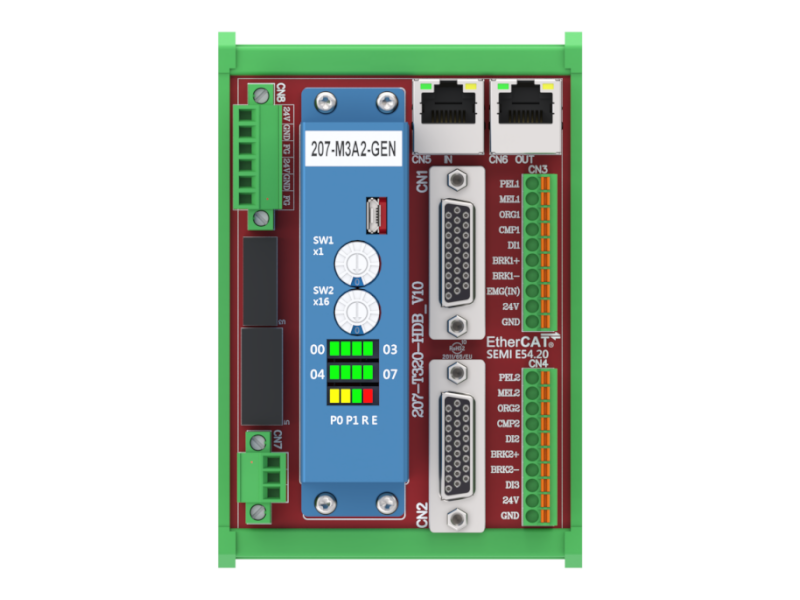

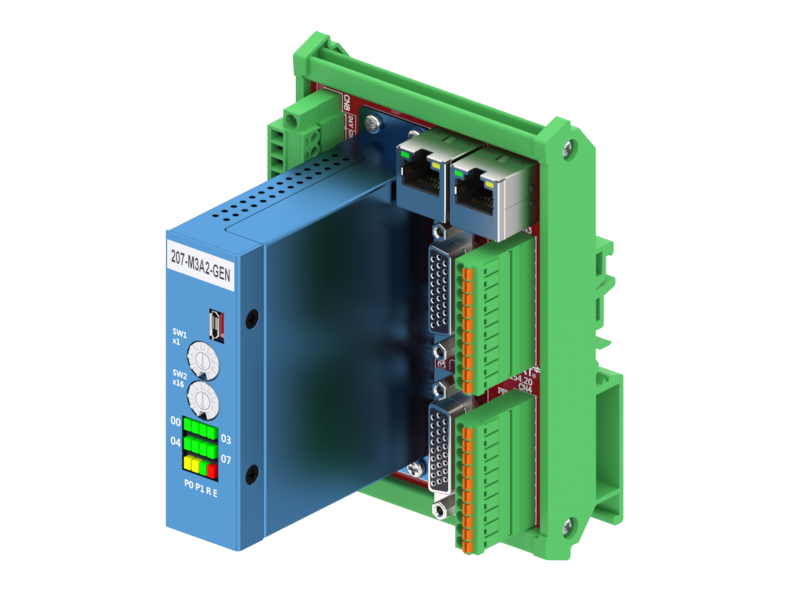

207-M3A2-GEN(2 axis)
Features
● EtherCAT 2-axis pulse train output module
● Distributed Clock 0.5 / 1 / 2 / 4 ms
● CiA402 device profile support CSP, PP, Home
● Pulse output mode support OUT/DIR, CW/CCW and 4xA/B Phase
● Pulse output mode frequency Max. 6.5MHz
● Encoder input frequency Max. 6.5MHz
● 2-ch Trigger output frequency Max. 100KHz
-
4-Axis -Motion Card Combo (Terminal Board/Daughter Boards)
Select options This product has multiple variants. The options may be chosen on the product page -
4-Axis Controller Combo
Select options This product has multiple variants. The options may be chosen on the product page -
4-Axis-Motion Card Combo
Select options This product has multiple variants. The options may be chosen on the product page -
4-Axis-Motionnet Master Card Combo(Terminal Board/Daughter Boards)
PCE-M114-GL more information
● PCI Express x1 compliant
● On-board 4-axis motion control with Max. 6.5MHz pulse output rate
● 1 Rings of Motionnet® Master
● Max. 64 Motionnet® slave modules support
● Linear, circular, helical and continuous interpolation
● High speed position latch function
● Compare output FIFO x 2
● Manual pulse generator
● General purpose isolated I/O: 3 DI and 4 DO
Select options This product has multiple variants. The options may be chosen on the product page -
8-Axis-Motion Card Combo
Select options This product has multiple variants. The options may be chosen on the product page -
8-Axis-Motion Card Combo(Terminal Board/Daughter Boards)
PCE-M118-GL
provides servo drive/motor dedicated digital I/O interfaces,
for example,Motionnet ALM, INP, and ERC and also machine dedicated digital I/O interfaces,
for example, ORG, PEL, and EMG. These dedicated I/O signals guarantee the functionality via hardware and therefore reduces the loading of software.
Select options This product has multiple variants. The options may be chosen on the product page
