EtherCAT 5-phase micro-step drives, engineered to redefine precision and efficiency in motion control applications.
Showing all 10 results
-
STP-K5241A
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
The EtherCAT 5-phase 4-Axis Stepper Drive supports external and embedded encoder feedback, delivering precise, reliable, and real-time synchronized motion. Compact and high-performance, it’s ideal for multi-axis industrial automation applications.
– Position Compensation Available-
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 1.4A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 4-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
-
STP-K5231A
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
It supports both external encoder feedback signals from an optical linear encoder and signals from an encoder embedded into a stepper motor offering significant flexibility and enhanced performance for precision motion control.
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 1.4A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 3-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
-

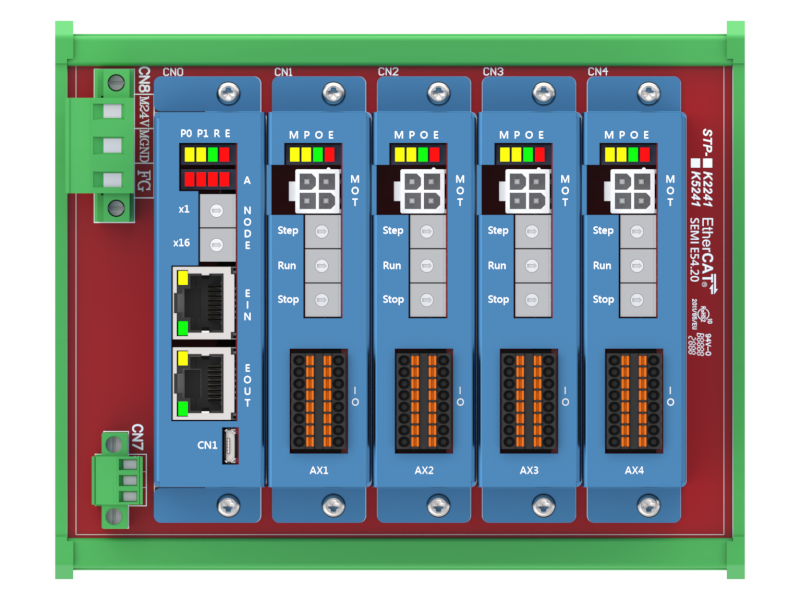

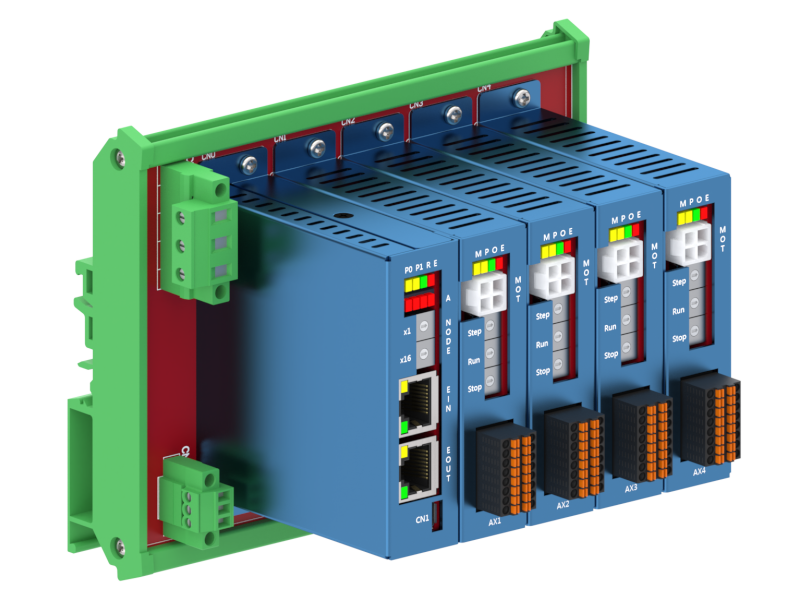

STP-K2241A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT 2-Phase Bipolar Constant-current Drive
- 4-Axis micro-Stepper Driver; 200 ~ 25,600 PPR
- Driving Current Max 1.5A per Axis
- CiA402 device profile: CSP, PP, Home
- DIP switch for address setting
- Support Encoder feedback: EA, EB and EZ
- DIN rail mounting
- Dimensions : L-122 x W-151 x H-115 mm
-

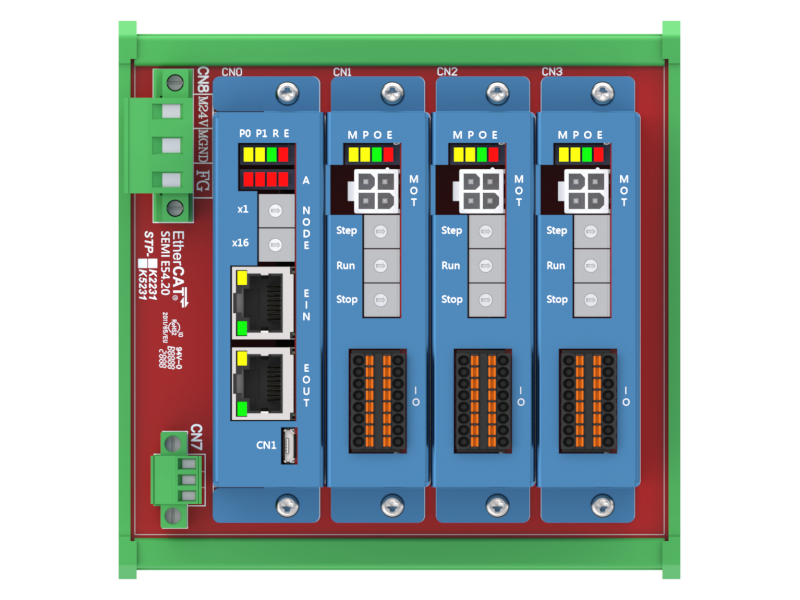

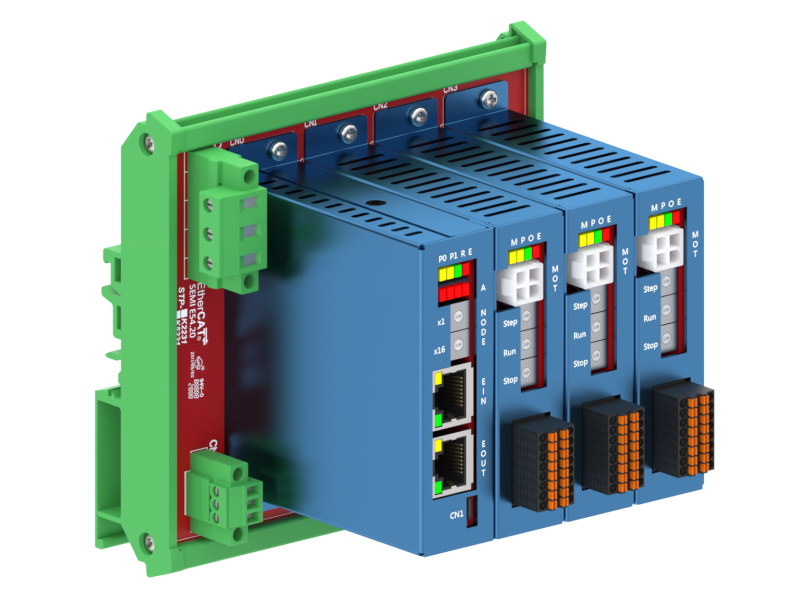

STP-K2231A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT 2-Phase Bipolar Constant-current Drive
- 3-Axes Microstepping Drive
- Resolution 200 ~ 25,600 PPR
- Driving Current Max 1.5A per Axis
- CiA402 device profile: CSP, PP, Home
- DIP switch for address setting
- Support Encoder feedback: EA, EB, and EZ
- DIN rail mounting
- Dimensions : L-122 x W-123 x H-115 mm
-
STP-K221A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT CiA402 device profile
- 2-Axis 2-phase micro stepper drive
- Constant-current Driving System
- Max Driving Current 2.1A
- Support Micro stepping, 200 400 ~ 51,200 PPR
- Support 1.8° and 0.9°step angle
- Support Encoder feedback
- DIP switch for address setting
- Dimensions : L-75 x W-140 x H-44 mm
-
STP-K510A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 0.75A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 1-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
-
STP-K511A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 1.4A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 1-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
-
STP-K512A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT CiA402 device profile
- 5-Phase Constant-current drive, Driving current Max 2.8A
- Encoder feedback interface: EA, EB, and EZ
- Full loop control for position correction
- 1-Axis Microstepping drive, Resolution 500 ~ 400,000 PPR
- Support 0.36° and 0.72°step angle
- DIP switch for address setting
- DIN rail mounting
-
STP-K111A
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
- EtherCAT CiA402 device profile
- 1-Axis 2-phase micro stepper drive
- STP-K111A Max. Current 2.8A
- Constant-current Driving System
- Support Micro stepping, 200 400 ~ 51,200 PPR
- Support 1.8° and 0.9°step angle
- Support Encoder feedback
- DIP switch for address setting
- Dimensions : L-75 x W-140 x H-30 mm
-
STP-K112A (2-Phase / 1-Axis)
Features:
Compatible with most leading masters like ACS, Beckhoff, Omron, Keyence, Panasonic and many more.
EtherCAT CiA402 device profile
- 1-Axis 2-phase micro stepper drive
- STP-K112A Max. Current 4.2A
- Constant-current Driving System
- Support Micro stepping, 200 400 ~ 51,200 PPR
- Support 1.8° and 0.9°step angle
- Support Encoder feedback
- DIP switch for address setting
- Dimensions : L-75 x W-140 x H-30 mm
