Showing all 9 results
102-M1C1-GEN(1 axis)
Features
● 1-axis Motion Controller Motionnet® slave modules wo. encoder
● Max. 20Mbps transfer rate
● Max. 6.5MHz, 1-axis pulse output rate
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Change speed / position on-the-fly
● General purpose isolated I/O : 2 DI and 2 DO
● Easy installation with RJ45 phone jack and LED diagnostic
● DIN rail mounting (L-77 x W-69 x H-38 mm)
102-M1x1 Series(1 axis)
Features
● 1-Axis Motion Connector
● Max. 20Mbps transfer rate
● Max. 6.5MHz pulse output rate
● 28-bit counter for incremental encoder
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Change speed / position on–the-fly
● Easy installation for servo or stepping motor driver
● Dimensions: L-79 x W-53 x H-17mm

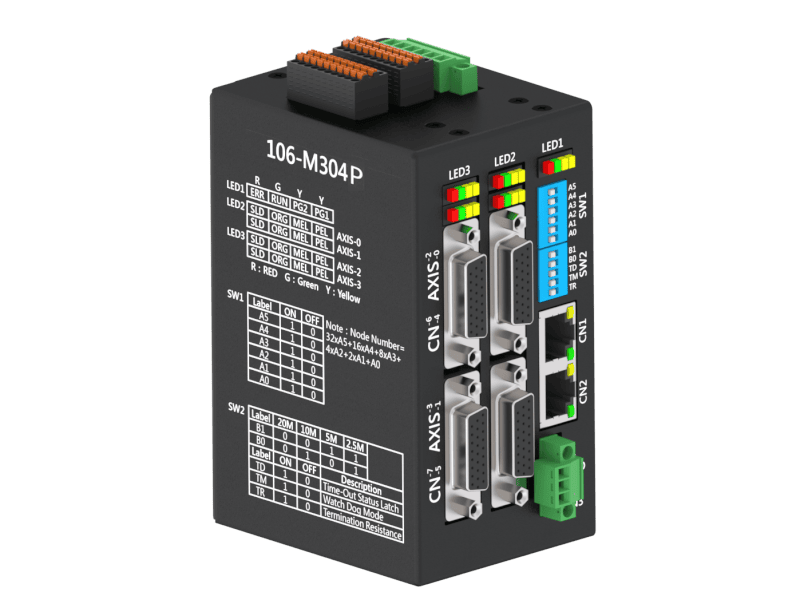

106-M304P
Features
● 4-axis Motion Controller Motionnet® slave modules
● Max. 6.5MHz, 4-axis pulse output rate
● 28-bit counter for incremental encoder
● Linear, circular and continuous interpolation
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Change speed / position on-the-fly
● Position compare and trigger output
● Compare output FIFO x 2
● Simultaneously start / stop on multiple motion control modules
● Easy installation with RJ45 phone jack and LED diagnostic
● Dimensions: L-120 x W-64 x H-80mm

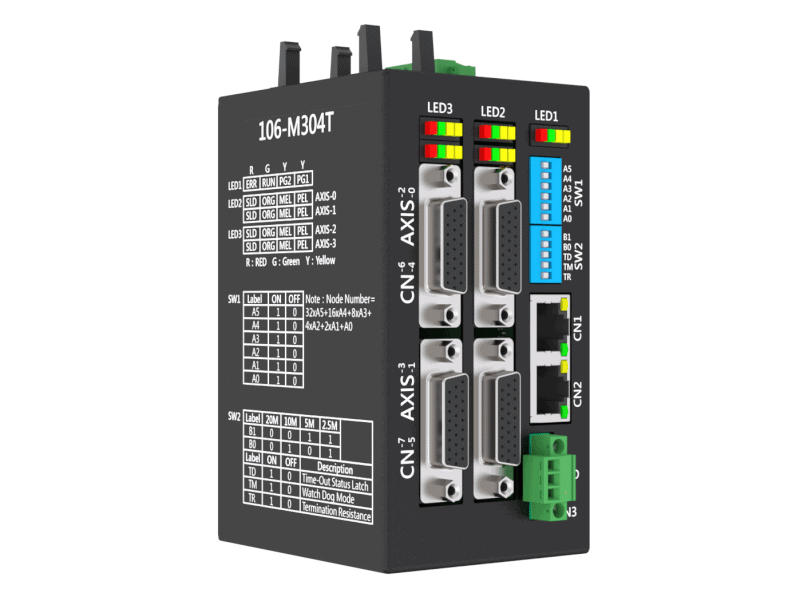

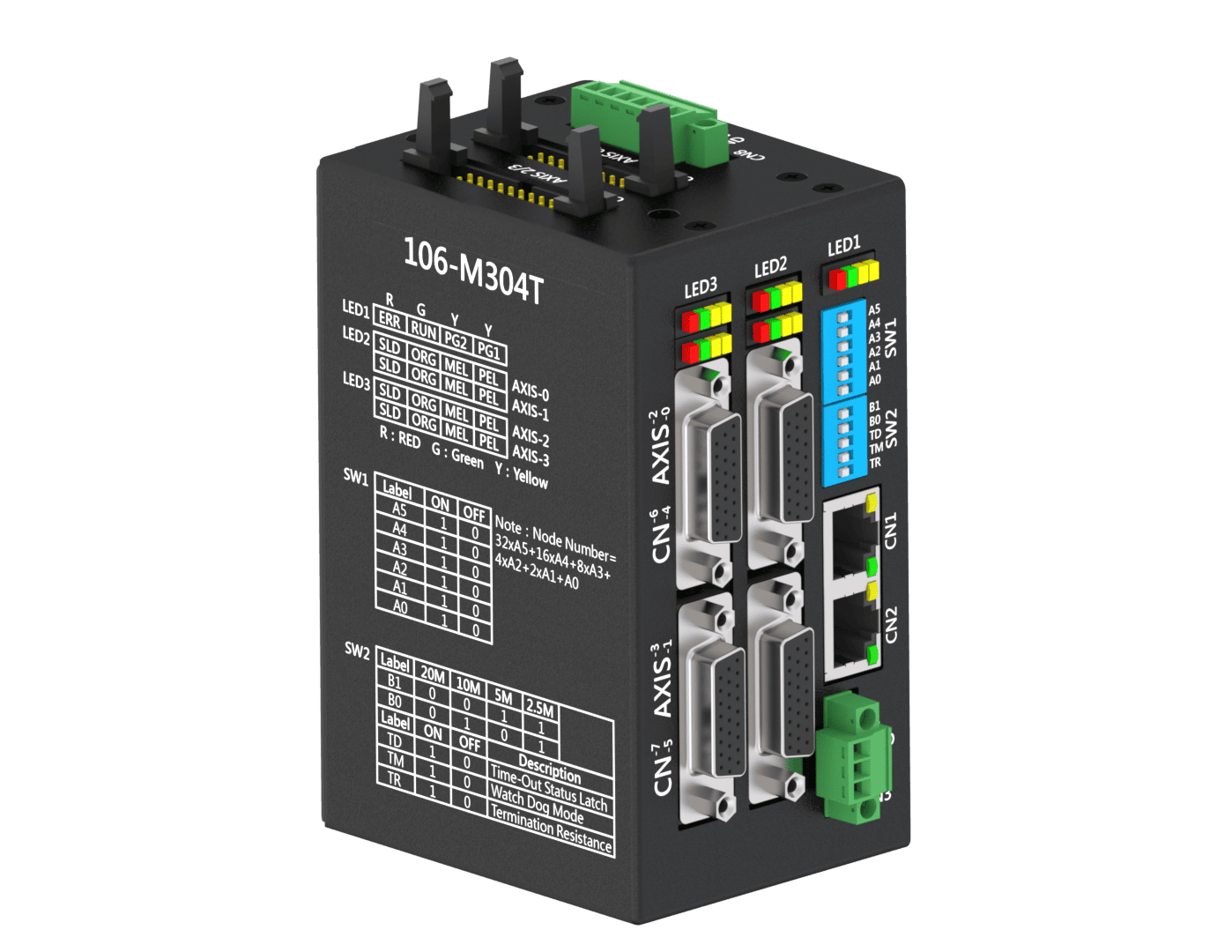

106-M304T(4 axis)
Features
● 4-axis Motion Controller Motionnet® slave modules
● Max. 6.5MHz, 4-axis pulse output rate
● 28-bit counter for incremental encoder
● Linear, circular and continuous interpolation
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Change speed / position on-the-fly
● Position compare and trigger output
● Compare output FIFO x 2
● Simultaneously start / stop on multiple motion control modules
● Easy installation with RJ45 phone jack and LED diagnostic
● Dimensions: L-120 x W-64 x H-80mm
107-M2A2-GEN(2 axis)
Features
● 2-axis Motion Controller
● Max. 20Mbps transfer rate
● Ultra compact, a 2-axis integrated controller
● Max. 6.5MHz pulse output rate
● 28-bit counter for incremental encoder
● Programmable acceleration and deceleration time
● T-curve and S-curve velocity profiles support
● Easy installation with RJ45 phone jack and LED diagnostic
● DIN rail mounting (L-122 x W-66 x H-104 mm)
108-C142T
Features
● 4-Ch. Encoder Motionnet® slave modules
● 2-Ch. Position compare and trigger output
● Support 3 Trigger modes : Fixed-Interval, Table Array and Toggle Array
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)

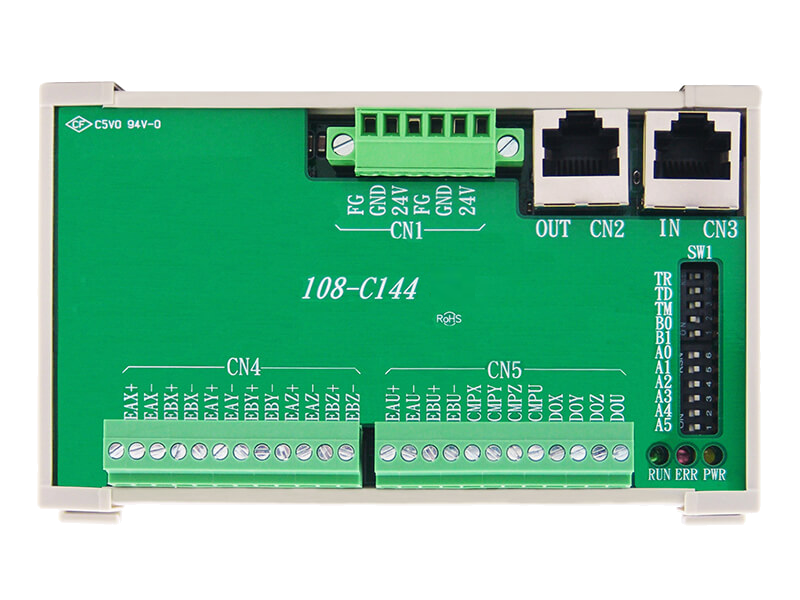

108-C144(4-CH)
Features
● 4-Ch. Encoder Motionnet® slave modules
● 4-Ch. Position compare and trigger output
● Support 2 Trigger modes : Fixed-Interval and Table Array
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)

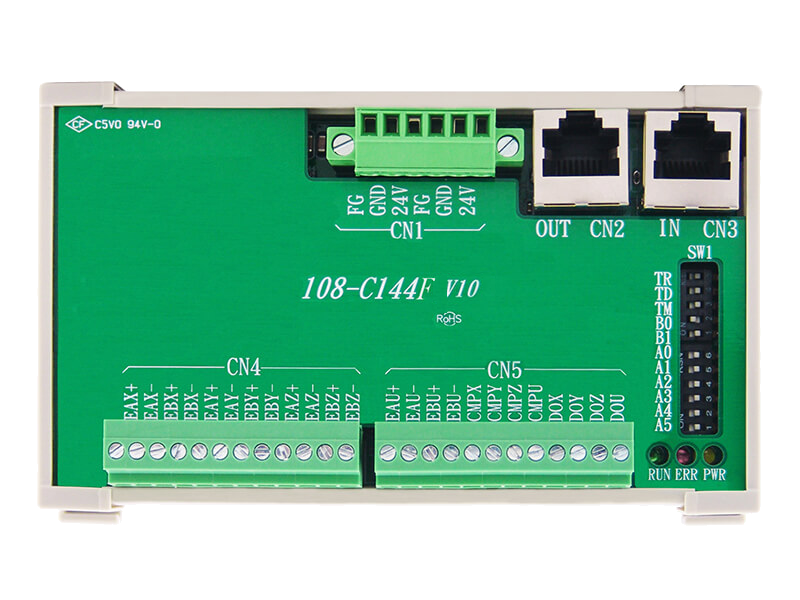

108-C144F
Features
● 4-Ch. Encoder Motionnet® slave modules
● 4-Ch. Position compare and trigger output
● Support Trigger mode : Fixed-Interval
● Programmable Trigger Out Pulse Width
● Max. 20Mbps transfer rate
● DIN rail mounting (L-77 x W-124 x H-34 mm)

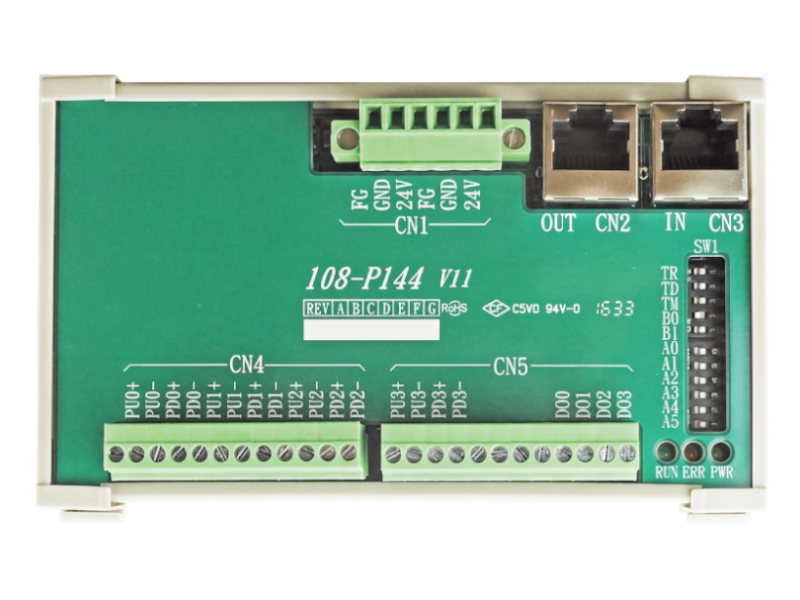

108-P144(4-CH)
Features
● 4-Ch. up / down 32-bit Counter Motionnet® slave modules
● Max. 20Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnosis
● Programmable input filter
● DIN rail mounting (L-77 x W-124 x H-34 mm)
